TSCF C-Face Flange Torque Transducer and 9850 Torque Transducer and Load Cell Indicator System

Wired and Non-Rotating C-Face Flange Torque Transducer with a Digital Multi-Channel Indicator

The TSCF C-Face Flange Torque Transducer measures reaction torque in stationary test-bench applications and sends its mV/V signal to the 9850 Torque Transducer and Load Cell Indicator. The 9850 excites, conditions, converts, and displays the measurement while supporting peak monitoring, analog outputs, and software-based data logging. Together, they provide a complete solution for accurately monitoring and recording static torque.

  • TSCF C-Face Flange Torque Transducer:
    • Capacities from 288.5 lbf-in to 885 lbf-in (10 Nm to 100 Nm)
    • Wired and non-rotating)
    • Flange to Flange Mounting
  • 9850 Torque Transducer and Load Cell Indicator:
    • AC carrier excitation
    • 7800 samples/sec/channel
    • Works with torque transducers, load cells, encoders, LVDTs and speed pickups
    • 5 or 7-pole (based on input type) 200 Hz antialias filter plus 4-pole digital filters
    • Auto-scaled 5V and/or 10V analog outputs
    • RS232, RS422, RS485 serial communication
    • Torque, speed, and HP display
    • Max/min capture
    • Two-line backlit LCD display

Applications:

  • Electric Motor and Gearmotor Test Stands
  • Dynamometers and Brake Testing Systems
  • Gearbox Efficiency and Performance Testing
  • Pump, Compressor, and Actuator Testing
  • Valve Operating-torque Measurement

Applications:

  • Robotic Joint and Servo System Testing
  • Assembly-Tool and Fastening-system Verification
  • Industrial Machinery Monitoring
  • Research and Development Test Benches
  • Quality-control and Endurance Testing

System Components

TSCF C-Face Flange Torque Transducer9850 Torque Transducer and Load Cell IndicatorCable AssembliesMating ConnectorsSystem Level Calibration
Tscf 2

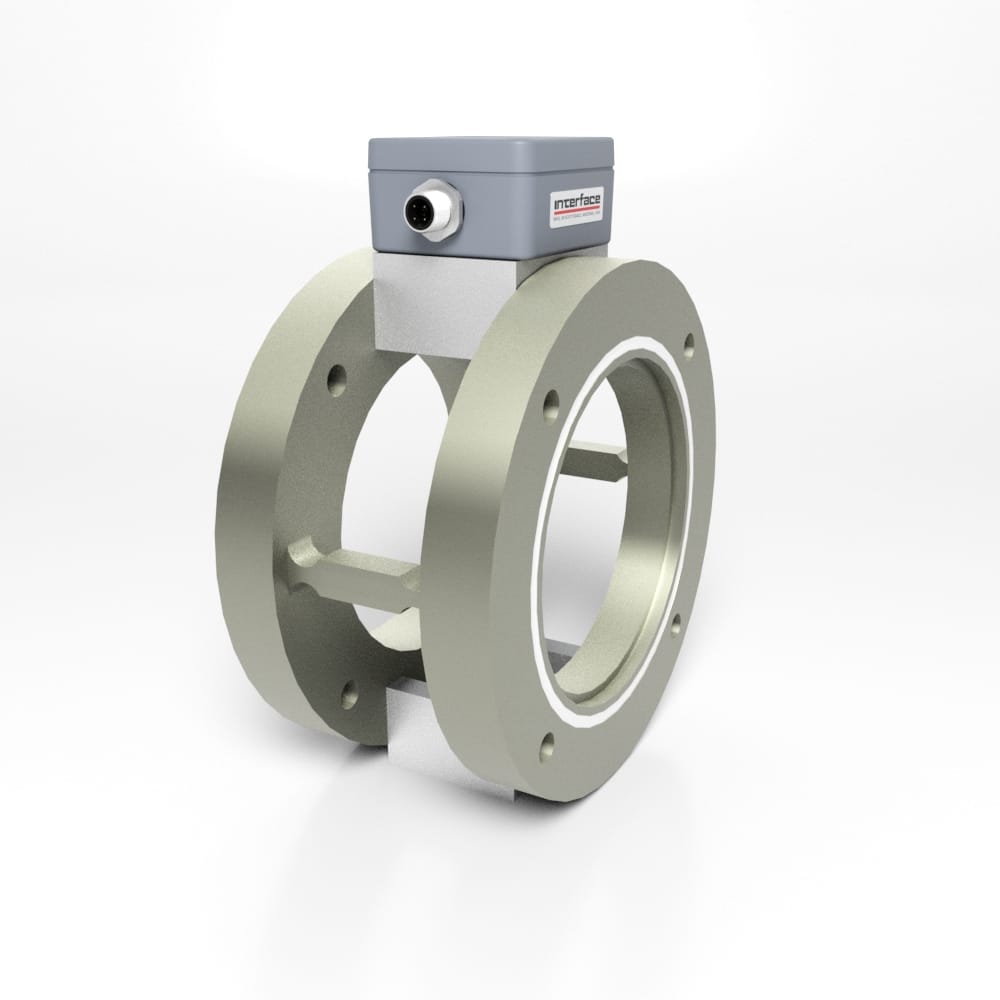

TSCF C-Face Flange Torque Transducer

Wired and non-rotating

88.5 lbf-in to 885 lbf-in
10 Nm to 100 Nm

The TSCF is used in test benches for measuring the reaction torque (Wired and non-rotating).

The torque transducer consists of two flanges, which are connected with each other via 4 measuring spokes. The two flanges have the same bolt circle of 5.8 in (149 mm). The pilots are designed as an external and internal collar with Ø 4.5 in (Ø 114.3 mm).

Due to the large diameter of the torque transducer TSCF and the arrangement of the measuring spokes in the axial direction, this torque transducer can also absorb bending moments up to 1770 lbf-in (200 Nm), which are caused by the dead weight of the drive motor.

The connection is made via a terminal box with M12 connectors.

Optionally, an integral measuring amplifier can be provided instead of the terminal box so that the transducer has a voltage output of +/-10V.

Features & Benefits

  • Capacities from 288.5 lbf-in to 885 lbf-in (10 Nm to 100 Nm)
  • Wired and non-rotating)
  • Flange to Flange Mounting
9850

9850 Torque Transducer and Load Cell Indicator

Digital, Multi-Channel

Model 9850’s modular design allows the use of 7 different types of input cards for 2 channels. Available channels include AC mV/V for use with Rotary Transformer type torque sensors, DC mV/V, ±5V or ±10V, 4-20mA, Frequency (speed), Encoder (angle) and LVDT position sensors. A 3rd math channel allows display of calculate values such as horsepower, unit conversion, peak or valley, etc. The dual ±10V analog outputs are assignable to any of the three channels. This product has a 7800 Hz sample rate, allows true peak monitoring. Model 9850 Includes software for graphical data display and logging.

Features & Benefits

  • AC carrier excitation
  • 7800 samples/sec/channel
  • Works with torque transducers, load cells, encoders, LVDTs and speed pickups
  • 5 or 7-pole (based on input type) 200 Hz antialias filter plus 4-pole digital filters
  • Auto-scaled 5V and/or 10V analog outputs
  • RS232, RS422, RS485 serial communication
  • Torque, speed, and HP display
  • Max/min capture
  • Two-line backlit LCD display
Cable Assemblies 3

Cable Assemblies

Accessories

Interface accessory products are made from the highest components and processes to ensure the specifications for your Interface products perform to meet their published specifications.

Features & Benefits

Interface uses the highest grade cables and connectors to ensure the performance of your force and torque systems are at the highest level.

  • Designed to work with Interface products
  • Made with the highest quality components and processes
  • Created to maintain the specification of the product they are intended for
  • For connecting transducers to instrumentation
  • Standard and custom lengths
  • Shielded cable
Mating Connectors 3

Mating Connectors

Accessories

Interface accessory products are made from the highest components and processes to ensure the specifications for your Interface products perform to meet their published specifications.

Models MC-001, MC-002, CN-207, CN-208, and CN-214 are available.

Features & Benefits

Interface uses the highest grade mating connectors to ensure that the performance of your force and torque solutions are not compromised.

  • Designed to work with Interface products
  • Made with the highest quality components and processes
  • Created to maintain the specification of the product they are intended for
  • Mating connector and cable
  • Dressed pigtails
  • Interconnects between load cell and instruments
SystemLevelCalibration

System Level Calibration

Interface strongly recommends requesting a system-level calibration when purchasing a force measurement sensor with instrumentation. This final step ensures the sensor and instrumentation are properly calibrated and functioning together before leaving Interface.
