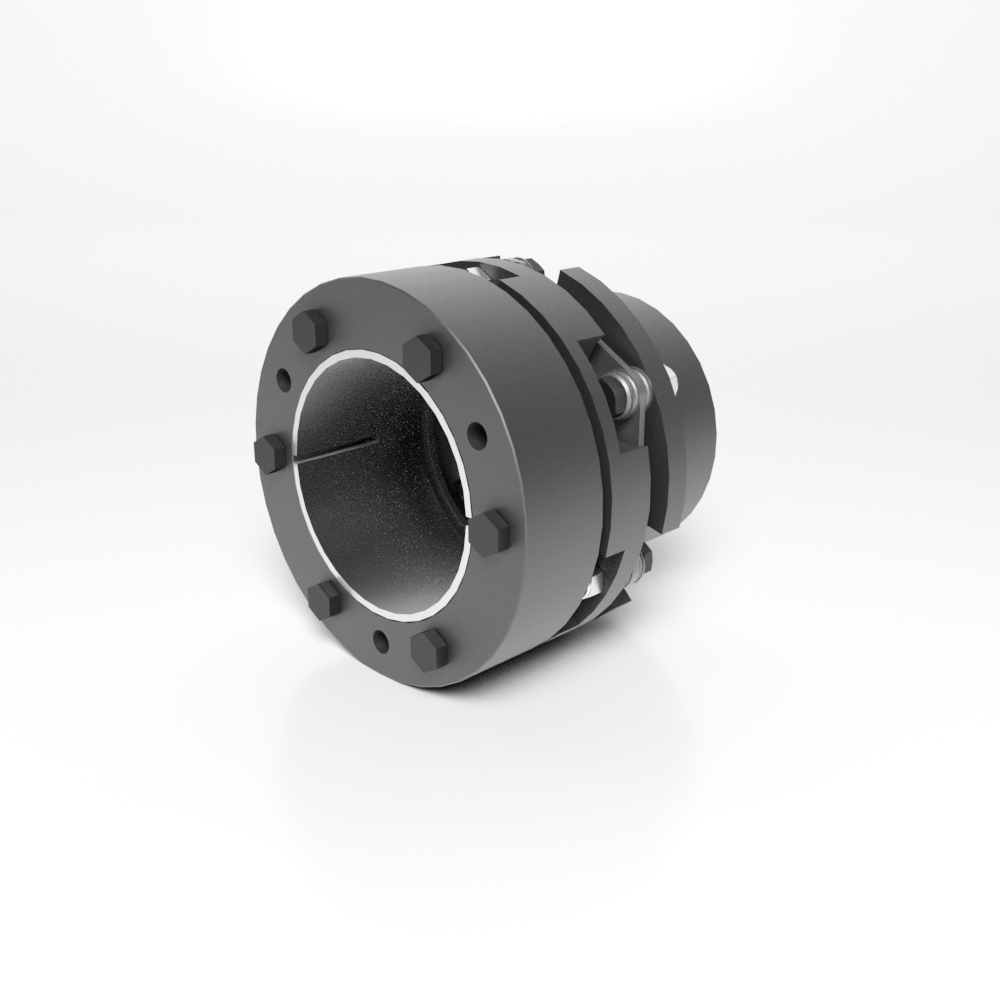

Floating Mount Single Flex Couplings

Floating Mount

50 Nm to 1000 Nm
442 lbf-in to 8850 lbf-in

Floating Mount Single Flex Couplings are designed for free-floating torque transducer assemblies, providing a torsionally stiff connection while minimizing unwanted loads on the sensor. The transducer side of the coupling uses a shrink disk hub, allowing secure mounting to smooth shafts without the need for keys, while maintaining precise alignment and high torque transmission capability. On the customer side, three hub configurations are available to suit different shaft requirements. The smooth bore version uses a shrink disk hub for direct mounting to plain shafts, the keyed hub version provides a traditional keyed connection for applications requiring positive drive engagement, and the clamping ring hub version offers a split clamping design for easy installation and secure grip without keyways. These options allow the Floating Mount Single Flex Couplings to be configured for a wide range of torque measurement applications while maintaining accurate and reliable performance. These couplings are available for the following torque sensors:

  • T2 Ultra Precision Shaft Style Rotary Torque Transducer – 50 to 20k Nm (442 to 177K lbf-in)
  • T4 Standard Precision Shaft Style Rotary Torque Transducer – 50 – 1k Nm (442 to 8.85K lbf-in)
  • T6 Dual Range Shaft Style Rotary Torque Transducer – 5/50 – 2k/20k Nm (44/442 to 27/17.7K lbf-in)
  • T8 General Purpose Shaft Style Rotary Torque Transducer – 50 – 200 Nm (442 to 1.77K lbf-in)
  • T11 Bearingless Low Capacity Shaft Style Rotary Torque Transducer – 50 – 150 Nm (442 to 1.32K lbf-in)
  • T25 High Speed Shaft Style Rotary Torque Transducer – 50 – 5k Nm (442 to 44.2K lbf-in)

Product Downloads

Floating Mount Single Flex Couplings are designed for free-floating torque transducer assemblies, providing a torsionally stiff connection while minimizing unwanted loads on the sensor.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: N/A Categories: ,

Features and Benefits

  • Capacities 50 to 1000 Nm (442 to 8850 lbf-in)
  • Shrink disk hub for smooth shafts
  • Floating mount

Specifications

Specifications

Shrink Disk Floating Mount Single Flex Couplings

Model Capacity Transducer Side Customer Side Coupling Model Coupling Size Sensor Shaft Customer Shaft
Nm lbf-in Hub Type Hub Type
T2, T4, T6, T8, T11, T25 50-100 442-885 shrink disk shrink disk 950E320-M18-XXX 16 18 14-26
T2, T4, T6, T25 200 1.7K shrink disk shrink disk 950F320-M32-XXXK 25 32 20-36
T2, T4, T6, T25 500 4.4k shrink disk shrink disk 950H320-M32-XXX 64 32 30-45
T2, T4, T6 1K 8.8k shrink disk shrink disk 950J320-M50-XXX 100 50 35-55
T2, T4, T6, T25 2K 17.7k shrink disk shrink disk 950L220-M70-XXX 300 70 50-85
T2, T4, T6, T25 5K 44.2k shrink disk shrink disk 950M220-M70-XXX 500 70 60-100
T2, T4, T6 10K 88.5k shrink disk shrink disk 950P220-M110-XXX 1400 110 80-140
T8 100 885 shrink disk shrink disk 950E320-M22-XXX 16 22 14-26
T11 200 1.7k shrink disk shrink disk 950F320-M22-XXX 25 22 20-36
T25 1K 8.8k shrink disk shrink disk 950J320-M42-XXX 100 42 35-55

Keyed/Keyed Large Floating Mount Single Flex Couplings

Model Capacity Transducer Side Customer Side Coupling Model Coupling Size Sensor Shaft Customer Shaft
Nm lbf-in Hub Type Hub Type
T2, T4, T6, T8, T25 50-100 442-885 shrink disk keyed 950E300-M18-XXXK 16 18 16-32
T2, T4, T6, T8, T25 50-100 442-885 shrink disk keyed large 950E310-M18-XXXK 16 18 30-45
T2, T4, T6, T25 200 1.7K shrink disk keyed 950F300-M32-XXXK 25 32 20-40
T2, T4, T6, T25 200 1.7K shrink disk keyed large 950F310-M32-XXXK 25 32 35-55
T2, T4, T6, T25 500 4.4k shrink disk keyed 950H300-M32-XXXK 64 32 30-55
T2, T4, T6, T25 500 4.4k shrink disk keyed large 950H310-M32-XXXK 64 32 55-75
T2, T4, T6 1K 8.8k shrink disk keyed 950J300-M50-XXXK 100 50 35-70
T2, T4, T6 1K 8.8k shrink disk keyed large 950J310-M50-XXXK 100 50 65-95
T2, T4, T6, T25 2K 17.7k shrink disk keyed 950L200-M70-XXXK 300 70 45-90
T2, T4, T6, T25 5K 44.2k shrink disk keyed 950M200-M70-XXXK 500 70 55-105
T2, T4, T6 10K 88.5k shrink disk keyed 950P200-M110-XXXK 1400 110 75-140
T8 100 885 shrink disk keyed 950E300-M22-XXXK 16 22 16-32
T8 100 885 shrink disk keyed large 950E310-M22-XXXK 16 22 30-45
T11 200 1.7k shrink disk keyed 950F300-M22-XXXK 25 22 20-40
T11 200 1.7k shrink disk keyed large 950F310-M22-XXXK 25 22 35-55
T25 1K 8.8k shrink disk keyed 950J300-M42-XXXK 100 42 35-70
T25 1K 8.8k shrink disk keyed large 950J310-M42-XXXK 100 42 65-95

Clamping Ring Floating Mount Single Flex Couplings

Model Capacity Transducer Side Customer Side Coupling Model Coupling Size Sensor Shaft Customer Shaft
Nm lbf-in Hub Type Hub Type
T2, T4, T6, T8, T25 50-100 442-885 shrink disk clamping ring 950E340-M18-XXX 16 18 16-32
T2, T4, T6, T25 200 1.7K shrink disk clamping ring 950F340-M32-XXX 25 32 20-40
T2, T4, T6, T25 500 4.4k shrink disk clamping ring 950H340-M32-XXX 64 32 30-55
T2, T4, T6 1K 8.8k shrink disk clamping ring 950J340-M50-XXX 100 50 40-68
T8 100 885 shrink disk clamping ring 950E340-M22-XXX 16 22 25-35
T8 100 885 shrink disk clamping ring 950F340-M22-XXX 25 22 30-40
T25 1K 8.8k shrink disk clamping ring 950J340-M42-XXX 100 42 40-68

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions


Shrink Disk Floating Mount Single Flex Couplings Dimensions

Model (1) (2) (3) (4) (5) (6) Standard Shrink Disk Hub Large Shrink Disk Hub
mm in mm in mm in mm in mm in mm in (7) (8)
mm in mm in
950E320-M18-XXX Ø77 Ø3.0 35 1.38 Ø53 Ø2.1 40 1.57 7.1 0.28 Ø77 Ø3.0 Ø14 - 26 Ø0.5-1.0 Ø25-45 Ø0.98-1.77
950F320-M32-XXX Ø89 Ø3.5 40 1.57 Ø64 Ø2.5 45 1.77 7.2 0.28 Ø82 Ø3.2 Ø20 - 36 Ø0.7-1.4 Ø32-52 Ø1.26-2.05
950H320-M32-XXX Ø115 Ø4.5 50 1.97 Ø84 Ø3.3 55 2.17 9.6 0.38 Ø115 Ø4.5 Ø30 - 45 Ø1.1-1.7 Ø45-70 Ø1.77-2.75
950J320-M50-XXX Ø143 Ø5.6 55 2.17 Ø104 Ø4.1 60 2.36 10.0 0.39 Ø143 Ø5.6 Ø35 - 55 Ø1.3-2.1 Ø55-90 Ø2.16-3.54
950L220-M70-XXX - - 75 2.95 Ø164 Ø6.5 - - 11.2 0.44 - - Ø50 - 85 Ø2.0-3.4 - -
950M220-M70-XXX - - 95 3.74 Ø198 Ø7.8 - - 12.0 0.47 - - Ø60 - 100 Ø2.4-3.9 - -
950P220-M110-XXX - - 130 5.12 Ø274 Ø10.8 - - 16.0 0.63 - - Ø80 - 140 Ø3.2-5.5 - -
950E320-M22-XXX Ø77 Ø3.0 35 1.38 Ø50 Ø2.0 40 1.57 7.1 0.28 Ø77 Ø3.0 Ø14 - 26 Ø0.5-1.0 Ø25-45 Ø0.98-1.77
950F320-M22-XXX Ø89 Ø3.5 40 1.57 Ø60 Ø2.4 45 1.77 7.2 0.28 Ø82 Ø3.2 Ø20 - 36 Ø0.7-1.4 Ø32-52 Ø1.26-2.05
950J320-M42-XXX Ø143 Ø5.6 55 2.17 Ø100 Ø3.9 60 2.36 10.0 0.39 Ø143 Ø5.6 Ø35 - 55 Ø1.3-2.1 Ø55-90 Ø2.16-3.54


Keyed/Keyed Large Floating Mount Single Flex Couplings Dimensions

Model (1) (2) (3) (4) (5) Standard Shrink Disk Hub Large Shrink Disk Hub
mm in mm in mm in mm in mm in (6) (7)
mm in mm in
950E300-M18-XXXK Ø 77 Ø 3.0 Ø 40 Ø 1.6 Ø 50 Ø 2.0 35 1.4 7.1 0.28 Ø 16-32 Ø 0.63-1.26 Ø 30-45 Ø 1.18-1.77
950E310-M18-XXXK Ø 77 Ø 3.0 Ø 40 Ø 1.6 Ø 50 Ø 2.0 35 1.4 7.1 0.28 Ø 30-45 Ø 1.18-1.77 Ø45-70 Ø1.77-2.75
950F300-M32-XXXK Ø 89 Ø 3.5 Ø 45 Ø 1.8 Ø 60 Ø 2.4 40 1.6 7.2 0.28 Ø 20-40 Ø 0.79-1.57 Ø 35-55 Ø 1.38-2.16
950F310-M32-XXXK Ø 89 Ø 3.5 Ø 45 Ø 1.8 Ø 60 Ø 2.4 40 1.6 7.2 0.28 Ø 35-55 Ø 1.38-2.16 Ø55-90 Ø2.16-3.54
950H300-M32-XXXK Ø 123 Ø 4.8 Ø 65 Ø 2.6 Ø 80 Ø 3.1 50 2.0 9.6 0.38 Ø 30-55 Ø 1.18-2.16 Ø 55-75 Ø 2.16-2.95
950H310-M32-XXXK Ø 123 Ø 4.8 Ø 65 Ø 2.6 Ø 80 Ø 3.1 50 2.0 9.6 0.38 Ø 55-75 Ø 2.16-2.95 - -
950J300-M50-XXXK Ø 143 Ø 5.6 Ø 75 Ø 2.9 Ø 100 Ø 3.9 55 2.2 10.0 0.39 Ø 35-70 Ø 1.38-2.76 Ø 65-95 Ø 2.56-3.74
950J310-M50-XXXK Ø 143 Ø 5.6 Ø 75 Ø 2.9 Ø 100 Ø 3.9 55 2.2 10.0 0.39 Ø 65-95 Ø 2.56-3.74 - -
950L200-M70-XXXK Ø 167 Ø 6.6 Ø 90 Ø 3.5 Ø 121 Ø 4.8 75 2.9 11.2 0.44 Ø 45-90 Ø 1.77-3.54 - -
950M200-M70-XXXK Ø 198 Ø 7.8 Ø 100 Ø 3.9 Ø 141 Ø 5.6 95 3.7 12.0 0.47 Ø 55-105 Ø 2.16-4.13 - -
950P200-M110-XXXK Ø 274 Ø 10.8 Ø 150 Ø 5.9 Ø 190 Ø 7.5 130 5.1 16.0 0.62 Ø 75-140 Ø 2.95-5.51 - -
950E300-M22-XXXK Ø 77 Ø 3.0 Ø 40 Ø 1.6 Ø 50 Ø 2.0 35 1.4 7.1 0.28 Ø 16-32 Ø 0.63-1.26 Ø 35-55 Ø 1.38-2.16
950E310-M22-XXXK Ø 77 Ø 3.0 Ø 40 Ø 1.6 Ø 50 Ø 2.0 35 1.4 7.1 0.28 Ø 30-45 Ø 1.18-1.77 Ø45-70 Ø1.77-2.75
950F300-M22-XXXK Ø 89 Ø 3.5 Ø 45 Ø 1.8 Ø 60 Ø 2.4 40 1.6 7.2 0.28 Ø 20-40 Ø 0.79-1.57 Ø 35-55 Ø 1.38-2.16
950F310-M22-XXXK Ø 89 Ø 3.5 Ø 45 Ø 1.8 Ø 60 Ø 2.4 40 1.6 7.2 0.28 Ø 35-55 Ø 1.38-2.16 Ø55-90 Ø2.16-3.54
950J300-M42-XXXK Ø 143 Ø 5.6 Ø 75 Ø 2.9 Ø 100 Ø 3.9 55 2.2 10.0 0.39 Ø 35-70 Ø 1.38-2.76 Ø 65-95 Ø 2.56-3.74
950J310-M42-XXXK Ø 143 Ø 5.6 Ø 75 Ø 2.9 Ø 100 Ø 3.9 55 2.2 10.0 0.39 Ø 65-95 Ø 2.56-3.74 - -


Clamping Ring Floating Mount Single Flex Couplings Dimensions

Model (1) (2) (3) (4) (5) Standard Shrink Disk Hub Large Shrink Disk Hub
mm in mm in mm in mm in mm in (6)
mm in Hub Type Hub Bore
950E340-M18-XXX Ø 77 Ø 3.0 40 1.6 Ø 73 Ø 2.9 35 1.4 7.1 0.28 Ø 16-32 Ø 0.63-1.26 shrink disk M18
950F340-M32-XXX Ø 89 Ø 3.5 45 1.8 Ø 84 Ø 3.3 40 1.6 7.2 0.28 Ø 20-40 Ø 0.79-1.57 shrink disk M32
950H340-M32-XXX Ø 104 Ø 4.1 55 2.17 Ø 97 Ø 3.8 45 1.8 8.4 0.33 Ø 30-55 Ø 1.18-2.16 shrink disk M32
950J340-M50-XXX Ø 123 Ø 4.8 65 2.6 Ø 115 Ø 4.5 50 2.0 9.6 0.38 Ø 40-68 Ø 1.57-2.68 shrink disk M50
950E340-M22-XXX Ø 143 Ø 5.6 75 2.9 Ø 135 Ø 5.3 55 2.2 10.0 0.39 Ø 25-35 Ø 0.98-1.38 shrink disk M22
950F340-M22-XXX Ø 143 Ø 5.6 75 2.9 Ø 135 Ø 5.3 55 2.2 10.0 0.39 Ø 30-40 Ø 1.18-1.57 shrink disk M22
950J340-M42-XXX Ø 123 Ø 4.8 65 2.6 Ø 115 Ø 4.5 50 2.0 9.6 0.38 Ø 40-68 Ø 1.57-2.68 shrink disk M42
