Low Capacity Pedestal Mount Double Flex Couplings

Low Capacity Pedestal Mount

Get Your Free Quote

0.005 Nm to 30Nm
0.04 lbf-in to 265 lbf-in

The Low Capacity Pedestal Mount Double Flex Couplings are designed for fixed torque sensor installation. These couplings are available for the following torque sensors:

  • T3 Ultra Precision Pedestal Mount Shaft Style Rotary Torque Transducer – 0.1 to 30Nm (0.88 to 265 lbf-in)
  • T5 Standard Precision Pedestal Mount Shaft Style Rotary Torque Transducer – 0.1 – 20 Nm (0.88 to 177 lbf-in)
  • T7 Dual Range Pedestal Mount Shaft Style Rotary Torque Transducer – 0.5/5 – 3/30 Nm (4.4/44 to 27/265 lbf-in)
  • T8 General Purpose Shaft Style Rotary Torque Transducer – 0.2 – 20 Nm (1.8 to 177 lbf-in)
  • T25 High Speed Shaft Style Rotary Torque Transducer – 0.5 – 30 Nm (4.4 to 265 lbf-in)

Product Downloads

The Low Capacity Pedestal Mount Double Flex Couplings are designed for fixed torque sensor installation.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: N/A Categories: , , Tag:

Features and Benefits

  • Capacities 0.1 to 30Nm (0.88 to 265 lbf-in)
  • For fixed torque sensor installation

Specifications

Specifications

Model Capacity Transducer Side Customer Side Coupling Model Coupling Size Sensor Shaft Customer Shaft
Nm lbf-in Hub Type Hub Type
T3, T5, T7, T8, T25 0.1-0.2 0.885–1.77 collar collar 969-25-M8-XXX 8 3-10 16-32
T3, T5, T7, T8 0.1-0.2 0.885–1.77 collar keyed collar 969K-25-M8-XXX 8 3-10 30-45
T3, T5, T7, T8, T25 0.5-1 4.43–8.85 collar collar 969-37-M8-XXX 8 4-14 20-40
T3, T5, T7, T8 0.5-1 4.43–8.85 collar keyed collar 969K-37-M8-XXX 8 4-14 35-55
T3, T5, T7, T8, T25 2-5 17.70–44.25 collar collar 969-50-M8-XXX 8 6-18 30-55
T3, T5, T7, T8 2-5 17.70–44.25 collar keyed collar 969K-50-M8-XXX 8 6-18 55-75
T3, T5, T7, T8, T25 10 88.51 collar collar 969-62-M10-XXX 10 8-24 35-70
T3, T5, T7, T8 10 88.51 collar keyed collar 969K-62-M10-XXX 10 8-24 65-95
T3, T5, T7, T8, T25 20 177.02 collar collar 969-62-M18-XXX 18 8-24 45-90
T3, T5, T7, T8 20 177.02 collar keyed collar 969K-62-M18-XXX 18 8-28 55-105
T3, T5, T7, T25 30 265.52 collar collar 969-75-M18-XXX 18 7.5-28 75-140
T3, T5, T7 30 265.52 collar keyed collar 969K-75-M18-XXX 18 7.5-28 16-32

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions


Model Capacity Transducer Side Customer Side Coupling Model Coupling Size Sensor Shaft Customer Shaft
Nm lbf-in Hub Type Hub Type
T3, T5, T7, T8, T25 0.1-0.2 0.885–1.77 collar collar 969-25-M8-XXX 8 3-10 16-32
T3, T5, T7, T8 0.1-0.2 0.885–1.77 collar keyed collar 969K-25-M8-XXX 8 3-10 30-45
T3, T5, T7, T8, T25 0.5-1 4.43–8.85 collar collar 969-37-M8-XXX 8 4-14 20-40
T3, T5, T7, T8 0.5-1 4.43–8.85 collar keyed collar 969K-37-M8-XXX 8 4-14 35-55
T3, T5, T7, T8, T25 2-5 17.70–44.25 collar collar 969-50-M8-XXX 8 6-18 30-55
T3, T5, T7, T8 2-5 17.70–44.25 collar keyed collar 969K-50-M8-XXX 8 6-18 55-75
T3, T5, T7, T8, T25 10 88.51 collar collar 969-62-M10-XXX 10 8-24 35-70
T3, T5, T7, T8 10 88.51 collar keyed collar 969K-62-M10-XXX 10 8-24 65-95
T3, T5, T7, T8, T25 20 177.02 collar collar 969-62-M18-XXX 18 8-24 45-90
T3, T5, T7, T8 20 177.02 collar keyed collar 969K-62-M18-XXX 18 8-28 55-105
T3, T5, T7, T25 30 265.52 collar collar 969-75-M18-XXX 18 7.5-28 75-140
T3, T5, T7 30 265.52 collar keyed collar 969K-75-M18-XXX 18 7.5-28 16-32

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Product Video

Features and Benefits

  • Capacities 0.1 to 30Nm (0.88 to 265 lbf-in)
  • For fixed torque sensor installation

Specifications

Specifications

Model Capacity Transducer Side Customer Side Coupling Model Coupling Size Sensor Shaft Customer Shaft
Nm lbf-in Hub Type Hub Type
T3, T5, T7, T8, T25 0.1-0.2 0.885–1.77 collar collar 969-25-M8-XXX 8 3-10 16-32
T3, T5, T7, T8 0.1-0.2 0.885–1.77 collar keyed collar 969K-25-M8-XXX 8 3-10 30-45
T3, T5, T7, T8, T25 0.5-1 4.43–8.85 collar collar 969-37-M8-XXX 8 4-14 20-40
T3, T5, T7, T8 0.5-1 4.43–8.85 collar keyed collar 969K-37-M8-XXX 8 4-14 35-55
T3, T5, T7, T8, T25 2-5 17.70–44.25 collar collar 969-50-M8-XXX 8 6-18 30-55
T3, T5, T7, T8 2-5 17.70–44.25 collar keyed collar 969K-50-M8-XXX 8 6-18 55-75
T3, T5, T7, T8, T25 10 88.51 collar collar 969-62-M10-XXX 10 8-24 35-70
T3, T5, T7, T8 10 88.51 collar keyed collar 969K-62-M10-XXX 10 8-24 65-95
T3, T5, T7, T8, T25 20 177.02 collar collar 969-62-M18-XXX 18 8-24 45-90
T3, T5, T7, T8 20 177.02 collar keyed collar 969K-62-M18-XXX 18 8-28 55-105
T3, T5, T7, T25 30 265.52 collar collar 969-75-M18-XXX 18 7.5-28 75-140
T3, T5, T7 30 265.52 collar keyed collar 969K-75-M18-XXX 18 7.5-28 16-32

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions


Model Capacity Transducer Side Customer Side Coupling Model Coupling Size Sensor Shaft Customer Shaft
Nm lbf-in Hub Type Hub Type
T3, T5, T7, T8, T25 0.1-0.2 0.885–1.77 collar collar 969-25-M8-XXX 8 3-10 16-32
T3, T5, T7, T8 0.1-0.2 0.885–1.77 collar keyed collar 969K-25-M8-XXX 8 3-10 30-45
T3, T5, T7, T8, T25 0.5-1 4.43–8.85 collar collar 969-37-M8-XXX 8 4-14 20-40
T3, T5, T7, T8 0.5-1 4.43–8.85 collar keyed collar 969K-37-M8-XXX 8 4-14 35-55
T3, T5, T7, T8, T25 2-5 17.70–44.25 collar collar 969-50-M8-XXX 8 6-18 30-55
T3, T5, T7, T8 2-5 17.70–44.25 collar keyed collar 969K-50-M8-XXX 8 6-18 55-75
T3, T5, T7, T8, T25 10 88.51 collar collar 969-62-M10-XXX 10 8-24 35-70
T3, T5, T7, T8 10 88.51 collar keyed collar 969K-62-M10-XXX 10 8-24 65-95
T3, T5, T7, T8, T25 20 177.02 collar collar 969-62-M18-XXX 18 8-24 45-90
T3, T5, T7, T8 20 177.02 collar keyed collar 969K-62-M18-XXX 18 8-28 55-105
T3, T5, T7, T25 30 265.52 collar collar 969-75-M18-XXX 18 7.5-28 75-140
T3, T5, T7 30 265.52 collar keyed collar 969K-75-M18-XXX 18 7.5-28 16-32

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Product Video

Short Description Sku Price

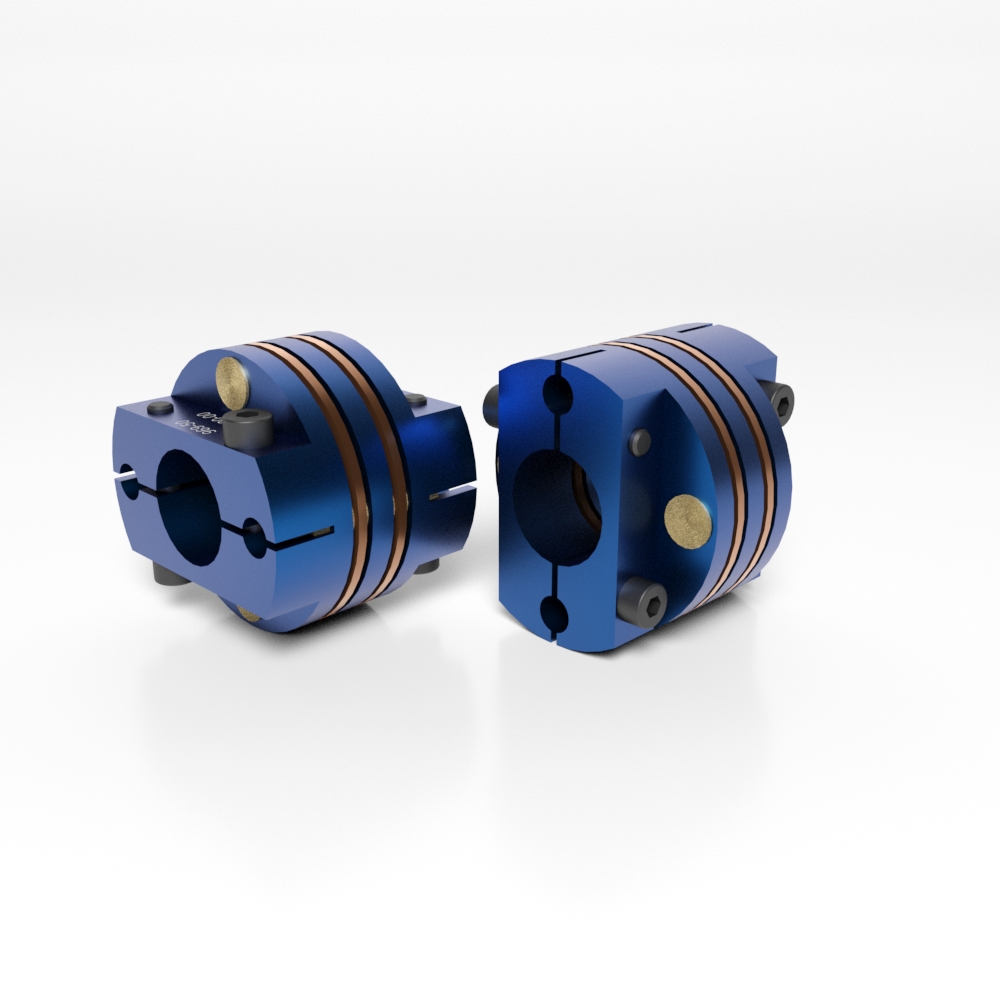

Model 969-75-M18-XXX T3, T5, T7, T25 Low Capacity Double-Flex Disk Pedestal Mount Couplings with M18 Hub 969-75-M18-XXX $800.00
