Features and Benefits
- High Precision
- Low Hysteresis
- Ring-type Design
- Rugged Construction
- Environmentally Protected
2000 High Precision Canister Load Cell
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
2000 High Precision Canister Load Cell
Low Hysteresis Environmentally Protected
50K to 300K lbf
250 to 1350 kN

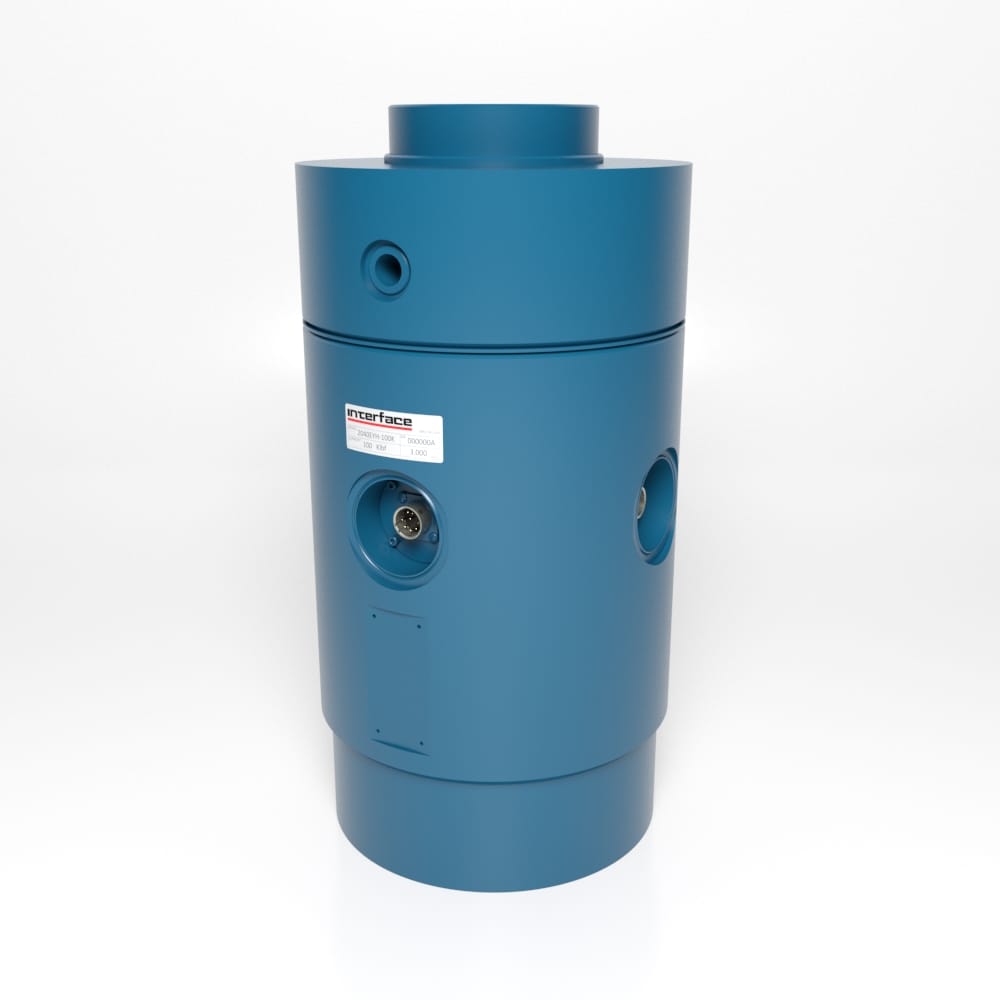

Model 2000 High Precision Canister Load Cell features low hysteresis of +/-0.03% or less while offering rugged construction for use in harsh environments. This product has a ring-type design that is preferred for use in heavy duty force testing. Model 2000 is available in capacities ranging from 50K to 300K lbf (250 to 1,350kN). Higher capacities are available upon request.
Models 2030, 2040, and 2060 are available.
Product Downloads
Model 2000 High Precision Canister Load Cell features low hysteresis of +/-0.03% or less while offering rugged construction for use in harsh environments. This product has a ring-type design that is preferred for use in heavy duty force testing. Model 2000 is available in capacities ranging from 50K to 300K lbf (250 to 1,350kN). Higher capacities are available upon request.
Models 2030, 2040, and 2060 are available.
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Dimensions
Dimensions
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Connector Pin Diagram
Model 2030
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| A | + EXCITATION |
| B | + SIGNAL |
| C | - SIGNAL |
| D | - EXCITATION |
| E | N/C |
| F | N/C |
| TENSION UPSCALE | |
Model 2040
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| A | + SIGNAL |
| B | - EXCITATION |
| C | N/C |
| D | + EXCITATION |
| E | - SIGNAL |
| F | + SIGNAL |
| G | N/C |
| H | + EXCITATION |
| J | - SIGNAL |
| K | - EXCITATION |
| COMPRESSION UPSCALE | |
Model 2060
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| A | + EXCITATION |
| B | + SIGNAL |
| C | - EXCITATION |
| D | - SIGNAL |
| E | + EXCITATION |
| F | + SIGNAL |
| G | - EXCITATION |
| H | - SIGNAL |
| TENSION UPSCALE | |
Additional Information
| Dimensions | 5.73 × 5.73 × 11.50 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- High Precision
- Low Hysteresis
- Ring-type Design
- Rugged Construction
- Environmentally Protected
Specifications
Specifications
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Dimensions
Dimensions
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Connector Pin Diagram
Model 2030
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| A | + EXCITATION |
| B | + SIGNAL |
| C | - SIGNAL |
| D | - EXCITATION |
| E | N/C |
| F | N/C |
| TENSION UPSCALE | |
Model 2040
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| A | + SIGNAL |
| B | - EXCITATION |
| C | N/C |
| D | + EXCITATION |
| E | - SIGNAL |
| F | + SIGNAL |
| G | N/C |
| H | + EXCITATION |
| J | - SIGNAL |
| K | - EXCITATION |
| COMPRESSION UPSCALE | |
Model 2060
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| A | + EXCITATION |
| B | + SIGNAL |
| C | - EXCITATION |
| D | - SIGNAL |
| E | + EXCITATION |
| F | + SIGNAL |
| G | - EXCITATION |
| H | - SIGNAL |
| TENSION UPSCALE | |
Additional Information
| Dimensions | 5.73 × 5.73 × 11.50 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model 2000 High Precision Canister Load Cell, 50K Capacity | 2030-50K | $7,850.00 |
| Model 2000 High Precision Canister Load Cell, 100K Capacity | 2040-100K | $8,360.00 |
| Model 2000 High Precision Canister Load Cell, 200K Capacity | 2060-200K | $12,300.00 |
| Model 2000 High Precision Canister Load Cell, 300K Capacity | 2060-300K | $12,300.00 |
×
![]()
