PBLC2 Pillow Block Load Bearing Load Cell

Pillow Block Bearing Load Cell

Get Your Free Quote

2.2K lbf to 11.2K lbf
10 kN to 50 kN

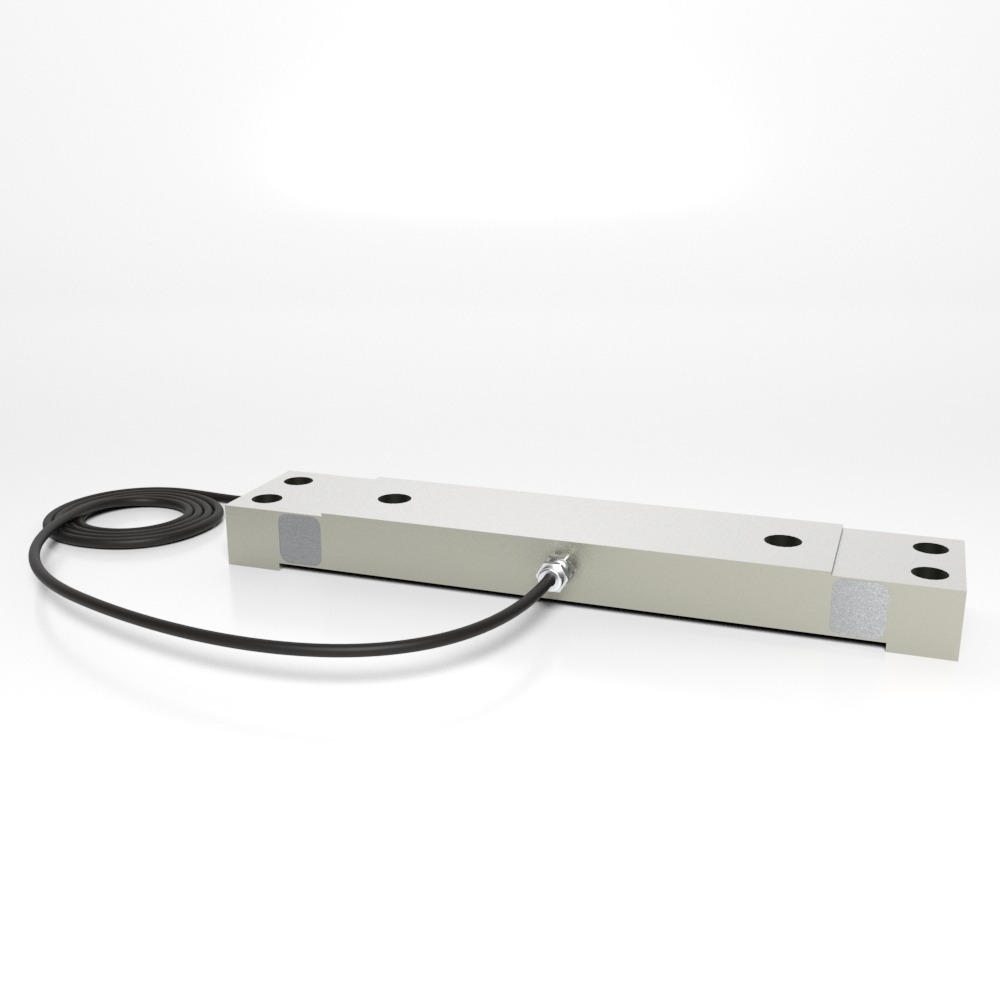

The PBLC2 Pillow Block Load Bearing Load Cell series has been developed to measure the force of a pillow block bearing. The force measurement is performed at this load cell between two supports. This force sensor is suitable for the measurement of forces under pillow block bearings for diameter Ø 80mm (Ø 3.15 in) and for the measurement of axle weight in test stands for trains and vehicles. Product is compatible with INA Pillow Block Bearings

Note: Pillow block bearings are required, but not included with load cell. All PBLC Pillow Block Bearing Load Cells are compatible with INA pillow block bearings.

Product Downloads

The PBLC2 Pillow Block Load Bearing Load Cell series has been developed to measure the force of a pillow block bearing.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: MB-5-1-2 Categories: , , , , Tag:

Features and Benefits

  • Capacities from 5 to 30 kN (1.1K to 6.7K lbf)
  • Compatible with INA pillow block bearings
  • IP65 moisture protection
  • Rugged Galvanized Tool Steel

Options

  • Optional 780 (+/-80) Ohm Configuration
  • 2-Axis Option Available

Specifications

Specifications


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions 10 kN - 50 kN (2.2K lbf - 11.2K lbf)


See Drawing Model
PBLC2-10kN, PBLC2-20kN, PBLC2-50kN
Capacity
Metric (kN) U.S. (lbf)
10, 20, 50 2.2K, 4.4K, 11.2K
mm in
(1) 350 13.78
(2) 420 16.54
(3) 5 0.20
(4) 2 0.08
(5) 40 1.57
(6) 232 9.13
(7) 385 15.16
(8) 80 3.15
(9) 40 1.57
(10) 290 11.42
(11) 22.5 0.89
(12) 4 x Ø19 ↧ 4 x Ø0.75 ↧
(13) 2 x M24x3 ↧ 2 x M24x3 ↧
(14) Bolting Surface / Measuring Platform
(15) Bolting Surface

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

CABLE CONNECTION
SYMBOL FUNCTION COLOR
+Us + BRIDGE SUPPLY BROWN
-Us - BRIDGE SUPPLY WHITE
+Ud + BRIDGE OUTPUT GREEN
-Ud - BRIDGE OUTPUT YELLOW

For more information visit Electrical Wiring Diagrams
