Features and Benefits
- Proprietary Interface temperature compensated strain gages
- High temperature operating range -65°F to 300°F
- Environmentally sealed
- 0.02% nonrepeatability
- 0.0008%/°F temp. effect on output
- 0.025% creep
- Tension and compression
SSM-FDH Sealed High Temperature S-Type Load Cell
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
SSM-FDH Sealed High Temperature S-Type Load Cell
High-Temp S-Type
50 lbf to 250 lbf
200 N to 1.25 kN

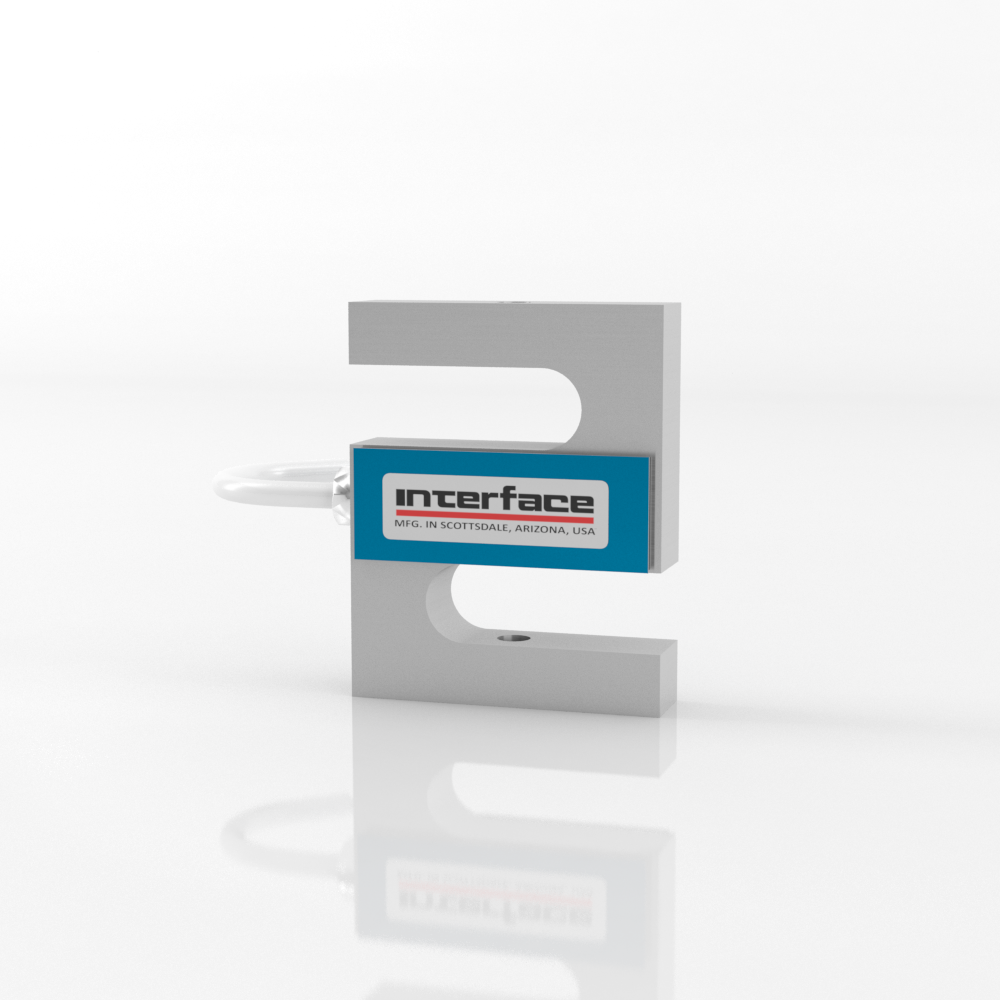

Model SSM-FDH is a high temperature sealed load cell for test machine and other general purpose applications. This product is available in capacities ranging from 50 to 250 lbf (200 to 1K N).
Product Downloads
Model SSM-FDH is a high temperature sealed load cell for test machine and other general purpose applications.
- Features and Benefits
- Specifications
- Installation
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Dimensions
Dimensions
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Connector Pin Diagram
| CABLE CONNECTION | |
| COLOR | FUNCTION |
| RED | + EXCITATION |
| GREEN | + SIGNAL |
| WHITE | - SIGNAL |
| BLACK | - EXCITATION |
| SHIELD | N/C |
| TENSION UPSCALE | |
For more information visit Electrical Wiring Diagrams
Additional Information
Product Video
- Features and Benefits
- Specifications
- Installation
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Proprietary Interface temperature compensated strain gages
- High temperature operating range -65°F to 300°F
- Environmentally sealed
- 0.02% nonrepeatability
- 0.0008%/°F temp. effect on output
- 0.025% creep
- Tension and compression
Specifications
Specifications
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Dimensions
Dimensions
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Connector Pin Diagram
| CABLE CONNECTION | |
| COLOR | FUNCTION |
| RED | + EXCITATION |
| GREEN | + SIGNAL |
| WHITE | - SIGNAL |
| BLACK | - EXCITATION |
| SHIELD | N/C |
| TENSION UPSCALE | |
For more information visit Electrical Wiring Diagrams
Additional Information
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model SSM High Temperature Sealed S-type Load Cell 200 N Capacity with 15-foot Integral Cable | SSM-FDH-200N | $710.00 |
| Model SSM High Temperature Sealed S-type Load Cell 500 N Capacity with 15-foot Integral Cable | SSM-FDH-500N | $710.00 |
| Model SSM High Temperature Sealed S-type Load Cell 1000 N Capacity with 15-foot Integral Cable | SSM-FDH-1000N | $710.00 |
| Model SSM High Temperature Sealed S-type Load Cell 50 lbf Capacity with 15-foot Integral Cable | SSM-FDH-50 | $725.00 |
| Model SSM High Temperature Sealed S-type Load Cell 100 lbf Capacity with 15-foot Integral Cable | SSM-FDH-100 | $710.00 |
| Model SSM High Temperature Sealed S-type Load Cell 150 lbf Capacity with 15-foot Integral Cable | SSM-FDH-150 | $710.00 |
| Model SSM High Temperature Sealed S-type Load Cell 250 lbf Capacity with 15-foot Integral Cable | SSM-FDH-250 | $710.00 |
×
![]()
