Features and Benefits
- Capacities from 10 Nm to 20K Nm (88.5 lbf-in to 177K lbf-in)
- Compact
- Small Thru-hole design
Order QuickShip48™ Now
TS11 Flange Style Reaction Torque Transducer
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

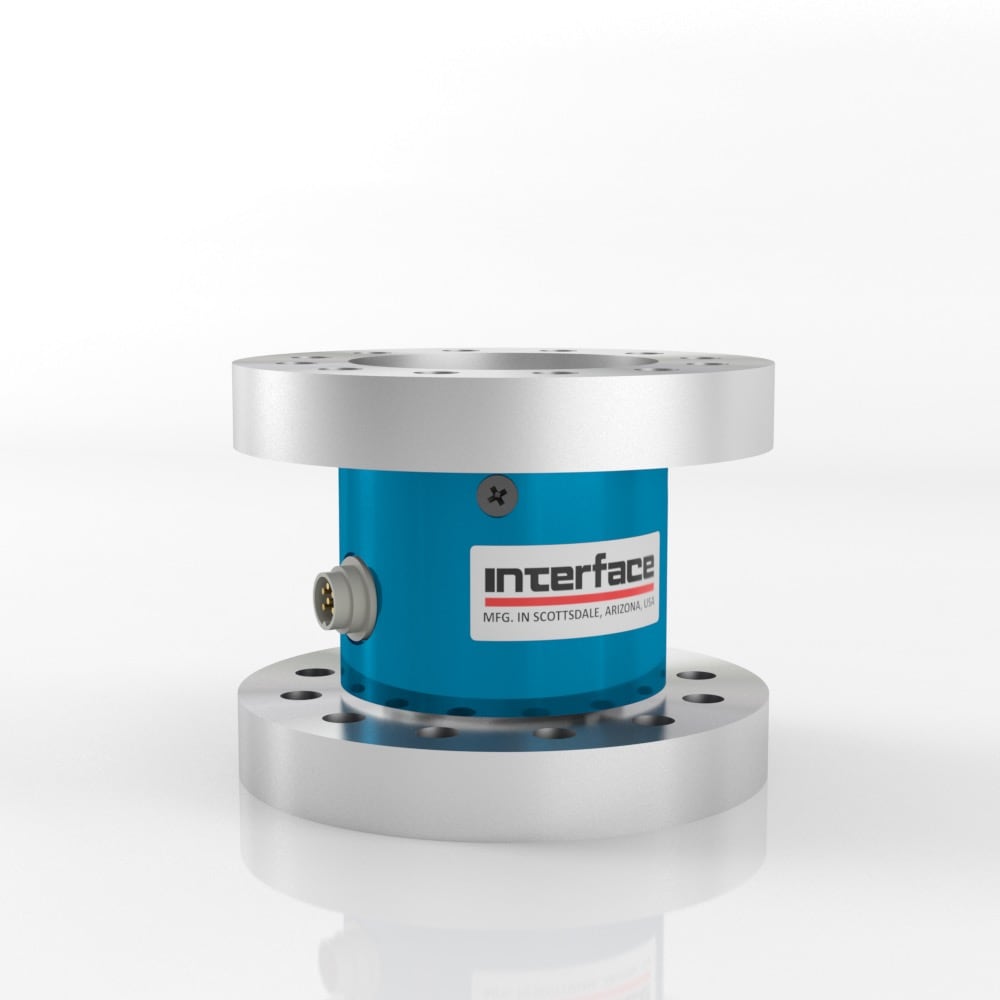

TS11 Flange Style Reaction Torque Transducer
Flange-type
88.5 lbf-in to 177K lbf-in
10 Nm to 20K Nm
Features of the TS11 include threaded mounting holes and a center thru-hole design. Compact size allows mounting in tight spaces.
Product Downloads
Features of the TS11 include threaded mounting holes and a center thru-hole design. Compact size allows mounting in tight spaces.
- Compact, Flange Style, Floating
- Reaction (Static)
- 0.85 lbs
- 2.76 × 2.56 in
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 6-PIN ELECTRICAL CONNECTION | |
| PIN | FUNCTION |
| 1 | - EXCITATION |
| 2 | + EXCITATION |
| 3 | SHIELDING |
| 4 | + SIGNAL |
| 5 | - SIGNAL |
| 6 | CONTROL SIGNAL OR TEDS (OPTION) |
Additional Information
| Dimensions | 2.76 × 2.56 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Capacities from 10 Nm to 20K Nm (88.5 lbf-in to 177K lbf-in)
- Compact
- Small Thru-hole design
Order QuickShip48™ Now
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 6-PIN ELECTRICAL CONNECTION | |
| PIN | FUNCTION |
| 1 | - EXCITATION |
| 2 | + EXCITATION |
| 3 | SHIELDING |
| 4 | + SIGNAL |
| 5 | - SIGNAL |
| 6 | CONTROL SIGNAL OR TEDS (OPTION) |
Additional Information
| Dimensions | 2.76 × 2.56 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model TS11 Flange Style Reaction Torque Transducer 20 Nm Capacity with 6-pin Binder Connector | TS11-20 | $2,240.00 |
| Model TS11 Flange Style Reaction Torque Transducer 10 Nm Capacity with 6-pin Binder Connector | TS11-10 | $2,230.00 |
| Model TS11 Flange Style Reaction Torque Transducer 50 Nm Capacity with 6-pin Binder Connector | TS11-50 | $2,230.00 |
| Model TS11 Flange Style Reaction Torque Transducer 100 Nm Capacity with 6-pin Binder Connector | TS11-100 | $2,625.00 |
| Model TS11 Flange Style Reaction Torque Transducer 200 Nm Capacity with 6-pin Binder Connector | TS11-200 | $2,625.00 |
| Model TS11 Flange Style Reaction Torque Transducer 500 Nm Capacity with 6-pin Binder Connector | TS11-500 | $4,185.00 |
×
![]()
