Features and Benefits
- Capacities from 1 Nm to 5K Nm (8.85 lbf-in to 44.2K lbf-in)
- Simple operation – No moving parts
- Useful for auditing fastener torques
- Fits standard socket wrenches

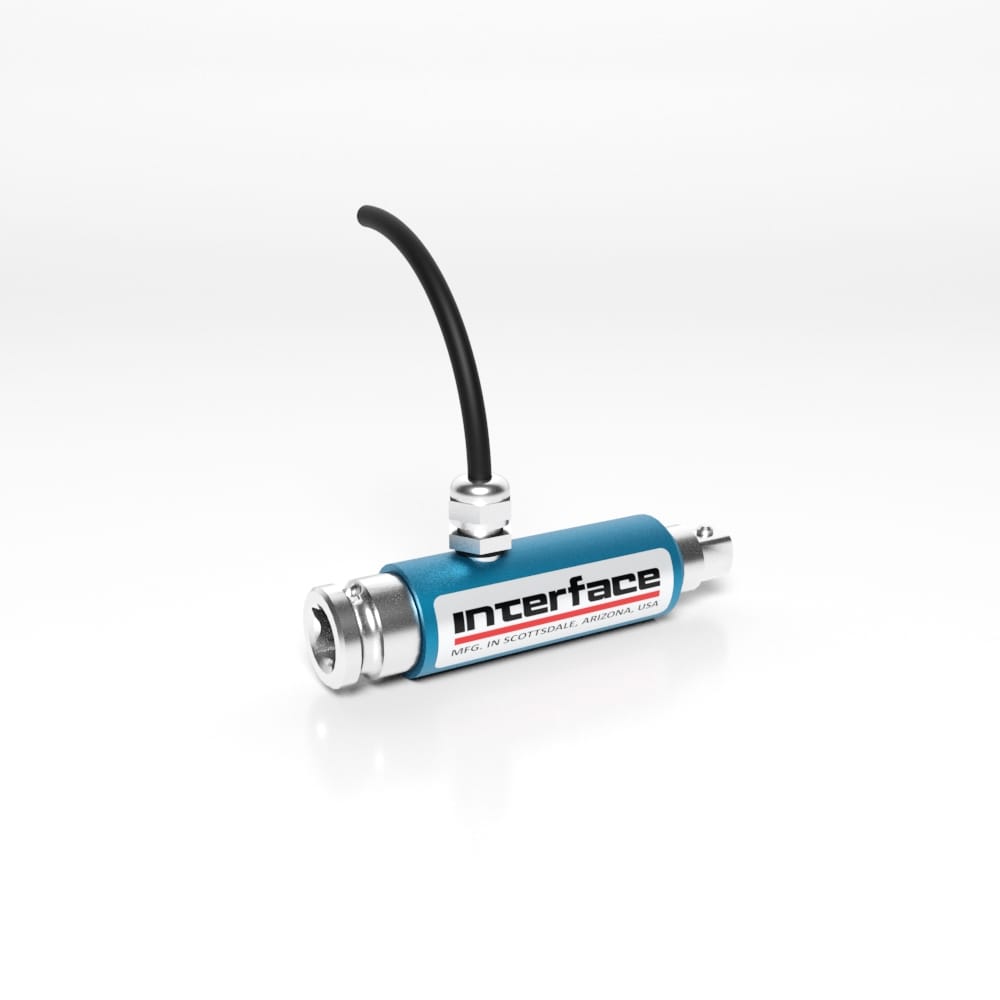

TS14 Square Drive Style Reaction Torque Transducer
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
TS14 Square Drive Style Reaction Torque Transducer
Square Drive-type
8.85 lbf-in to 44.2K lbf-in
1 Nm to 5K Nm
Model TS14 can be used to check torque wrenches and is useful for auditing fastener torque.
Product Downloads
- Data Sheet
- TS Operation Manual for Torque Sensors
- TS14 1-12Nm STP Files
- TS14 25-63Nm STP Files
- TS14 100-200Nm STP Files
- TS14 500Nm STP Files
- TS14 1KNm STP Files
- TS14 2K-5KNm STP Files
- TS14 2k-12k Nm Drawing
- TS14 25k-63k Nm Drawing
- TS14 100k-160k Nm Drawing
- TS14 250k-500k Nm Drawing
- TS14 1000k Nm Drawing
- TS14 2000k-5000k Nm Drawing
Model TS14 can be used to check torque wrenches and is useful for auditing fastener torque.
- Floating, Square Style
- Reaction (Static)
- 0.00 lbs
- 0.60 × 2.50 × 0.60 in
- Features and Benefits
- Specifications
- Performance Parameters
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
| Capacity | Nm | 1 | 2 - 5K |
| lbf-in | 8.85 | 17.7 - 44.3K | |
| Accuracy – (max error) | |||
| Combined Error – %FS | ± 0.2 | ||
| Nonrepeatability – % | ± 0.02 | ||
| Temperature | |||
| Effect on Zero – %RO / deg | °C | ±0.02 | |
| Effect on Output – % / deg | °C | ±0.01 | |
| Rated Range | °C | -5 to +45 | |
| °F | +23 to +113 | ||
| Operating Range | °C | -15 to +55 | |
| °F | +5 to +131 | ||
| Electrical | |||
| Output–mV/V | 0.5 | 1.0 | |
| Excitation Voltage – VDC MAX | 12 | ||
| Bridge Resistance – Ohm | 350 | ||
| Cable Length | m | 3 | |
| ft | 9.8 | ||
| Mechanical | |||
| Safe Overload – %RO | 150 | ||
| Material | Alloy steel | ||
| Protection Class | IP50 | ||
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Performance Parameters
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| ELECTRICAL CONNECTION | |
| COLOR | FUNCTION |
| GREEN | - EXCITATION |
| BROWN | + EXCITATION |
| YELLOW | + SIGNAL |
| WHITE | - SIGNAL |
| GRAY | CONTROL SIGNAL OR TEDS (OPTION) |
| SHIELDING | SHIELD |
Additional Information
| Dimensions | 0.60 × 2.50 × 0.60 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Performance Parameters
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Capacities from 1 Nm to 5K Nm (8.85 lbf-in to 44.2K lbf-in)
- Simple operation – No moving parts
- Useful for auditing fastener torques
- Fits standard socket wrenches
Specifications
Specifications
| Capacity | Nm | 1 | 2 - 5K |
| lbf-in | 8.85 | 17.7 - 44.3K | |
| Accuracy – (max error) | |||
| Combined Error – %FS | ± 0.2 | ||
| Nonrepeatability – % | ± 0.02 | ||
| Temperature | |||
| Effect on Zero – %RO / deg | °C | ±0.02 | |
| Effect on Output – % / deg | °C | ±0.01 | |
| Rated Range | °C | -5 to +45 | |
| °F | +23 to +113 | ||
| Operating Range | °C | -15 to +55 | |
| °F | +5 to +131 | ||
| Electrical | |||
| Output–mV/V | 0.5 | 1.0 | |
| Excitation Voltage – VDC MAX | 12 | ||
| Bridge Resistance – Ohm | 350 | ||
| Cable Length | m | 3 | |
| ft | 9.8 | ||
| Mechanical | |||
| Safe Overload – %RO | 150 | ||
| Material | Alloy steel | ||
| Protection Class | IP50 | ||
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Performance Parameters
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| ELECTRICAL CONNECTION | |
| COLOR | FUNCTION |
| GREEN | - EXCITATION |
| BROWN | + EXCITATION |
| YELLOW | + SIGNAL |
| WHITE | - SIGNAL |
| GRAY | CONTROL SIGNAL OR TEDS (OPTION) |
| SHIELDING | SHIELD |
Additional Information
| Dimensions | 0.60 × 2.50 × 0.60 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model TS14 Square Drive Reaction Torque Transducer 12 Nm Capacity, 1/4" Square Drive with 3-meter Integral Cable | TS14-12 | $1,465.00 |
| Model TS14 Square Drive Reaction Torque Transducer 160 Nm Capacity, 1/2" Square Drive with 3-meter Integral Cable | TS14-160 | $1,445.00 |
| Model TS14 Square Drive Reaction Torque Transducer 25 Nm Capacity, 3/8" Square Drive with 3-meter Integral Cable | TS14-25 | $1,465.00 |
| Model TS14 Square Drive Reaction Torque Transducer 5K Nm Capacity, 1 1/2" Square Drive with 3-meter Integral Cable | TS14-5K | $5,615.00 |
| Model TS14 Square Drive Reaction Torque Transducer 63 Nm Capacity, 3/8" Square Drive with 3-meter Integral Cable | TS14-63 | $1,465.00 |
× ![]()
