Features and Benefits
- Capacities from 0.1 Nm to 1K Nm (0.88 lbf-in to 8.85K lbf-in)
- ±5 VDC Output Standard (±10VDC Optional)
- Digital Electronics
- 12-28VDC Supply
- Contactless Design
- 10 kHz Sample Rate

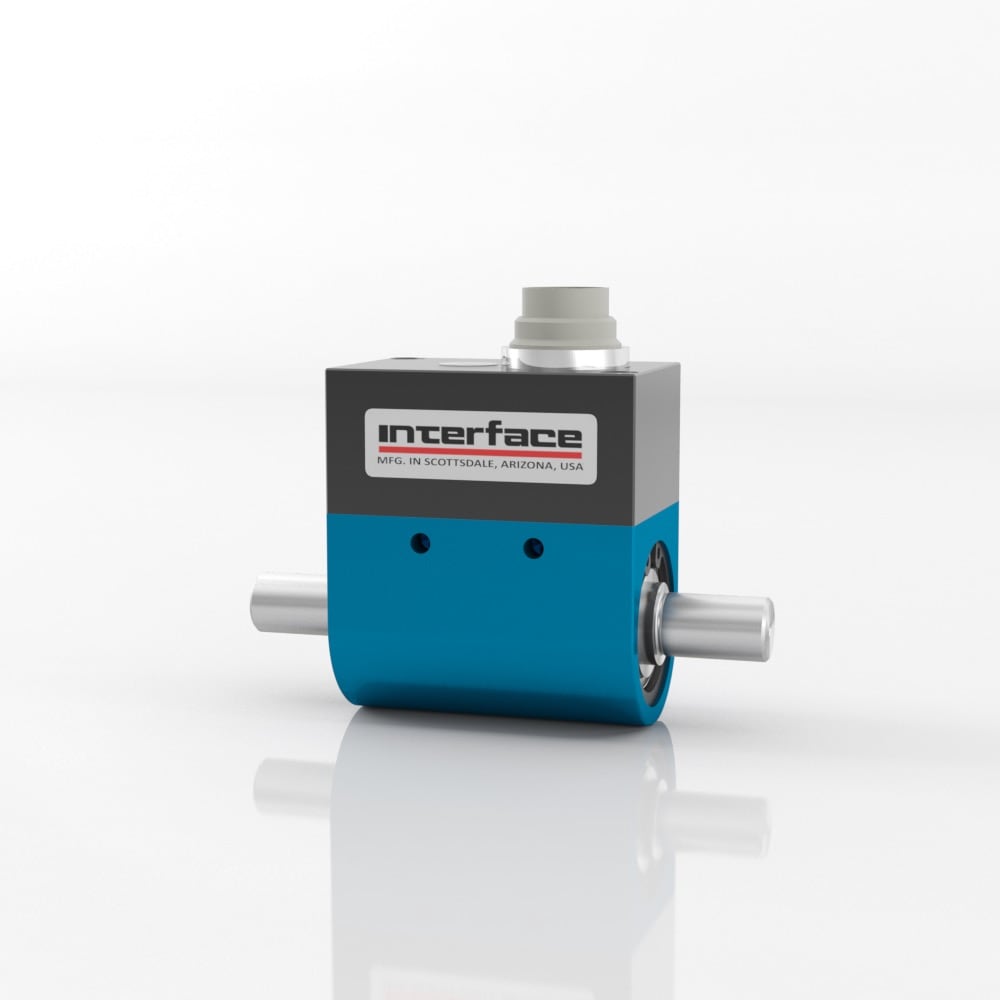

T4 Standard Precision Shaft Style Rotary Torque Transducer
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
T4 Standard Precision Shaft Style Rotary Torque Transducer
Shaft-type
0.88 lbf-in to 8.85K lbf-in
0.1 Nm to 1K Nm
Model T4 is an excellent choice for general-purpose torque measurement. At lower cost than the T2, the T4’s non-contact design features ± 5V or ± 10V output, 0.2% combined error, 12-bit resolution digital electronics and a remote-activated, internal shunt calibration resistor directly at the strain gage bridge. Speed and angle can be measured with the optional encoder.
Product Downloads
- Data Sheet
- Low Capacity Floating Mount Single Flex Couplings Datasheet
- T2, T3, T4, T5, T6, T7, T12, & T15 Operation Manual
- T4 0.1-5Nm STP FIle
- T4 10-15Nm STP FIle
- T4 20-30Nm STP FIle
- T4 50-100Nm STP FIle
- T4 200-500Nm STP FIle
- T4 1000Nm STP FIle
- T4 20-30Nm Drawing
- T4 50-100Nm Drawing
- T4 200-500Nm Drawing
- Low Capacity Floating Mount Single Flex Couplings
- Low Capacity Pedestal Mount Double Flex Couplings
Model T4 is an excellent choice for general-purpose torque measurement. At lower cost than the T2, the T4’s non-contact design features ± 5V or ± 10V output, 0.2% combined error, 12-bit resolution digital electronics and a remote-activated, internal shunt calibration resistor directly at the strain gage bridge. Speed and angle can be measured with the optional encoder.
- Contactless, Floating, Shaft Style
- Rotary (Dynamic)
- 0.2 lbs
- 3.35 × 1.3 × 2.2 in
- Features and Benefits
- Specifications
- Performance Parameters
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Performance Parameters
1 = Without encoder option 2 = Unsupported shaft
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions-0.1 Nm - 10 Nm
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions-20 Nm - 500 Nm
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions-1k Nm
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 12-PIN ELECTRICAL CONNECTION | ||
| PIN | FUNCTION | |
| A | N/C | - |
| B | SIGNAL ANGLE B (OPTION) | 5V TTL |
| C | + SIGNAL | ±5V (±10V) |
| D | SIGNAL (GND) | 0V |
| E | SUPPLY (GND) | 0V |
| F | + SUPPLY | 12 - 28VDC |
| G | SIGNAL ANGLE A (OPTION) | 5V TTL |
| H | N/C | - |
| J | N/C | - |
| K | CONTROL SIGNAL | L<2.0V H>3.5V |
| L | N/C | - |
| M | SHIELD | - |
Additional Information
| Dimensions | 3.35 × 1.3 × 2.2 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Performance Parameters
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Capacities from 0.1 Nm to 1K Nm (0.88 lbf-in to 8.85K lbf-in)
- ±5 VDC Output Standard (±10VDC Optional)
- Digital Electronics
- 12-28VDC Supply
- Contactless Design
- 10 kHz Sample Rate
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Performance Parameters
1 = Without encoder option 2 = Unsupported shaft
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions-0.1 Nm - 10 Nm
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions-20 Nm - 500 Nm
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions-1k Nm
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 12-PIN ELECTRICAL CONNECTION | ||
| PIN | FUNCTION | |
| A | N/C | - |
| B | SIGNAL ANGLE B (OPTION) | 5V TTL |
| C | + SIGNAL | ±5V (±10V) |
| D | SIGNAL (GND) | 0V |
| E | SUPPLY (GND) | 0V |
| F | + SUPPLY | 12 - 28VDC |
| G | SIGNAL ANGLE A (OPTION) | 5V TTL |
| H | N/C | - |
| J | N/C | - |
| K | CONTROL SIGNAL | L<2.0V H>3.5V |
| L | N/C | - |
| M | SHIELD | - |
Additional Information
| Dimensions | 3.35 × 1.3 × 2.2 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model T4 General Purpose Rotary Torque Transducer 1K Nm Capacity, +/-5VDC Output with Speed/Angle Option | T4-1K-A3A | $6,800.00 |
| Model T4 General Purpose Rotary Torque Transducer 0.2 Nm Capacity, +/-5VDC Output with Speed/Angle Option | T4-0.2-A3A | $4,800.00 |
| Model T4 General Purpose Rotary Torque Transducer 30 Nm Capacity, +/-5VDC Output with Speed/Angle Option | T4-30-A3A | $4,800.00 |
| Model T4 General Purpose Rotary Torque Transducer 0.5 Nm Capacity, +/-5VDC Output with Speed/Angle Option | T4-0.5-A3A | $4,800.00 |
| Model T4 General Purpose Rotary Torque Transducer 50 Nm Capacity, +/-5VDC Output with Speed/Angle Option | T4-50-A3A | $4,800.00 |
| Model T4 General Purpose Rotary Torque Transducer 1 Nm Capacity, +/-5VDC Output with Speed/Angle Option | T4-1-A3A | $4,800.00 |
| Model T4 General Purpose Rotary Torque Transducer 100 Nm Capacity, +/-5VDC Output with Speed/Angle Option | T4-100-A3A | $4,705.00 |
| Model T4 General Purpose Rotary Torque Transducer 2 Nm Capacity, +/-5VDC Output with Speed/Angle Option | T4-2-A3A | $4,800.00 |
| Model T4 General Purpose Rotary Torque Transducer 5 Nm Capacity, +/-5VDC Output with Speed/Angle Option | T4-5-A3A | $4,800.00 |
| Torque Transducer Rotary General Purpose | T4-10-A3A | $4,800.00 |
| Model T4 General Purpose Rotary Torque Transducer 20 Nm Capacity, +/-5VDC Output with Speed/Angle Option | T4-20-A3A | $4,800.00 |
| Model T4 General Purpose Rotary Torque Transducer 200 Nm Capacity, +/-5VDC Output with Speed/Angle Option | T4-200-A3A | $5,160.00 |
| Model T4 General Purpose Rotary Torque Transducer 500 Nm Capacity, +/-5VDC Output with Speed/Angle Option | T4-500-A3A | $5,225.00 |
| Model T4 General Purpose Rotary Torque Transducer 0.1 Nm Capacity, +/-5VDC Output with Speed/Angle Option | T4-0.1-A3A | $4,800.00 |
×
![]()
