Features and Benefits
- Nominal torque from 1 Nm to 100 Nm (8.85 lbf-in to 885 lbf-in)
- Both shaft ends with keys
- Very short axial length
- High torsional stiffness
- Available with Enhanced Accuracy -0.1%
TS21 Miniature Shaft Style Reaction Torque Transducer
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
TS21 Miniature Shaft Style Reaction Torque Transducer
Shaft-type
8.85 lbf-in to 885 lbf-in
1 Nm to 100 Nm

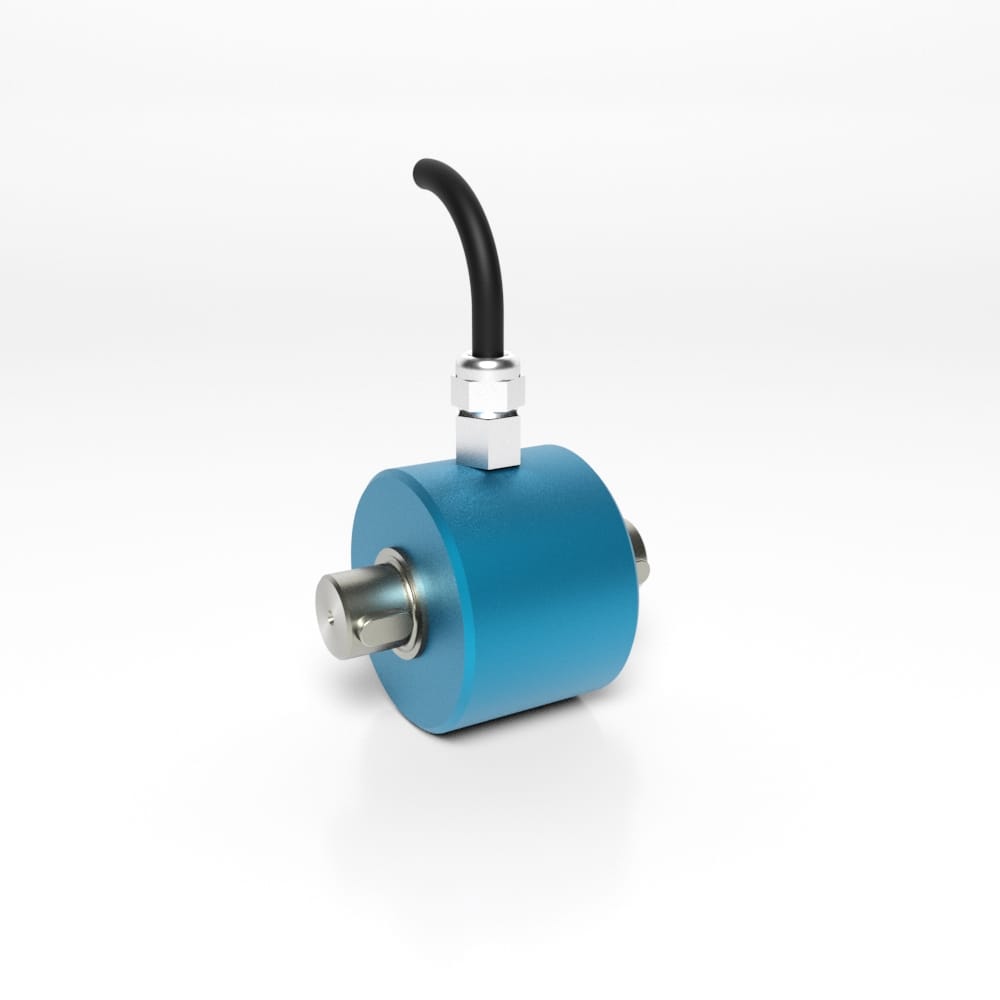

Model TS21 miniature shaft style reaction torque transducer features keyed shafts and a compact package with short overall length. The keyed shafts allow positive engagement with fixtures or couplings.
Product Downloads
Model TS21 miniature shaft style reaction torque transducer features keyed shafts and a compact package with short overall length. The keyed shafts allow positive engagement with fixtures or couplings.
- Compact, Floating, Miniature, Shaft Style
- Reaction (Static)
- 0.30 lbs
- 1.50 × 2.00 × 1.50 in
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| ELECTRICAL CONNECTION | |
| COLOR | FUNCTION |
| GREEN | - EXCITATION |
| BROWN | + EXCITATION |
| YELLOW | + SIGNAL |
| WHITE | - SIGNAL |
| GRAY | CONTROL SIGNAL OR TEDS (OPTION) |
| SHIELDING | SHIELD |
Additional Information
| Dimensions | 1.50 × 2.00 × 1.50 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Nominal torque from 1 Nm to 100 Nm (8.85 lbf-in to 885 lbf-in)
- Both shaft ends with keys
- Very short axial length
- High torsional stiffness
- Available with Enhanced Accuracy -0.1%
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| ELECTRICAL CONNECTION | |
| COLOR | FUNCTION |
| GREEN | - EXCITATION |
| BROWN | + EXCITATION |
| YELLOW | + SIGNAL |
| WHITE | - SIGNAL |
| GRAY | CONTROL SIGNAL OR TEDS (OPTION) |
| SHIELDING | SHIELD |
Additional Information
| Dimensions | 1.50 × 2.00 × 1.50 in |
|---|
Product Video
Additional Products
