Features and Benefits
- 300K lbf-in to 3,000K lbf-in capacities (34K Nm to 340K Nm)
- Male square on each end
- High stiffness
- 2X save overload
- Fully calibrated, CW and CCW

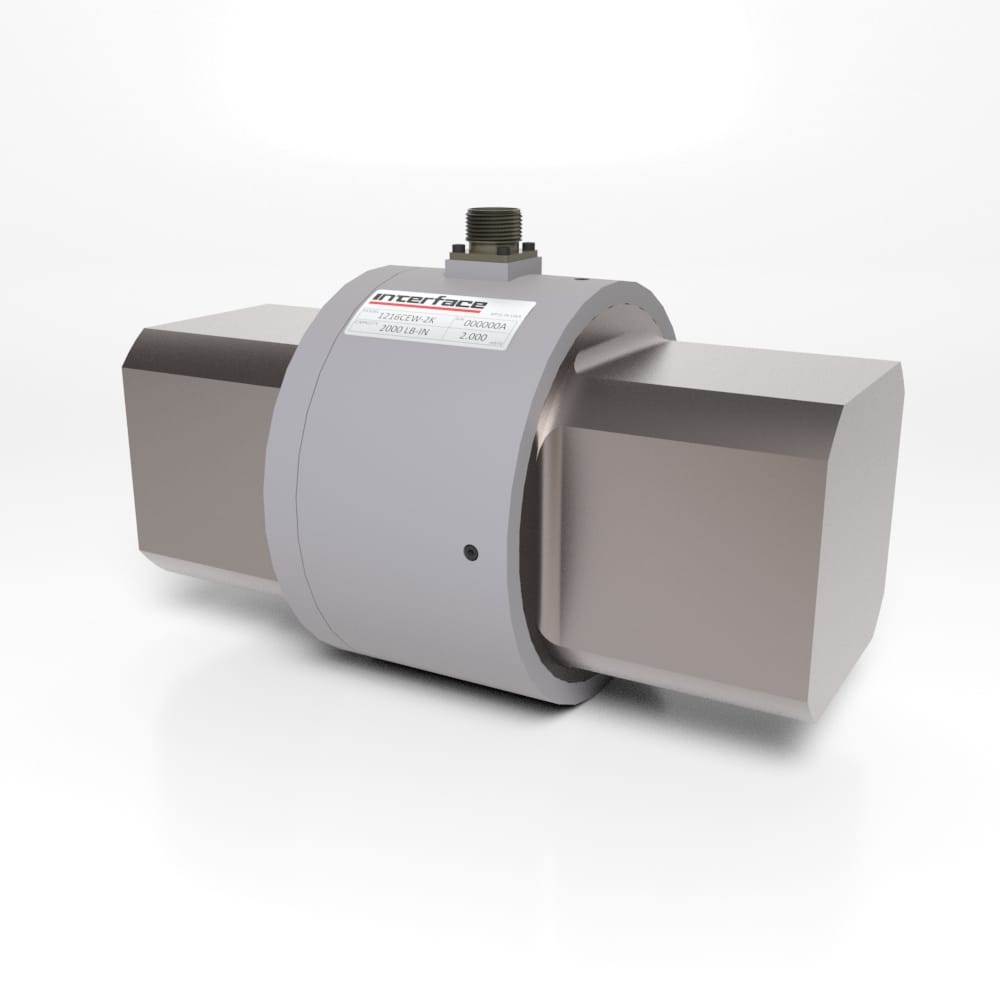

TSQ High Capacity Square Drive Style Reaction Torque Transducer
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
TSQ High Capacity Square Drive Style Reaction Torque Transducer
Square Drive-type
300K lbf-in to 3,000K lbf-in
34K Nm to 340K Nm
Model TSQ product comes calibrated in clockwise and counter clockwise directions and is available in capacities ranging from 300K to 3,000K lbf-in (34K to 340K Nm).
Model TSQ product comes calibrated in clockwise and counter clockwise directions and is available in capacities ranging from 300K to 3,000K lbf-in (34K to 340K Nm).
- Floating, Square Style
- Reaction (Static)
- 0.00 lbs
- 4.00 × 10.75 × 3.25 in
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| A | + EXCITATION |
| B | + SENSE |
| C | - SENSE |
| D | - EXCITATION |
| E | - SIGNAL |
| F | + SIGNAL |
Additional Information
| Dimensions | 4.00 × 10.75 × 3.25 in |
|---|
