Pedestal Mount Double Flex Couplings

951H321 M32 XXX

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

Pedestal Mount Double Flex Couplings

Pedestal Mount

Get Your Free Quote

50 Nm to 1000 Nm
442 lbf-in to 8850 lbf-in

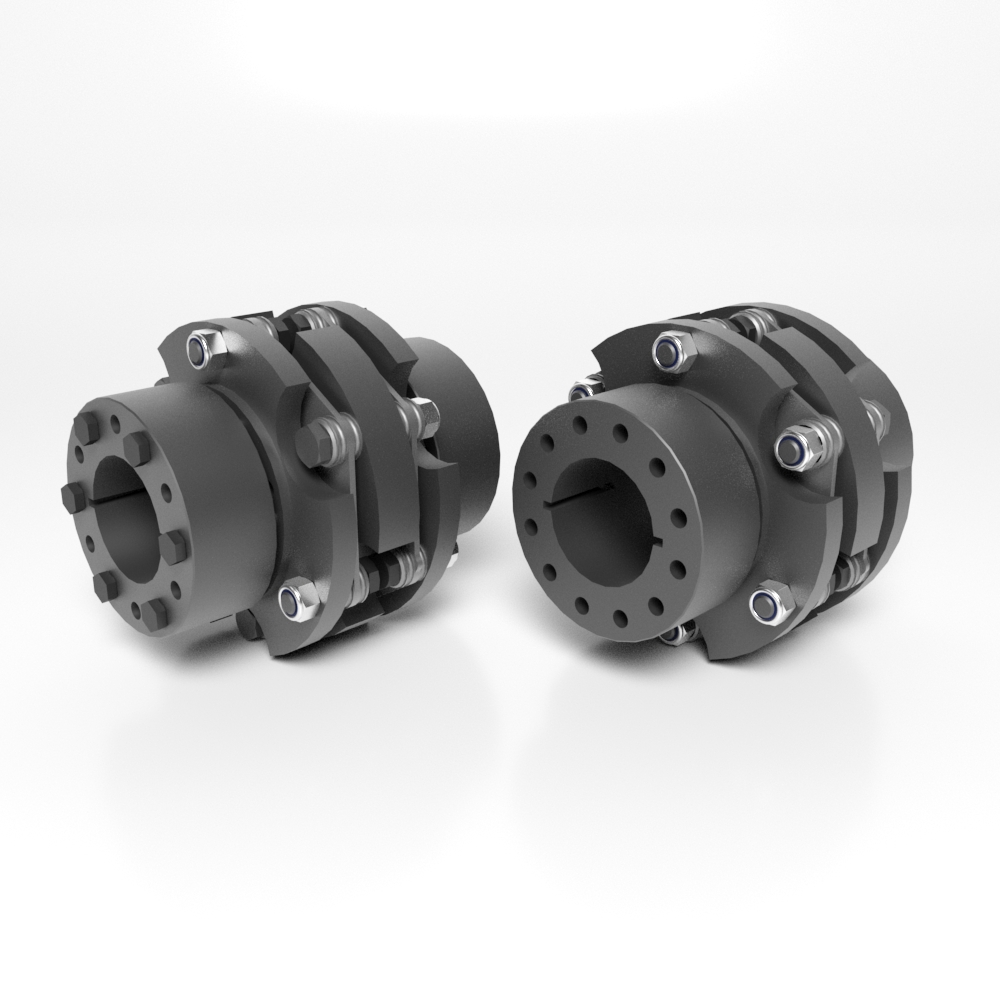

Pedestal Mount Double Flex Couplings are designed for fixed torque transducer installations where high torsional stiffness and accurate torque transmission are required while allowing for minor misalignment between shafts. The transducer side of the coupling uses a shrink disk hub, providing a secure, backlash-free connection to smooth shafts without the need for keys. On the customer side, three hub configurations are available to accommodate different mounting requirements. The shrink disk hub version is intended for smooth shaft connections where precise concentric clamping is needed, the keyed hub version provides a traditional keyed interface for positive mechanical engagement, and the clamping ring hub version uses a split clamping design for easy installation and strong holding force without keyways. These configuration options make the Pedestal Mount Double Flex Couplings suitable for a wide range of fixed torque sensor applications requiring reliable, repeatable performance. These couplings are available for the following torque sensors:

  • T3 Ultra Precision Pedestal Mount Shaft Style Rotary Torque Transducer – 50 to 20k Nm (442 to 177K lbf-in)
  • T5 Standard Precision Pedestal Mount Shaft Style Rotary Torque Transducer – 50 – 1k Nm (442 to 8.85K lbf-in)
  • T7 Dual Range Pedestal Mount Shaft Style Rotary Torque Transducer – 5/50 – 2k/20k Nm (44/442 to 27/17.7K lbf-in)
  • T8 General Purpose Shaft Style Rotary Torque Transducer – 50 – 200 Nm (442 to 1.77K lbf-in)
  • T25 High Speed Shaft Style Rotary Torque Transducer – 50 – 5k Nm (442 to 44.2K lbf-in)

Product Downloads

Pedestal Mount Double Flex Couplings are designed for fixed torque transducer installations where high torsional stiffness and accurate torque transmission are required while allowing for minor misalignment between shafts.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: N/A Categories: , , Tag:

Features and Benefits

  • Capacities: 50 to 5K Nm (442 to 44.3K lbf-in)
  • For fixed torque sensor installation
  • Shrink Disk Hubs

Specifications

Specifications

Shrink Disk Pedestal Mount Double Flex Couplings

Model Capacity Transducer Side Customer Side Coupling Model Coupling Size Sensor Shaft Customer Shaft
Nm lbf-in Hub Type Hub Type
T3, T5, T7, T8, T25 50-100 36.9-73.76 shrink disk shrink disk 951E321-M18-XXX 16 18 14-26
T3, T5, T7, T25 200 147.5 shrink disk shrink disk 951F321-M32-XXX 25 32 20-36
T3, T5, T7, T25 500 368.8 shrink disk shrink disk 951H321-M32-XXX 64 32 30-45
T3, T5, T7 1K 737.6 shrink disk shrink disk 951J321-M50-XXX 100 50 35-55
T3, T5, T7, T25 2K 1475.1 shrink disk shrink disk 951L221-M70-XXX 300 70 50-85
T3, T5, T7, T25 5K 3687.8 shrink disk shrink disk 951M221-M70-XXX 500 70 60-100
T3, T5, T7 10K 7375.6 shrink disk shrink disk 951P221-M110-XXX 1400 110 80-140
T8 100 73.76 shrink disk shrink disk 951E321-M22-XXX 16 22 14-26
T8 200 147.5 shrink disk shrink disk 951F321-M22-XXX 25 22 20-36
T25 1K 737.6 shrink disk shrink disk 951J321-M42-XXX 100 42 35-55

Keyed/Keyed Large Pedestal Mount Double Flex Couplings

Model Capacity Transducer Side Customer Side Coupling Model Coupling Size Sensor Shaft Customer Shaft
Nm lbf-in Hub Type Hub Type
T3, T5, T7, T25 50-100 36.9-73.76 shrink disk keyed 951E301-M18-XXXK 16 18 16-32
T3, T5, T7, T25 50-100 36.9-73.76 shrink disk keyed large 951E311-M18-XXXK 16 18 30-45
T3, T5, T7, T25 200 147.5 shrink disk keyed large 951F311-M32-XXXK 25 32 35-55
T3, T5, T7, T25 500 368.8 shrink disk keyed 951H301-M32-XXXK 64 32 30-55
T3, T5, T7, T25 500 368.8 shrink disk keyed large 951H311-M32-XXXK 64 32 55-75
T3, T5, T7 1K 737.6 shrink disk keyed 951J301-M50-XXXK 100 50 35-70
T3, T5, T7 1K 737.6 shrink disk keyed large 951J311-M50-XXXK 100 50 65-95
T3, T5, T7, T25 2K 1475.1 shrink disk keyed 951L201-M70-XXXK 300 70 45-90
T3, T5, T7, T25 5K 3687.8 shrink disk keyed 951M201-M70-XXXK 500 70 55-105
T3, T5, T7 10K 7375.6 shrink disk keyed 951P201-M110-XXXK 1400 110 75-140
T8 50 36.9 shrink disk keyed 951E301-M18-XXX 16 18 16-32
T8 50 36.9 shrink disk keyed large 951E311-M18-XXX 16 18 30-45
T8 100 73.76 shrink disk keyed 951E301-M22-XXX 16 22 16-32
T8 100 73.76 shrink disk keyed large 951E311-M22-XXX 16 22 30-45
T8 200 147.5 shrink disk keyed 951F301-M22-XXX 25 22 20-40
T8 200 147.5 shrink disk keyed large 951F311-M22-XXX 25 22 35-55
T25 200 147.5 shrink disk keyed 951F301-M32-XXXK 25 32 20-40
T25 1K 737.6 shrink disk keyed 951J301-M42-XXXK 100 42 35-70
T25 1K 737.6 shrink disk keyed large 951J311-M42-XXXK 100 42 65-95

Clamping Ring Pedestal Mount Double Flex Couplings

Model Capacity Transducer Side Customer Side Coupling Model Coupling Size Sensor Shaft Customer Shaft
Nm lbf-in Hub Type Hub Type
T3, T5, T7, T8, T25 50-100 36.9-73.76 shrink disk clamping ring 951E341-M18-XXX 16 18 25-35
T3, T5, T7, T25 200 147.5 shrink disk clamping ring 951F341-M32-XXX 25 32 30-40
T3, T5, T7, T25 500 368.8 shrink disk clamping ring 951H341-M32-XXX 64 32 35-55
T3, T5, T7 1K 737.6 shrink disk clamping ring 951J341-M50-XXX 100 50 40-68
T8 100 73.76 shrink disk clamping ring 951E341-M22-XXX 16 22 25-35
T8 200 147.5 shrink disk clamping ring 951F341-M22-XXX 25 22 30-40
T25 1K 737.6 shrink disk clamping ring 951J341-M42-XXX 100 42 40-68

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions


Shrink Disk Pedestal Mount Double Flex Couplings

Model (1) (2) (3) (4) (5) (6) Standard Shrink Disk Hub Large Shrink Disk Hub
mm in mm in mm in mm in mm in mm in (7) (8)
mm in mm in
951E321-M18-XXX Ø 77 Ø 3.03 35 1.38 Ø 53 Ø 2.09 40 1.57 26.2 1.03 Ø 77 Ø 3.03 Ø 14-26 Ø 0.5-1.0 Ø 25-45 Ø 0.98-1.77
951F321-M32-XXX Ø 89 Ø 3.50 40 1.57 Ø 64 Ø 2.52 45 1.77 26.4 1.04 Ø 82 Ø 3.23 Ø 20-36 Ø 0.7-1.4 Ø 32-52 Ø 1.26-2.05
951H321-M32-XXX Ø 123 Ø 4.84 50 1.97 Ø 84 Ø 3.31 55 2.16 37.2 1.46 Ø 115 Ø 4.53 Ø 30-45 Ø 1.1-1.7 Ø 45-70 Ø 1.77-2.75
951J321-M50-XXX Ø 143 Ø 5.63 55 2.16 Ø 104 Ø 4.09 60 2.36 38.0 1.50 Ø 143 Ø 5.63 Ø 35-55 Ø 1.3-2.1 Ø 55-90 Ø 2.16-3.54
951L221-M70-XXX Ø 167 Ø 6.57 75 2.95 Ø 164 Ø 6.45 - - 44.4 1.75 - - Ø 50-85 Ø 2.0-3.4 - -
951M221-M70-XXX Ø 198 Ø 7.80 95 3.74 Ø 198 Ø 7.95 - - 52.0 2.05 - - Ø 60-100 Ø 2.4-3.9 - -
951P221-M110-XXX Ø 274 Ø 10.79 130 5.12 Ø 274 Ø 10.79 - - 74.0 2.91 - - Ø 80-140 Ø 3.2-5.5 - -
951E321-M22-XXX Ø 77 Ø 3.03 35 1.38 Ø 53 2.09 40 1.57 26.2 1.03 Ø 77 Ø 3.03 Ø 14-26 Ø 0.5-1.0 Ø 25-45 Ø 0.98-1.77
951F321-M22-XXX Ø 89 Ø 3.50 40 1.57 Ø 64 2.52 45 1.77 26.4 1.04 Ø 82 Ø 3.23 Ø 20-36 Ø 0.7-1.4 Ø 32-52 Ø 1.26-2.05
951J321-M42-XXX Ø 143 5.63 55 2.16 Ø 104 4.09 60 2.36 38.0 1.50 Ø 143 Ø 5.63 Ø 35-55 Ø 1.3-2.1 Ø 55-90 Ø 2.16-3.54


Keyed/Keyed Large Pedestal Mount Double Flex Couplings

Model (1) (2) (3) (4) (5) Standard Shrink Disk Hub Large Shrink Disk Hub
mm in mm in mm in mm in mm in (6) (7)
mm in mm in
951E301-M18-XXXK Ø 77 Ø 3.0 40 Ø 1.6 Ø 50 Ø 2.0 35 1.4 26.2 1.03 Ø 16-32 Ø 0.63-1.26 Ø 30-45 Ø 1.18-1.77
951E311-M18-XXXK Ø 77 Ø 3.0 40 Ø 1.6 Ø 50 Ø 2.0 35 1.4 26.2 1.03 Ø 16-32 Ø 0.63-1.26 Ø 30-45 Ø 1.18-1.77
951F311-M32-XXXK Ø 89 Ø 3.5 45 Ø 1.8 Ø 60 Ø 2.4 40 1.6 26.4 1.04 Ø 20-40 Ø 0.79-1.57 Ø 35-55 Ø 1.38-2.16
951H301-M32-XXXK Ø 123 Ø 4.8 65 Ø 2.6 Ø 80 Ø 3.1 50 2.0 37.2 1.46 Ø 30-55 Ø 1.18-2.16 Ø 55-75 Ø 2.16-2.95
951H311-M32-XXXK Ø 123 Ø 4.8 65 Ø 2.6 Ø 80 Ø 3.1 50 2.0 37.2 1.46 Ø 30-55 Ø 1.18-2.16 Ø 55-75 Ø 2.16-2.95
951J301-M50-XXXK Ø 143 Ø 5.6 75 Ø 2.9 Ø 100 Ø 3.9 55 2.2 38.0 1.50 Ø 35-70 Ø 1.38-2.76 Ø 65-95 Ø 2.56-3.74
951J311-M50-XXXK Ø 143 Ø 5.6 75 Ø 2.9 Ø 100 Ø 3.9 55 2.2 38.0 1.50 Ø 35-70 Ø 1.38-2.76 Ø 65-95 Ø 2.56-3.74
951L201-M70-XXXK Ø 167 Ø 6.6 90 Ø 3.5 Ø 121 Ø 4.8 75 2.9 44.4 1.74 Ø 45-90 Ø 1.77-3.54 - -
951M201-M70-XXXK Ø 198 Ø 7.8 100 Ø 3.9 Ø 141 Ø 5.6 95 3.7 52.0 2.05 Ø 55-105 Ø 2.16-4.13 - -
951P201-M110-XXXK Ø 274 Ø 10.8 150 Ø 5.9 Ø 190 Ø 7.5 130 5.1 74.0 2.91 Ø 75-140 Ø 2.95-5.51 - -
951E301-M18-XXX Ø 77 Ø 3.0 40 Ø 1.6 Ø 50 Ø 2.0 35 1.4 26.2 1.03 Ø 16-32 Ø 0.63-1.26 Ø 30-45 Ø 1.18-1.77
951E311-M18-XXX Ø 77 Ø 3.0 40 Ø 1.6 Ø 50 Ø 2.0 35 1.4 26.2 1.03 Ø 16-32 Ø 0.63-1.26 Ø 30-45 Ø 1.18-1.77
951E301-M22-XXX Ø 77 Ø 3.0 40 Ø 1.6 Ø 50 Ø 2.0 35 1.4 26.2 1.03 Ø 16-32 Ø 0.63-1.26 Ø 30-45 Ø 1.18-1.77
951E311-M22-XXX Ø 77 Ø 3.0 40 Ø 1.6 Ø 50 Ø 2.0 35 1.4 26.2 1.03 Ø 16-32 Ø 0.63-1.26 Ø 30-45 Ø 1.18-1.77
951F301-M22-XXX Ø 89 Ø 3.5 45 Ø 1.8 Ø 60 Ø 2.4 40 1.6 26.4 1.04 Ø 20-40 Ø 0.79-1.57 Ø 35-55 Ø 1.38-2.16
951F311-M22-XXX Ø 89 Ø 3.5 45 Ø 1.8 Ø 60 Ø 2.4 40 1.6 26.4 1.04 Ø 20-40 Ø 0.79-1.57 Ø 35-55 Ø 1.38-2.16
951F301-M32-XXXK Ø 89 Ø 3.5 45 Ø 1.8 Ø 60 Ø 2.4 40 1.6 26.4 1.04 Ø 20-40 Ø 0.79-1.57 Ø 35-55 Ø 1.38-2.16
951J301-M42-XXXK Ø 143 Ø 5.6 75 Ø 2.9 Ø 100 Ø 3.9 55 2.2 38.0 1.50 Ø 35-70 Ø 1.38-2.76 Ø 65-95 Ø 2.56-3.74
951J311-M42-XXXK Ø 143 Ø 5.6 75 Ø 2.9 Ø 100 Ø 3.9 55 2.2 38.0 1.50 Ø 35-70 Ø 1.38-2.76 Ø 65-95 Ø 2.56-3.74


Clamping Ring Pedestal Mount Double Flex Couplings

Model (1) (2) (3) (4) (5) Standard Shrink Disk Hub Large Shrink Disk Hub
mm in mm in mm in mm in mm in (6)
mm in Hub Type Hub Bore
951E341-M18-XXX Ø 77 Ø 3.0 40 1.6 Ø 73 Ø 2.9 35 1.4 26.2 1.03 Ø 20-35 Ø 0.7-1.3 shrink disk M18
951F341-M32-XXX Ø 89 Ø 3.5 45 1.8 Ø 84 Ø 3.3 40 1.6 26.4 1.04 Ø 22-40 Ø 0.9-1.6 shrink disk M32
951H341-M32-XXX Ø 123 Ø 4.8 65 2.6 Ø 115 Ø 4.5 50 2.0 37.2 1.46 Ø 28-55 Ø 1.1-2.1 shrink disk M32
951J341-M50-XXX Ø 143 Ø 5.6 75 2.9 Ø 135 Ø 5.3 55 2.2 38.0 1.50 Ø 32-68 Ø 1.2-2.7 shrink disk M50
951E341-M22-XXX Ø 77 Ø 3.0 40 1.6 Ø 73 Ø 2.9 35 1.4 26.2 1.03 Ø 20-35 Ø 0.7-1.3 shrink disk M22
951F341-M22-XXX Ø 89 Ø 3.5 45 1.8 Ø 84 Ø 3.3 40 1.6 26.4 1.04 Ø 22-40 Ø 0.9-1.6 shrink disk M22
951J341-M42-XXX Ø 143 Ø 5.6 75 2.9 Ø 135 Ø 5.3 55 2.2 38.0 1.50 Ø 32-68 Ø 1.2-2.7 shrink disk M42

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
