Features and Benefits
- Proprietary Interface temperature compensated strain gages
- Overload protected in both tension and compression
- Safe overload to 10X capacity
- High performance
- Low creep
- 1 to 450 lbf
SMT Overload Protected S-Type Load Cell
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
SMT Overload Protected S-Type Load Cell
Overload Protected S-Type
1.1 lbf to 450 lbf
5 N to 2000 N

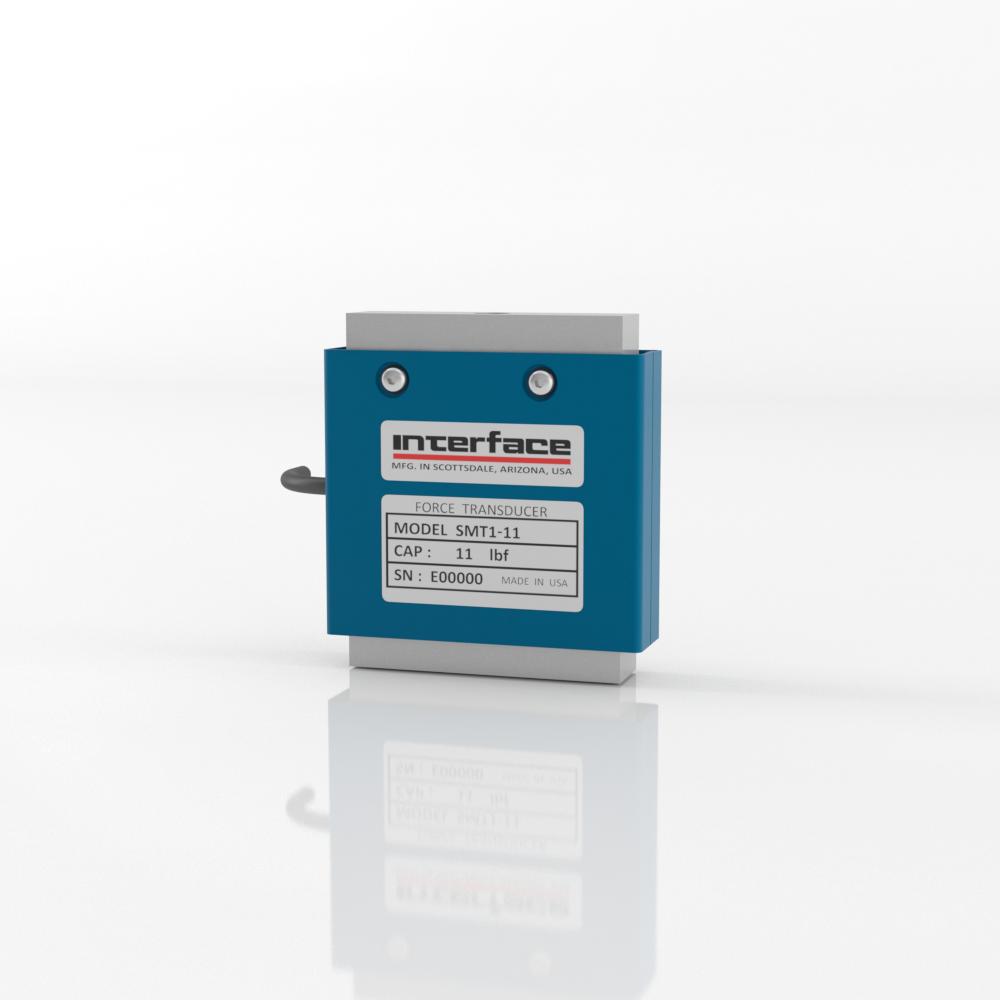

Model SMT is ideal for low capacity applications where loads cells are often inadvertently overloaded. The SMT has internal mechanical stops which prevents overloads for up to 10 times the rated capacity.
Product Downloads
Model SMT is ideal for low capacity applications where loads cells are often inadvertently overloaded. The SMT has internal mechanical stops which prevents overloads for up to 10 times the rated capacity.
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Dimensions
Dimensions
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Connector Pin Diagram
| CABLE CONNECTION | |
| COLOR | FUNCTION |
| RED | + EXCITATION |
| GREEN | + SIGNAL |
| WHITE | - SIGNAL |
| BLACK | - EXCITATION |
| SHIELD | N/C |
| TENSION UPSCALE | |
| LOAD CELL INTERGRAL CABLES | |||||
| CABLE TYPE | WIRE SIZE | NUMBER OF WIRES | SHEILD | CABLE LENGTH | DESCRIPTION |
| D | 28 AWG | 4 | SPIRAL | 10 FT (3 M) | ULTRA-FLEXIBLE, BLACK PVC JACKET |
