Features and Benefits
- Capacities from 100 kN to 600 kN (22.5K to 134.8K lbf)
- Short height
- Large thru-hole
- For press-force monitoring
LWPF2 High Capacity Press Force Load Washer Load Cell
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
LWPF2 High Capacity Press Force Load Washer Load Cell
Press Force Load Cell
22.5K to 157K lbf
100 kN to 700 kN

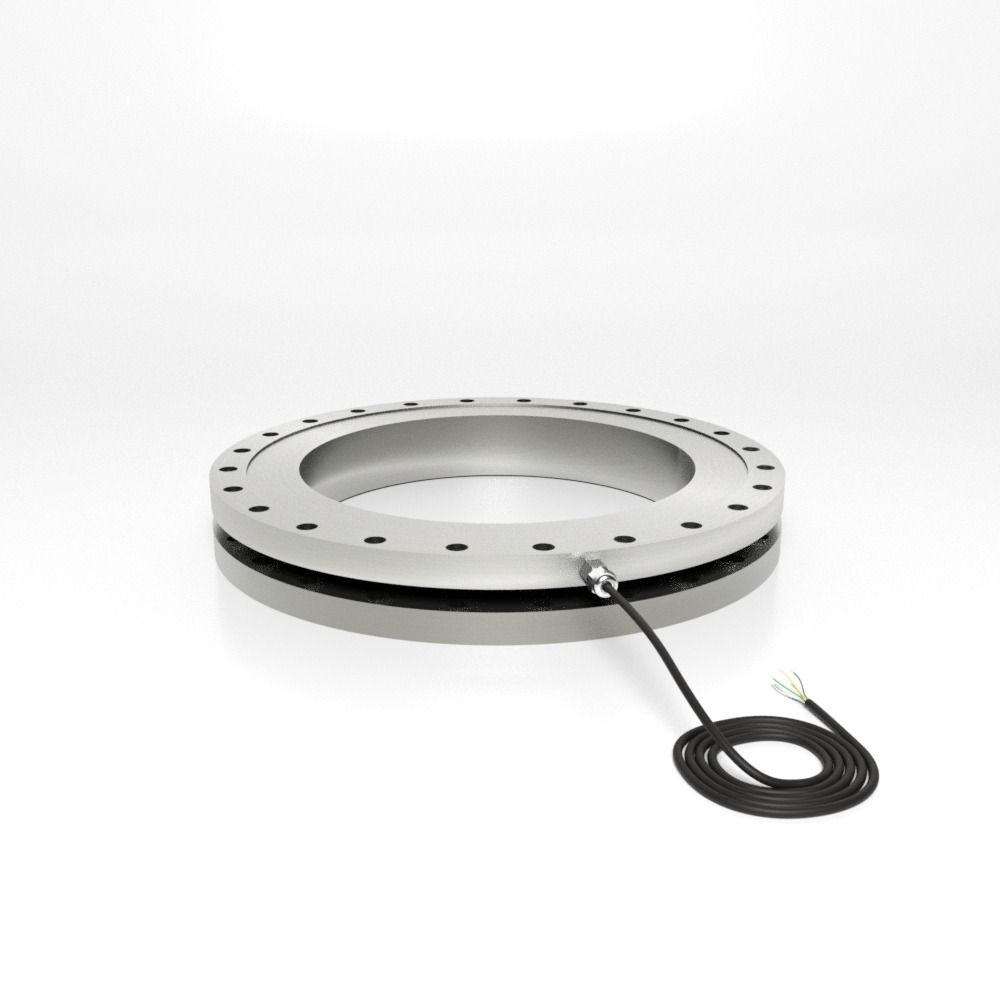

Model LWPF2 Press Force Load Cell features a large thru-hole and short overall height. This product is available in capacities ranging from 100 kN to 600 kN (22.5K to 134.8K lbf).
Product Downloads
Model LWPF2 Press Force Load Cell features a large thru-hole and short overall height. This product is available in capacities ranging from 100 kN to 600 kN (22.5K to 134.8K lbf).
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Loading Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| FORCE/TORQUE [N/Nm] ELECTRICAL CONNECTION | |
| COLOR | FUNCTION |
| GREEN | - EXCITATION |
| BROWN | + EXCITATION |
| YELLOW | + SIGNAL |
| WHITE | - SIGNAL |
| GRAY | CONTROL SIGNAL (OPTION) |
| SHEILD | SHIELDING |
| ELECTRICAL CONNECTION ONLY FOR VERSION WITH TEDS (OPTION) | |
| PIN | FUNCTION |
| 2 | - EXCITATION |
| 3 | + EXCITATION |
| 5 | + SIGNAL |
| 10 | - SIGNAL |
| 6 | TEDS (GND) |
| 1 | TEDS (DATA +) |
| 8 BRIDGED WITH 3 | + SENSING |
| 7 BRIDGED WITH 2 | - SENSING |
| 4 BRIDGED WITH 9 | - |
| HOUSING | SHIELDING |
| 11 - 15 | N/C |
Loading Diagram
Additional Information
| Dimensions | 7.00 × 7.00 × 7.00 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Loading Diagram
- Shipping Information
- Product Video
Features and Benefits
- Capacities from 100 kN to 600 kN (22.5K to 134.8K lbf)
- Short height
- Large thru-hole
- For press-force monitoring
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| FORCE/TORQUE [N/Nm] ELECTRICAL CONNECTION | |
| COLOR | FUNCTION |
| GREEN | - EXCITATION |
| BROWN | + EXCITATION |
| YELLOW | + SIGNAL |
| WHITE | - SIGNAL |
| GRAY | CONTROL SIGNAL (OPTION) |
| SHEILD | SHIELDING |
| ELECTRICAL CONNECTION ONLY FOR VERSION WITH TEDS (OPTION) | |
| PIN | FUNCTION |
| 2 | - EXCITATION |
| 3 | + EXCITATION |
| 5 | + SIGNAL |
| 10 | - SIGNAL |
| 6 | TEDS (GND) |
| 1 | TEDS (DATA +) |
| 8 BRIDGED WITH 3 | + SENSING |
| 7 BRIDGED WITH 2 | - SENSING |
| 4 BRIDGED WITH 9 | - |
| HOUSING | SHIELDING |
| 11 - 15 | N/C |
Loading Diagram
Additional Information
| Dimensions | 7.00 × 7.00 × 7.00 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model LWPF2 Press Force Load Washer 100KN Capacity with 3-meter Integral Cable | LWPF2-100KN | $3,740.00 |
| Model LWPF2 Press Force Load Washer 200KN Capacity with 3-meter Integral Cable | LWPF2-200KN | $3,935.00 |
| Model LWPF2 Press Force Load Washer 300KN Capacity with 3-meter Integral Cable | LWPF2-300KN | $5,615.00 |
| Model LWPF2 Press Force Load Washer 400KN Capacity with 3-meter Integral Cable | LWPF2-400KN | $6,220.00 |
| Model LWPF2 Press Force Load Washer 600KN Capacity with 3-meter Integral Cable | LWPF2-600KN | $7,705.00 |
×
![]()
