Features and Benefits
- Capacities from 5 kN to 5,000 kN (1.12K to 1,124K lbf)
- IP67 Environmental Protection
- Stainless Steel Construction
LWHP18 High Capacity Precision Load Washer Load Cell
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
LWHP18 High Capacity Precision Load Washer Load Cell
Stainless Steel Load Washer
1.12K lbf to 1124K lbf
5 kN to 5000 kN

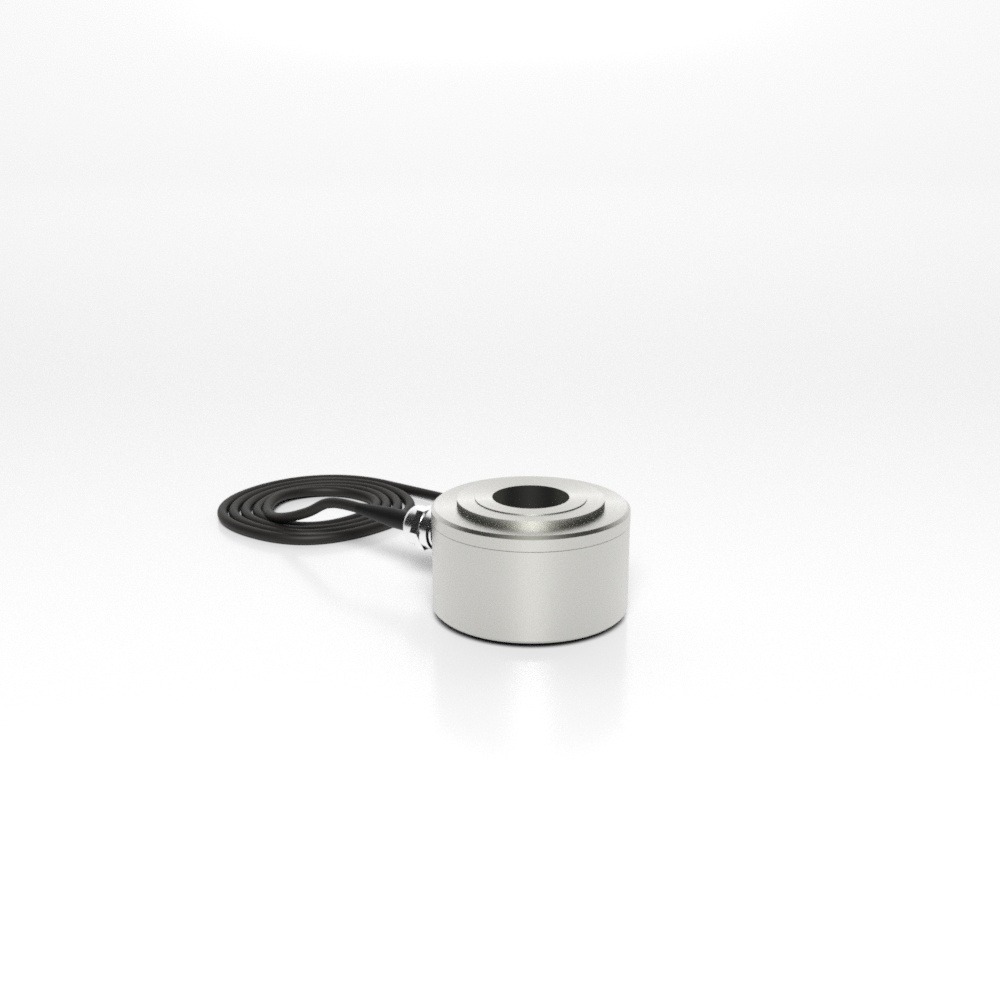

Model LWHP18 Load Washer is designed for use in force applications. Typical uses include monitoring the force required to press two parts together. This product is constructed from stainless steel and is available in capacities ranging from 5 kN to 5,000 kN (112.4 to 1,124K lbf).
Product Downloads
- Data Sheet
- LWHP18 5kN STP File
- LWHP18 10kN STP File
- LWHP18 20kN STP File
- LWHP18 50kN STP File
- LWHP18 100kN STP File
- LWHP18 200kN STP File
- LWHP18 500kN STP File
- LWHP18 1000kN STP File
- LWHP18 2000kN STP File
- LWHP18 3000kN STP File
- LWHP18 5000kN STP File
- LWHP18 5kN Drawing
- LWHP18 10kN Drawing
- LWHP18 20kN Drawing
- LWHP18 50kN Drawing
- LWHP18 100kN Drawing
- LWHP18 200kN Drawing
- LWHP18 500kN Drawing
- LWHP18 1000kN Drawing
- LWHP18 2000kN Drawing
- LWHP18 3000kN Drawing
- LWHP18 5000kN Drawing
Model LWHP18 Load Washer is designed for use in force applications. Typical uses include monitoring the force required to press two parts together. This product is constructed from stainless steel and is available in capacities ranging from 5 kN to 5,000 kN (112.4 to 1,124K lbf).
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions - 5 kN
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions - 10 kN - 50 kN
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions - 100 kN - 200 kN
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions - 500 kN - 5
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| FORCE/TORQUE [N/Nm] ELECTRICAL CONNECTION | |
| COLOR | FUNCTION |
| GREEN | - EXCITATION |
| BROWN | + EXCITATION |
| YELLOW | + SIGNAL |
| WHITE | - SIGNAL |
| GRAY | CONTROL SIGNAL (OPTION) |
| SHEILD | SHIELDING |
| 6-PIN ELECTRICAL CONNECTION | |
| PIN | FUNCTION |
| 1 | - EXCITATION |
| 2 | + EXCITATION |
| 3 | SHIELDING |
| 4 | + SIGNAL |
| 5 | - SIGNAL |
| 6 | CONTROL SIGNAL (OPTION) |
Additional Information
| Dimensions | 1.20 × 1.20 × 1.20 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Capacities from 5 kN to 5,000 kN (1.12K to 1,124K lbf)
- IP67 Environmental Protection
- Stainless Steel Construction
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions - 5 kN
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions - 10 kN - 50 kN
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions - 100 kN - 200 kN
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions - 500 kN - 5
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| FORCE/TORQUE [N/Nm] ELECTRICAL CONNECTION | |
| COLOR | FUNCTION |
| GREEN | - EXCITATION |
| BROWN | + EXCITATION |
| YELLOW | + SIGNAL |
| WHITE | - SIGNAL |
| GRAY | CONTROL SIGNAL (OPTION) |
| SHEILD | SHIELDING |
| 6-PIN ELECTRICAL CONNECTION | |
| PIN | FUNCTION |
| 1 | - EXCITATION |
| 2 | + EXCITATION |
| 3 | SHIELDING |
| 4 | + SIGNAL |
| 5 | - SIGNAL |
| 6 | CONTROL SIGNAL (OPTION) |
Additional Information
| Dimensions | 1.20 × 1.20 × 1.20 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model LWHP18 High Capacity Precision Load Washer Load Cell, 5kN Capacity with 10-foot Integral Cable | LWHP18-5KN | $1,245.00 |
| Model LWHP18 High Capacity Precision Load Washer Load Cell, 10kN Capacity with 10-foot Integral Cable | LWHP18-10KN | $1,245.00 |
| Model LWHP18 High Capacity Precision Load Washer Load Cell, 20kN Capacity with 10-foot Integral Cable | LWHP18-20KN | $1,245.00 |
| Model LWHP18 High Capacity Precision Load Washer Load Cell, 50kN Capacity with 10-foot Integral Cable | LWHP18-50KN | $1,245.00 |
| Model LWHP18 High Capacity Precision Load Washer Load Cell, 100kN Capacity with 10-foot Integral Cable | LWHP18-100KN | $1,450.00 |
| Model LWHP18 High Capacity Precision Load Washer Load Cell, 200kN Capacity with 10-foot Integral Cable | LWHP18-200KN | $1,235.00 |
| Model LWHP18 High Capacity Precision Load Washer Load Cell, 500kN Capacity with 10-foot Integral Cable | LWHP18-500KN | $2,050.00 |
| Model LWHP18 High Capacity Precision Load Washer Load Cell, 1000kN Capacity with 10-foot Integral Cable | LWHP18-1000KN | $2,520.00 |
| Model LWHP18 High Capacity Precision Load Washer Load Cell, 2000kN Capacity with 10-foot Integral Cable | LWHP18-2000KN | $3,260.00 |
| Model LWHP18 High Capacity Precision Load Washer Load Cell, 3000kN Capacity with 10-foot Integral Cable | LWHP18-3000KN | $4,870.00 |
| Model LWHP18 High Capacity Precision Load Washer Load Cell, 5000kN Capacity with 10-foot Integral Cable | LWHP18-5000KN | $7,945.00 |
×
![]()
