Features and Benefits
- Capacities 630 kN (140K lbf), 1000 kN (225K lbf), 2000 kN (450K lbf)
- Accuracy class 0.05% FS
- Tension and compression
- Flange mounted
- Dual bridge available
2300 High Capacity Flange Mount Column Load Cell
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
2300 High Capacity Flange Mount Column Load Cell
Flange Mount
140K lbf to 450K lbf
632 kN to 2002 kN

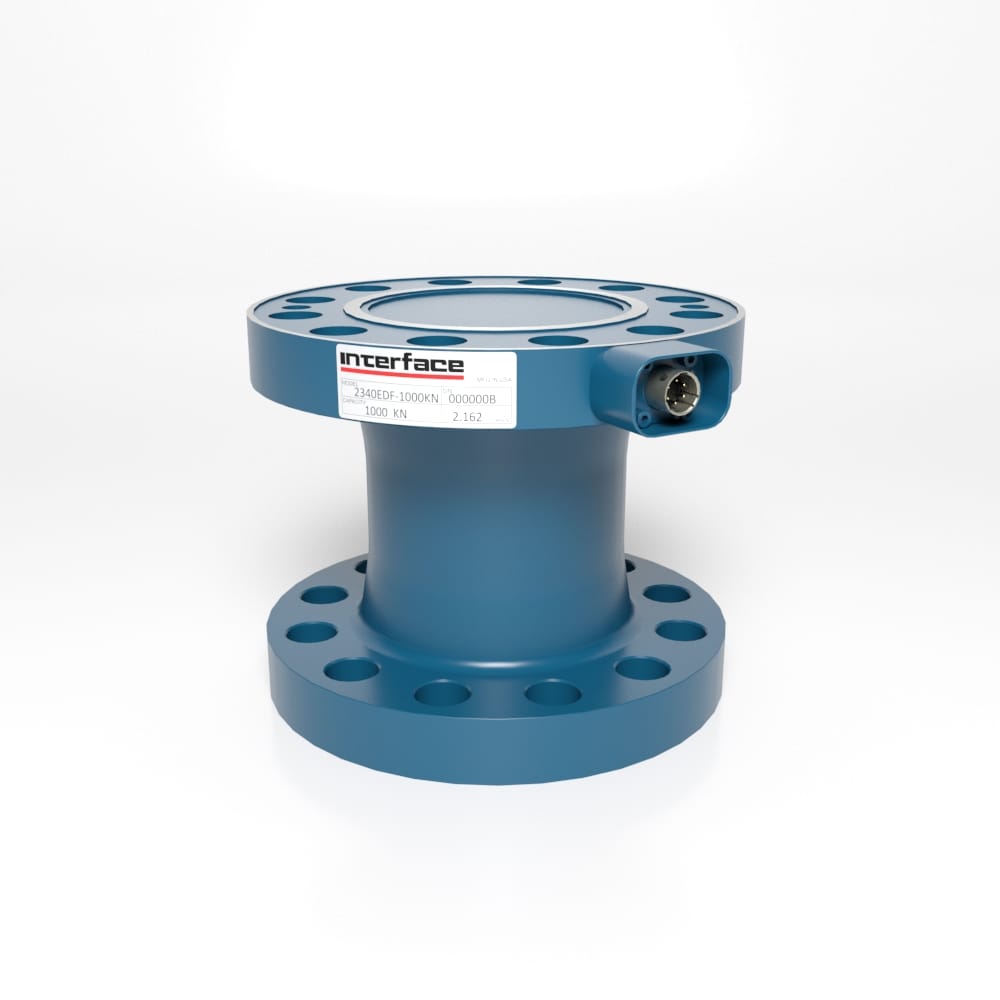

Model 2300 is a column design that has a flange mount for easy installation.
Options Available for 2nd Bridge.
Models 2330, 2340, and 2350 are available.
Product Downloads
Model 2300 is a column design that has a flange mount for easy installation.
Options Available for 2nd Bridge.
Models 2330, 2340, and 2350 are available.
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| A | + EXCITATION |
| B | + SIGNAL |
| C | - SIGNAL |
| D | - EXCITATION |
| E | - SENSE |
| F | +SENSE |
| TENSION UPSCALE | |
Additional Information
| Dimensions | 7.76 × 7.76 × 6.30 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Capacities 630 kN (140K lbf), 1000 kN (225K lbf), 2000 kN (450K lbf)
- Accuracy class 0.05% FS
- Tension and compression
- Flange mounted
- Dual bridge available
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| A | + EXCITATION |
| B | + SIGNAL |
| C | - SIGNAL |
| D | - EXCITATION |
| E | - SENSE |
| F | +SENSE |
| TENSION UPSCALE | |
Additional Information
| Dimensions | 7.76 × 7.76 × 6.30 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model 2300 High Capacity Flange Mount Column Load Cell, 630kN Capacity, PT02E-10-6P Bayonet-type Connector | 2330-630KN | $6,920.00 |
| Model 2300 High Capacity Flange Mount Column Load Cell, 1000kN Capacity, PT02E-10-6P Bayonet-type Connector | 2340-1000KN | $10,030.00 |
| Model 2300 High Capacity Flange Mount Column Load Cell, 2000 kN Capacity, PT02E-10-6P Bayonet-type Connector | 2350-2000KN | $16,245.00 |
| Model 2300 High Capacity Flange Mount Column Load Cell, 630kN Capacity, PT02E-10-6P Bayonet-type Connector | 2330XXX-630KN | $7,615.00 |
| Model 2300 High Capacity Flange Mount Column Load Cell, 1000kN Capacity, PT02E-10-6P Bayonet-type Connector | 2340XXX-1000KN | $10,030.00 |
| Model 2300 High Capacity Flange Mount Column Load Cell, 2000 kN Capacity, PT02E-10-6P Bayonet-type Connector | 2350XXX-2000KN | $16,245.00 |
×
![]()
