Features and Benefits
- Environmentally sealed
- Stainless steel construction
- Low deflection
- Tension and compression
WMC Rod End Load Cell
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

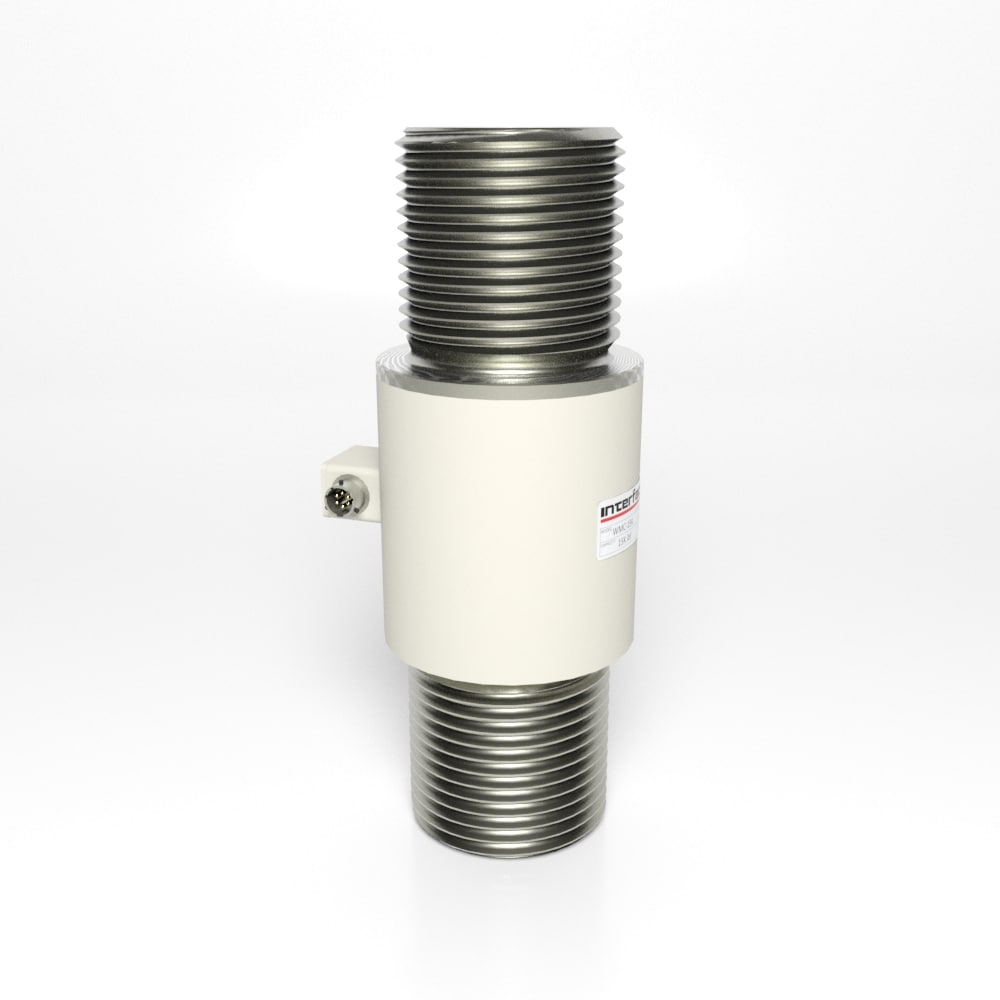

WMC Rod End Load Cell
Industrial Grade Rod End-Type
15K lbf to 200K lbf
65 kN to 900 kN
Interface Model WMC Rod End Load Cell is excellent for industrial applications because of its stainless steel, welded, environmentally protected construction. This product is available in capacities ranging from 15K to 200K lbf (65 kN to 900 kN).
Product Downloads
Interface Model WMC Rod End Load Cell is excellent for industrial applications because of its stainless steel, welded, environmentally protected construction.
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
Dimensions
Dimensions
Connector Pin Diagram
| CONNECTOR PINOUT | ||
| PIN | FUNCTION | |
| W/O TEDS | WITH TEDS | |
| A | + EXCITATION | + EXCITATION |
| B | + SENSE | + OUTPUT |
| C | - EXCITATION | - OUTPUT |
| D | - SENSE | - EXCITATION |
| E | - SIGNAL | TEDS DATA |
| F | + SIGNAL | TEDS GROUND |
| TENSION UPSCALE | ||
