Features and Benefits
- Measures force and torque
- Minimal cross-talk
- Extraneous load resistance
- Fatigue-rated

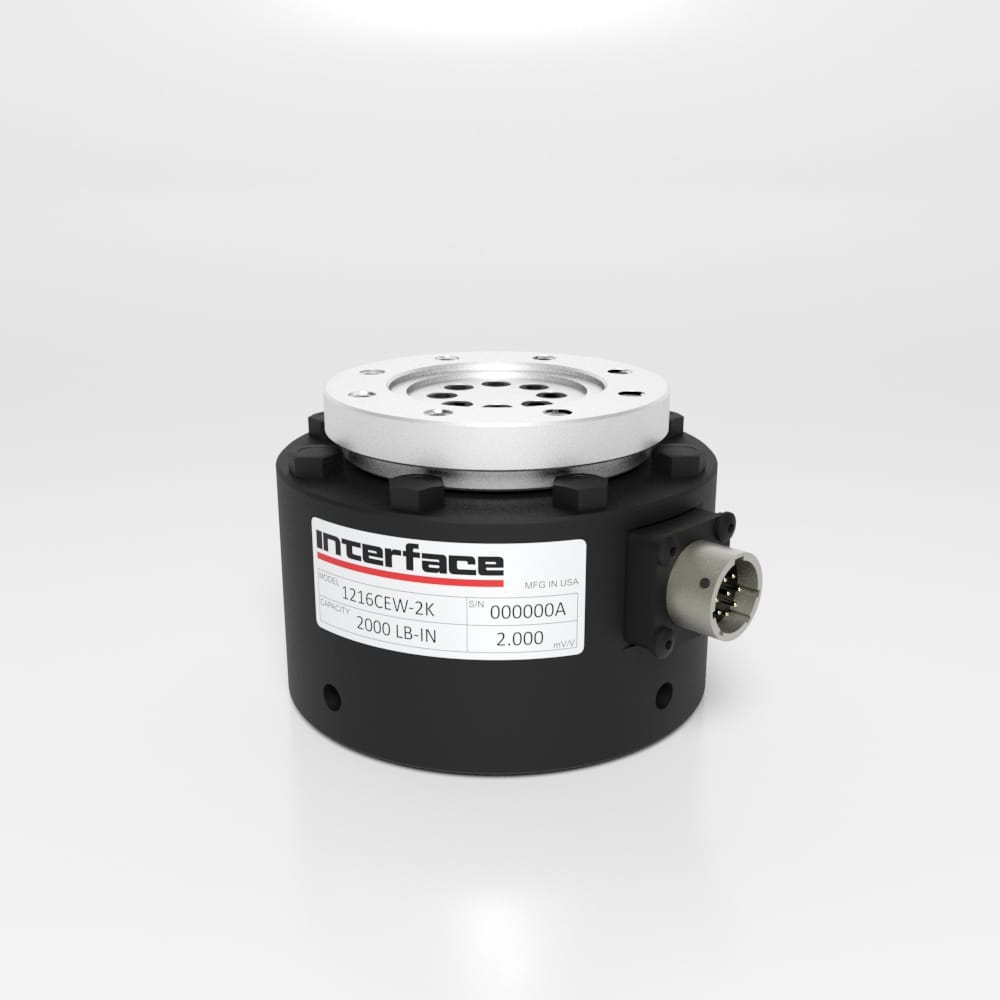

1216 2-Axis Axial Torsion Load Cell
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
1216 2-Axis Axial Torsion Load Cell
Force & Torque Flange Mount
Force: 250 to 2K lbf
Torque: 125 to 1K lbf-in
Force: 1.11 to 8.9 kN
Torque: 14.1 to 113 Nm
Model 1216 Axial-Torsion load cell measure both force and torsion in the same cell – with either channel capable of being used independently.
Product Downloads
Model 1216 Axial-Torsion load cell measure both force and torsion in the same cell – with either channel capable of being used independently.
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
1216 Specs Table
| Axial Bridge A | Torsion Bridge B | ||
| Accuracy – (MAX ERROR) | |||
| Nonlinearity – %FS | ±0.04 | ±0.07 | |
| Hysteresis – %FS | ±0.04 | ±0.05 | |
| Nonrepeatability – %RO | ±0.02 | ±0.05 | |
| Creep, in 20 min – % | ±0.025 | ±0.025 | |
| Temperature | |||
| Effect on Zero – %RO / deg | °F | ±0.0008 | ±0.0008 |
| Effect on Output – % / deg | °F | ±0.0008 | ±0.0008 |
| Compensated Range | °F | +15 to +115 | +15 to +115 |
| °C | -10 to +45 | -10 to +45 | |
| Operating Range | °F | -65 to +200 | -65 to +200 |
| °C | -55 to +90 | -55 to +90 | |
| Electrical | |||
| Rated Output – mV/V (Nominal) | 1.50 | 1.80 | |
| Zero Balance – %RO | ±2.0 | ±2.0 | |
| Input Resistance – Ohms | 700 ±7 | 700 ±7 | |
| Output Resistance – Ohms | 700 ±7 | 700 ±7 | |
| Excitation Voltage – VDC MAX | 20 | 20 | |
| Mechanical | |||
| Calibration | T & C | CW & CCW | |
| Safe Overload – %CAP | ±200 | ±200 | |
| Ultimate Overload – %CAP | ±400 | ±400 | |
| Material | Aluminum | ||
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Dimensions
Dimensions
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Connector Pin Diagram
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| BRIDGE "A" AXIAL | |
| A | + EXCITATION |
| B | + SIGNAL |
| C | - SIGNAL |
| D | - EXCITATION |
| BRIDGE "B" TORSION | |
| E | + EXCITATION |
| F | + SIGNAL |
| G | - SIGNAL |
| H | - EXCITATION |
| "A" TENSION UPSCALE | |
| "B" CLOCKWISE UPSCALE | |
Additional Information
| Dimensions | 4.13 × 4.13 × 3.00 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Measures force and torque
- Minimal cross-talk
- Extraneous load resistance
- Fatigue-rated
Specifications
Specifications
1216 Specs Table
| Axial Bridge A | Torsion Bridge B | ||
| Accuracy – (MAX ERROR) | |||
| Nonlinearity – %FS | ±0.04 | ±0.07 | |
| Hysteresis – %FS | ±0.04 | ±0.05 | |
| Nonrepeatability – %RO | ±0.02 | ±0.05 | |
| Creep, in 20 min – % | ±0.025 | ±0.025 | |
| Temperature | |||
| Effect on Zero – %RO / deg | °F | ±0.0008 | ±0.0008 |
| Effect on Output – % / deg | °F | ±0.0008 | ±0.0008 |
| Compensated Range | °F | +15 to +115 | +15 to +115 |
| °C | -10 to +45 | -10 to +45 | |
| Operating Range | °F | -65 to +200 | -65 to +200 |
| °C | -55 to +90 | -55 to +90 | |
| Electrical | |||
| Rated Output – mV/V (Nominal) | 1.50 | 1.80 | |
| Zero Balance – %RO | ±2.0 | ±2.0 | |
| Input Resistance – Ohms | 700 ±7 | 700 ±7 | |
| Output Resistance – Ohms | 700 ±7 | 700 ±7 | |
| Excitation Voltage – VDC MAX | 20 | 20 | |
| Mechanical | |||
| Calibration | T & C | CW & CCW | |
| Safe Overload – %CAP | ±200 | ±200 | |
| Ultimate Overload – %CAP | ±400 | ±400 | |
| Material | Aluminum | ||
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Dimensions
Dimensions
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Connector Pin Diagram
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| BRIDGE "A" AXIAL | |
| A | + EXCITATION |
| B | + SIGNAL |
| C | - SIGNAL |
| D | - EXCITATION |
| BRIDGE "B" TORSION | |
| E | + EXCITATION |
| F | + SIGNAL |
| G | - SIGNAL |
| H | - EXCITATION |
| "A" TENSION UPSCALE | |
| "B" CLOCKWISE UPSCALE | |
Additional Information
| Dimensions | 4.13 × 4.13 × 3.00 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model 1216 Axial Torsion Load Cell, 1K lbf Axial Capacity, 500 in-lb Torsion Capacity with PT02E-12-8P Bayonet-type Connector | 1216CEW-1K | $4,145.00 |
| Model 1216 Axial Torsion Load Cell, 250 lbf Axial Capacity, 125 in-lb Torsion Capacity with PT02E-12-8P Bayonet-type Connector | 1216CEW-250 | $4,145.00 |
| Model 1216 Axial Torsion Load Cell, 2K lbf Axial Capacity, 1000 in-lb Torsion Capacity with PT02E-12-8P Bayonet-type Connector | 1216CEW-2K | $4,070.00 |
| Model 1216 Axial Torsion Load Cell, 500 lbf Axial Capacity, 250 in-lb Torsion Capacity with PT02E-12-8P Bayonet-type Connector | 1216CEW-500 | $4,145.00 |
×
![]()
