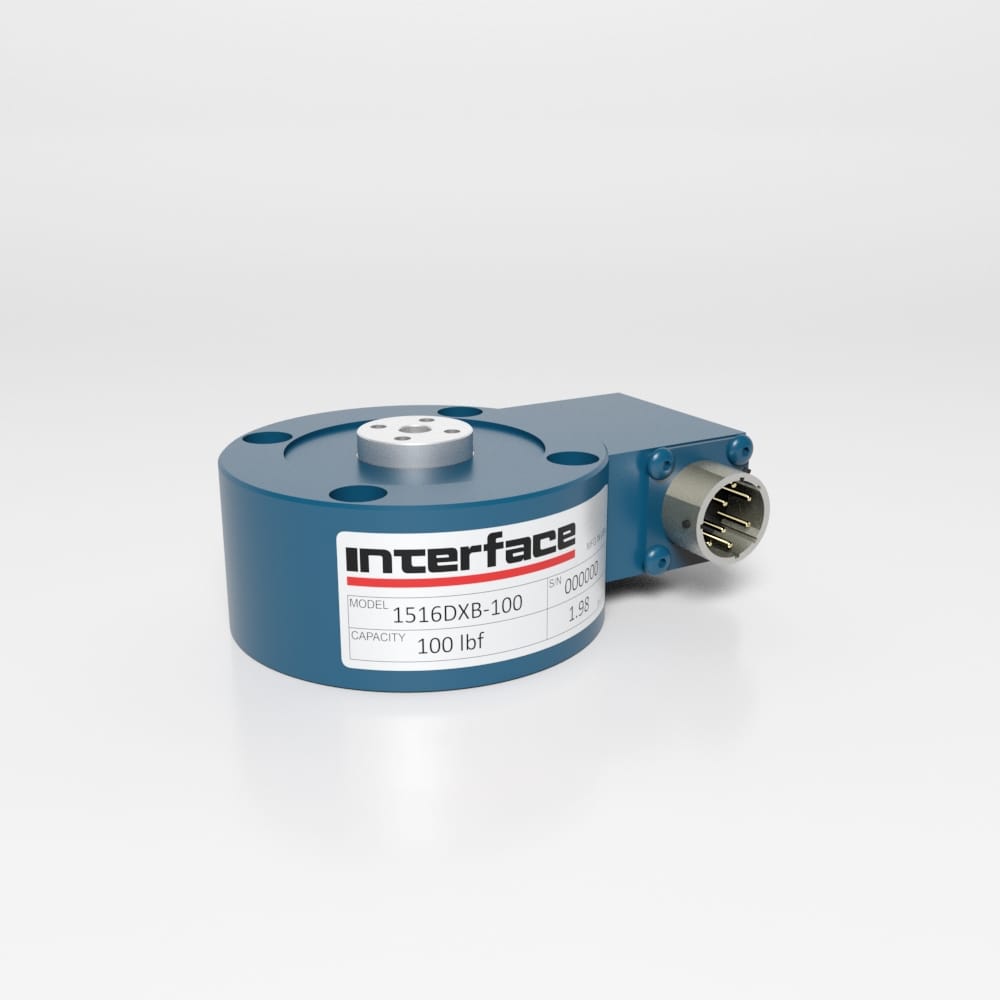

1516 2-Axis Axial Torsion Load Cell

1516
1516 11516 2

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

1516 2-Axis Axial Torsion Load Cell

Force & Torque LowProfile®

Get Your Free Quote

Force: 100 lbf
Torque: 50 lbf-in
Force: 444.8 N
Torque: 5.6 Nm

Model 1516 is a LowProfile™ load cell designed for applications where axial and torsion loads need to be measured simultaneously.

Product Downloads

Model 1516 is a LowProfile™ load cell designed for applications where axial and torsion loads need to be measured simultaneously.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: 1516DMW-100 Categories: , , , , , Tag:

Features and Benefits

  • Capacities 100 lbf (445N) to 50 lbf-in (5.65 Nm) Axial Torsion
  • Axial force torque
  • Minimal crosstalk

Specifications

Specifications


International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.

Dimensions

Dimensions


International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.

Connector Pin Diagram

CONNECTOR PINOUT
PIN FUNCTION
BRIDGE "A" AXIAL
A + EXCITATION
B + OUTPUT
C - OUTPUT
D - EXCITATION
BRIDGE "B" TORSION
E + EXCITATION
F + OUTPUT
G - OUTPUT
H - EXCITATION
"A" TENSION UPSCALE
"B" CLOCKWISE UPSCALE

For more information visit Electrical Wiring Diagrams

Additional Information

Dimensions 3.00 × 3.00 × 1.50 in
