Features and Benefits
- Capacities from 2 Nm to 2K Nm (17.7 lbf-in to 17.7K lbf-in)
- Convenient flange mounting
- Accepts standard sockets

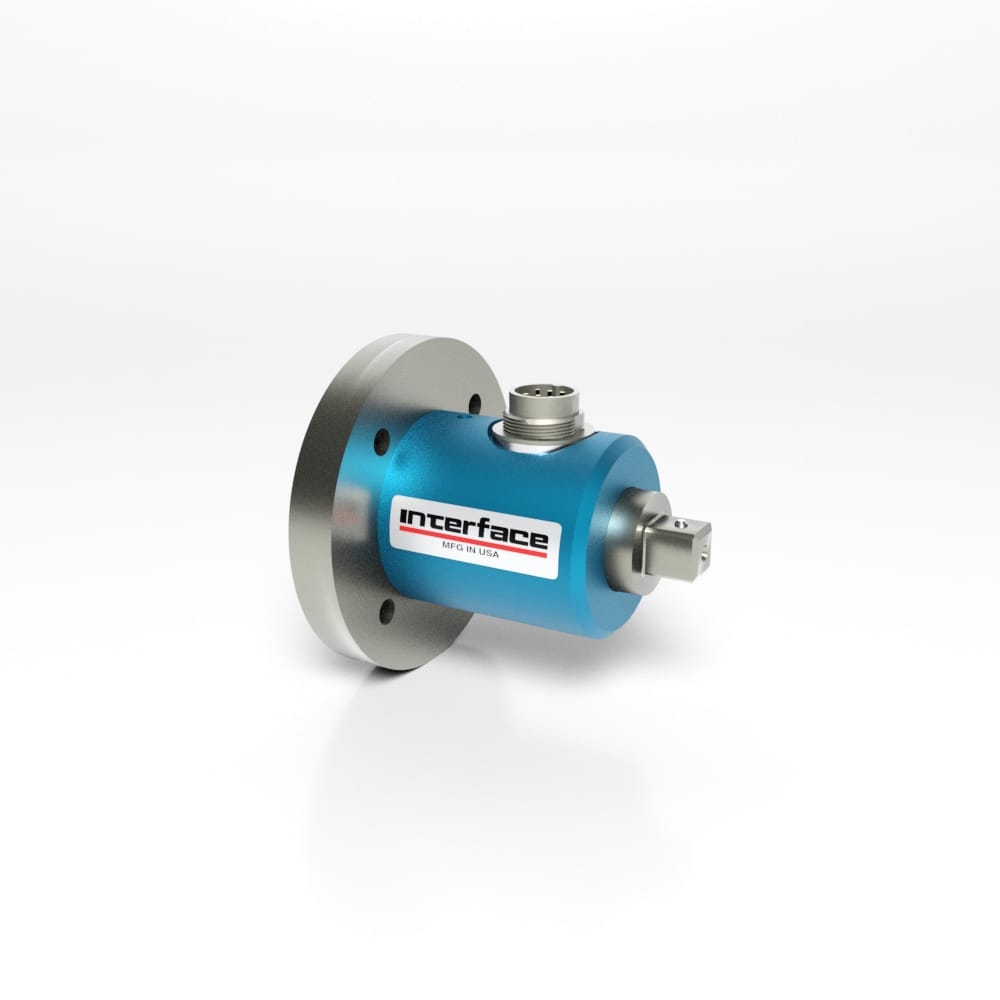

TS16 Male Square Drive to Flange Style Reaction Torque Transducer
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
TS16 Male Square Drive to Flange Style Reaction Torque Transducer
Square Drive to Flange-type
17.7 lbf-in to 17.7K lbf-in
2 Nm to 2K Nm
Model TS16 features a flange on one side and a male square drive connection on the other. Useful for fastener testing where the flange can be mounted to the bench and the square connection can accept sockets.
Product Downloads
Model TS16 features a flange on one side and a male square drive connection on the other. Useful for fastener testing where the flange can be mounted to the bench and the square connection can accept sockets.
- Flange Style, Floating, Square Style
- Reaction (Static)
- 0.00 lbs
- 2.76 × 2.76 × 2.76 in
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 6-PIN ELECTRICAL CONNECTION | |
| PIN | FUNCTION |
| 1 | - EXCITATION |
| 2 | + EXCITATION |
| 3 | SHIELDING |
| 4 | + SIGNAL |
| 5 | - SIGNAL |
| 6 | CONTROL SIGNAL OR TEDS (OPTION) |
Additional Information
| Dimensions | 2.76 × 2.76 × 2.76 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Capacities from 2 Nm to 2K Nm (17.7 lbf-in to 17.7K lbf-in)
- Convenient flange mounting
- Accepts standard sockets
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 6-PIN ELECTRICAL CONNECTION | |
| PIN | FUNCTION |
| 1 | - EXCITATION |
| 2 | + EXCITATION |
| 3 | SHIELDING |
| 4 | + SIGNAL |
| 5 | - SIGNAL |
| 6 | CONTROL SIGNAL OR TEDS (OPTION) |
Additional Information
| Dimensions | 2.76 × 2.76 × 2.76 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model TS16 Male Square Drive to Flange Style Reaction Torque Transducer, 12 Nm Capacity | TS16-12 | $1,970.00 |
| Model TS16 Male Square Drive to Flange Style Reaction Torque Transducer, 160 Nm Capacity | TS16-160 | $2,425.00 |
| Model TS16 Male Square Drive to Flange Style Reaction Torque Transducer, 2 Nm Capacity | TS16-2 | $1,970.00 |
| Model TS16 Male Square Drive to Flange Style Reaction Torque Transducer, 25 Nm Capacity | TS16-25 | $1,970.00 |
| Model TS16 Male Square Drive to Flange Style Reaction Torque Transducer, 500 Nm Capacity | TS16-500 | $2,835.00 |
| Model TS16 Male Square Drive to Flange Style Reaction Torque Transducer, 63 Nm Capacity | TS16-63 | $2,425.00 |
| Model TS16 Male Square Drive to Flange Style Reaction Torque Transducer, 2K Nm Capacity | TS16-2K | $5,275.00 |
| Model TS16 Male Square Drive to Flange Style Reaction Torque Transducer, 5 Nm Capacity | TS16-5 | $1,970.00 |
| Model TS16 Male Square Drive to Flange Style Reaction Torque Transducer, 1K Nm Capacity | TS16-1K | $4,595.00 |
×
![]()
