Features and Benefits
- Capacities from 0.2 Nm to 20 Nm (1.77 lbf-in to 177 lbf-in)
- Simple operation – no moving parts
- Useful for auditing fastener torques
- Quick-connect chuck

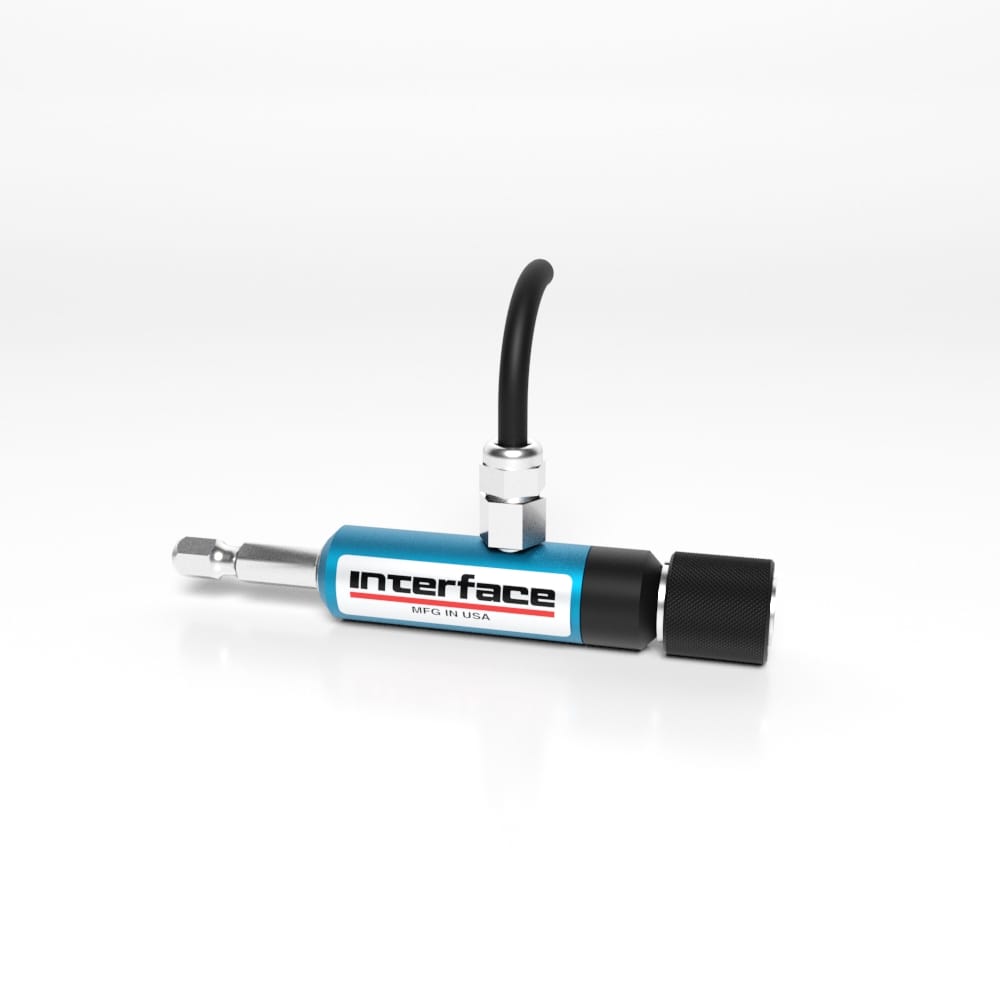

TS17 Hex Drive Style Reaction Torque Transducer
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
TS17 Hex Drive Style Reaction Torque Transducer
Hex Drive-type
1.77 lbf-in to 177 lbf-in
0.2 Nm to 20 Nm
Model TS17 accepts standard hex-style screwdriver bits, useful for auditing fastener torque and checking screw installation after final assembly.
Product Downloads
Model TS17 accepts standard hex-style screwdriver bits, useful for auditing fastener torque and checking screw installation after final assembly.
- Floating, Hex Style
- Reaction (Static)
- 0.40 lbs
- 0.61 × 3.80 × 0.61 in
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| ELECTRICAL CONNECTION | |
| COLOR | FUNCTION |
| GREEN | - EXCITATION |
| BROWN | + EXCITATION |
| YELLOW | + SIGNAL |
| WHITE | - SIGNAL |
| GRAY | CONTROL SIGNAL OR TEDS (OPTION) |
| SHIELDING | SHIELD |
Additional Information
| Dimensions | 0.61 × 3.80 × 0.61 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Capacities from 0.2 Nm to 20 Nm (1.77 lbf-in to 177 lbf-in)
- Simple operation – no moving parts
- Useful for auditing fastener torques
- Quick-connect chuck
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| ELECTRICAL CONNECTION | |
| COLOR | FUNCTION |
| GREEN | - EXCITATION |
| BROWN | + EXCITATION |
| YELLOW | + SIGNAL |
| WHITE | - SIGNAL |
| GRAY | CONTROL SIGNAL OR TEDS (OPTION) |
| SHIELDING | SHIELD |
Additional Information
| Dimensions | 0.61 × 3.80 × 0.61 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model TS17 Hex Drive Reaction Torque Transducer 10 Nm Capacity with 3-meter Integral Cable | TS17-10 | $1,725.00 |
| Model TS17 Hex Drive Reaction Torque Transducer 20 Nm Capacity with 3-meter Integral Cable | TS17-20 | $1,725.00 |
| Model TS17 Hex Drive Reaction Torque Transducer 5 Nm Capacity with 3-meter Integral Cable | TS17-5 | $1,725.00 |
×
![]()
