Features and Benefits
- Capacities from 2 Nm to 2K Nm (17.7 lbf-in to 17.7K lbf-in)
- Keyed shaft per DIN 6885.1
- Convenient flange mounting
TS18 Shaft to Flange Style Reaction Torque Transducer
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
TS18 Shaft to Flange Style Reaction Torque Transducer
Shaft to Flange-type
17.7 lbf-in to 17.7K lbf-in
2 Nm to 2K Nm

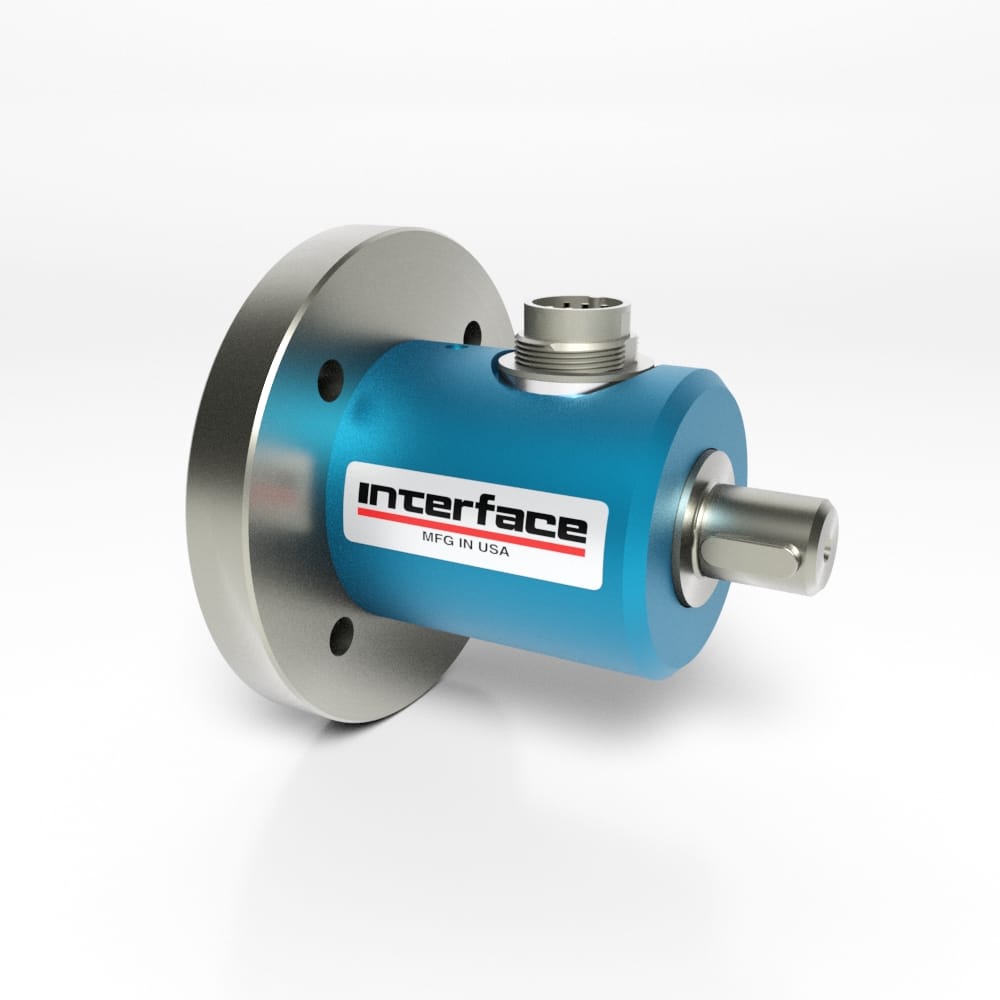

Model TS18 has a convenient thru-hole flange mounting on one and a shaft on the other. Flange has internal pilot and the shaft is keyed per DIN 6885.1.
Product Downloads
- Data Sheet
- TS Operation Manual for Torque Sensors
- TS18 2-25Nm STP Files
- TS18 50-100Nm STP Files
- TS18 200-500Nm STP Files
- TS18 1KNm STP Files
- TS18 2KNm STP Files
- TS18 2k
- 5k
- 10k
- 20k Nm Drawing
- TS18 50k-100k Nm Drawing
- TS18 200k-500k Nm Drawing
- TS18 1000k Nm Drawing
- TS18 2000k Nm Drawing
- TS18 25k Nm Drawing
Model TS18 has a convenient thru-hole flange mounting on one and a shaft on the other. Flange has internal pilot and the shaft is keyed per DIN 6885.1.
- Flange Style, Floating, Shaft Style
- Reaction (Static)
- 1.10 lbs
- 2.80 × 2.80 × 2.80 in
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 6-PIN ELECTRICAL CONNECTION | |
| PIN | FUNCTION |
| 1 | - EXCITATION |
| 2 | + EXCITATION |
| 3 | SHIELDING |
| 4 | + SIGNAL |
| 5 | - SIGNAL |
| 6 | CONTROL SIGNAL OR TEDS (OPTION) |
Additional Information
| Dimensions | 2.80 × 2.80 × 2.80 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Capacities from 2 Nm to 2K Nm (17.7 lbf-in to 17.7K lbf-in)
- Keyed shaft per DIN 6885.1
- Convenient flange mounting
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 6-PIN ELECTRICAL CONNECTION | |
| PIN | FUNCTION |
| 1 | - EXCITATION |
| 2 | + EXCITATION |
| 3 | SHIELDING |
| 4 | + SIGNAL |
| 5 | - SIGNAL |
| 6 | CONTROL SIGNAL OR TEDS (OPTION) |
Additional Information
| Dimensions | 2.80 × 2.80 × 2.80 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model TS18 Shaft to Flange Style Reaction Torque Transducer 2 Nm Capacity with 6-pin Binder Connector | TS18-2 | $2,230.00 |
| Model TS18 Shaft to Flange Style Reaction Torque Transducer 5 Nm Capacity with 6-pin Binder Connector | TS18-5 | $2,230.00 |
| Model TS18 Shaft to Flange Style Reaction Torque Transducer 10 Nm Capacity with 6-pin Binder Connector | TS18-10 | $2,230.00 |
| Model TS18 Shaft to Flange Style Reaction Torque Transducer 20 Nm Capacity with 6-pin Binder Connector | TS18-20 | $2,230.00 |
| Model TS18 Shaft to Flange Style Reaction Torque Transducer 50 Nm Capacity with 6-pin Binder Connector | TS18-50 | $2,410.00 |
| Model TS18 Shaft to Flange Style Reaction Torque Transducer 100 Nm Capacity with 6-pin Binder Connector | TS18-100 | $2,410.00 |
| Model TS18 Shaft to Flange Style Reaction Torque Transducer 200 Nm Capacity with 6-pin Binder Connector | TS18-200 | $2,730.00 |
| Model TS18 Shaft to Flange Style Reaction Torque Transducer 500 Nm Capacity with 6-pin Binder Connector | TS18-500 | $2,730.00 |
| Model TS18 Shaft to Flange Style Reaction Torque Transducer 1K Nm Capacity with 6-pin Binder Connector | TS18-1K | $4,450.00 |
| Model TS18 Shaft to Flange Style Reaction Torque Transducer 2K Nm Capacity with 6-pin Binder Connector | TS18-2K | $5,035.00 |
| Model TS18 Shaft to Flange Style Reaction Torque Transducer 25 Nm Capacity with 6-pin Binder Connector | TS18-25 | $2,230.00 |
×
![]()
