Features and Benefits
- Capacities from 50 Nm to 10K Nm (443 lbf-in to 88.5K lbf-in)
- Short, rugged, compact design
- Both ends with flange
TS19 Short Flange Style Reaction Torque Transducer
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
TS19 Short Flange Style Reaction Torque Transducer
Flange-type
443 lbf-in to 88.5K lbf-in
50 Nm to 10K Nm

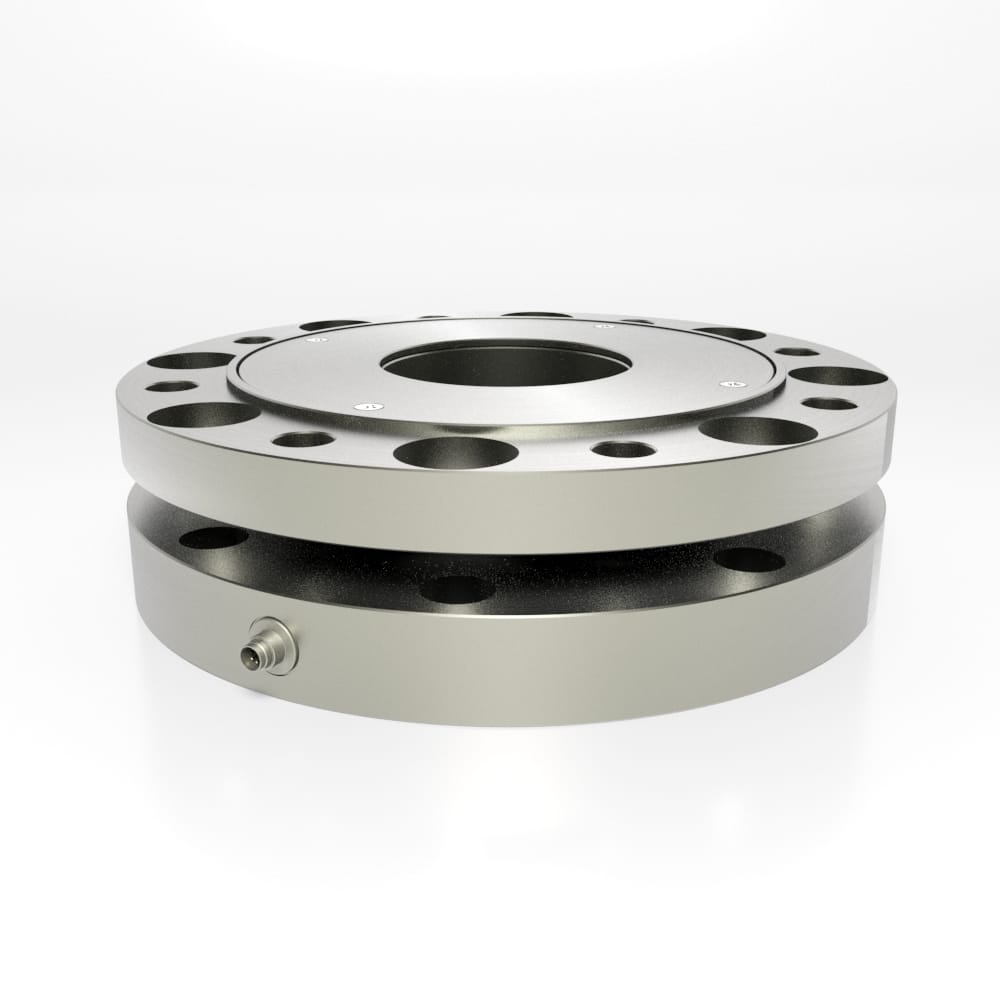

Model TS19 features an ultra-compact design, allowing the smallest possible flange-to-flange thickness of any reaction torque sensor. Both flanges include pilots.
Product Downloads
Model TS19 features an ultra-compact design, allowing the smallest possible flange-to-flange thickness of any reaction torque sensor. Both flanges include pilots.
- Compact, Flange Style, Floating
- Reaction (Static)
- 0.00 lbs
- 1.30 × 3.90 × 1.30 in
- Features and Benefits
- Specifications
- Performance Parameters
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Performance Parameters
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 7-PIN ELECTRICAL CONNECTION | |
| PIN | FUNCTION |
| 1 | - EXCITATION |
| 2 | + EXCITATION |
| 3 | SHIELD |
| 4 | - SIGNAL |
| 5 | - SIGNAL |
| 6 | CONTROL SIGNAL OR TEDS (OPTION) |
| 7 | N/C |
Additional Information
| Dimensions | 1.30 × 3.90 × 1.30 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Performance Parameters
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Capacities from 50 Nm to 10K Nm (443 lbf-in to 88.5K lbf-in)
- Short, rugged, compact design
- Both ends with flange
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Performance Parameters
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 7-PIN ELECTRICAL CONNECTION | |
| PIN | FUNCTION |
| 1 | - EXCITATION |
| 2 | + EXCITATION |
| 3 | SHIELD |
| 4 | - SIGNAL |
| 5 | - SIGNAL |
| 6 | CONTROL SIGNAL OR TEDS (OPTION) |
| 7 | N/C |
Additional Information
| Dimensions | 1.30 × 3.90 × 1.30 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model TS19 Short Flange Style Reaction Torque Transducer, 100 Nm Capacity | TS19-100 | $6,650.00 |
| Model TS19 Short Flange Style Reaction Torque Transducer, 1K Nm Capacity | TS19-1K | $7,875.00 |
| Model TS19 Short Flange Style Reaction Torque Transducer, 500 Nm Capacity | TS19-500 | $7,380.00 |
| Model TS19 Short Flange Style Reaction Torque Transducer, 5K Nm Capacity | TS19-5K | $9,310.00 |
| Model TS19 Short Flange Style Reaction Torque Transducer, 50 Nm Capacity | TS19-50 | $6,650.00 |
| Model TS19 Short Flange Style Reaction Torque Transducer, 200 Nm Capacity | TS19-200 | $7,040.00 |
| Model TS19 Short Flange Style Reaction Torque Transducer, 2K Nm Capacity | TS19-2K | $9,260.00 |
| Model TS19 Short Flange Style Reaction Torque Transducer, 10K Nm Capacity | TS19-10K | $9,285.00 |
×
![]()
