Features and Benefits
- Capacities from 0.005 to 20 Nm (0.04 to 177 lbf-in)
- 5X safe overload on capacities up to 2 Nm (17.7 lbf-in)
- Very small measuring ranges
TS22 Miniature Reaction Torque Transducer
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
TS22 Miniature Reaction Torque Transducer
Shaft-type
0.005 to 20 Nm
0.04 to 177 lbf-in

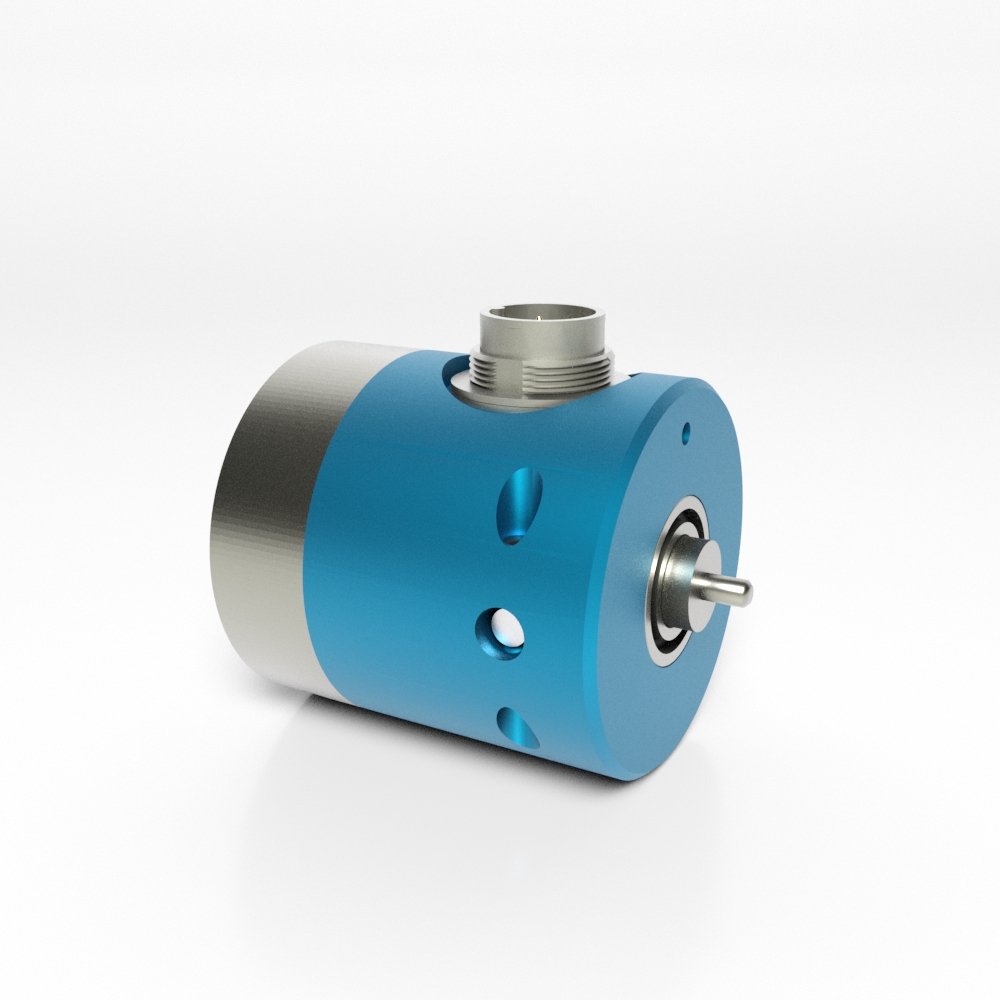

The Interface model TS22 Miniature Reaction Torque Transducer was designed for very small measuring ranges with 5X’s safe overload on capacities up to 17.7 lbf-in or 2 Nm. Capacities on the TS22range from 0.04 to 177 lbf-in and 0.005 to 20 Nm.
