Features and Benefits
- Capacities from 1 Nm to 500 Nm (8.85 lbf-in to 4.4K lbf-in)
- Integrated speed and angle measurement
- Both shaft ends with keyway
- mV/V output

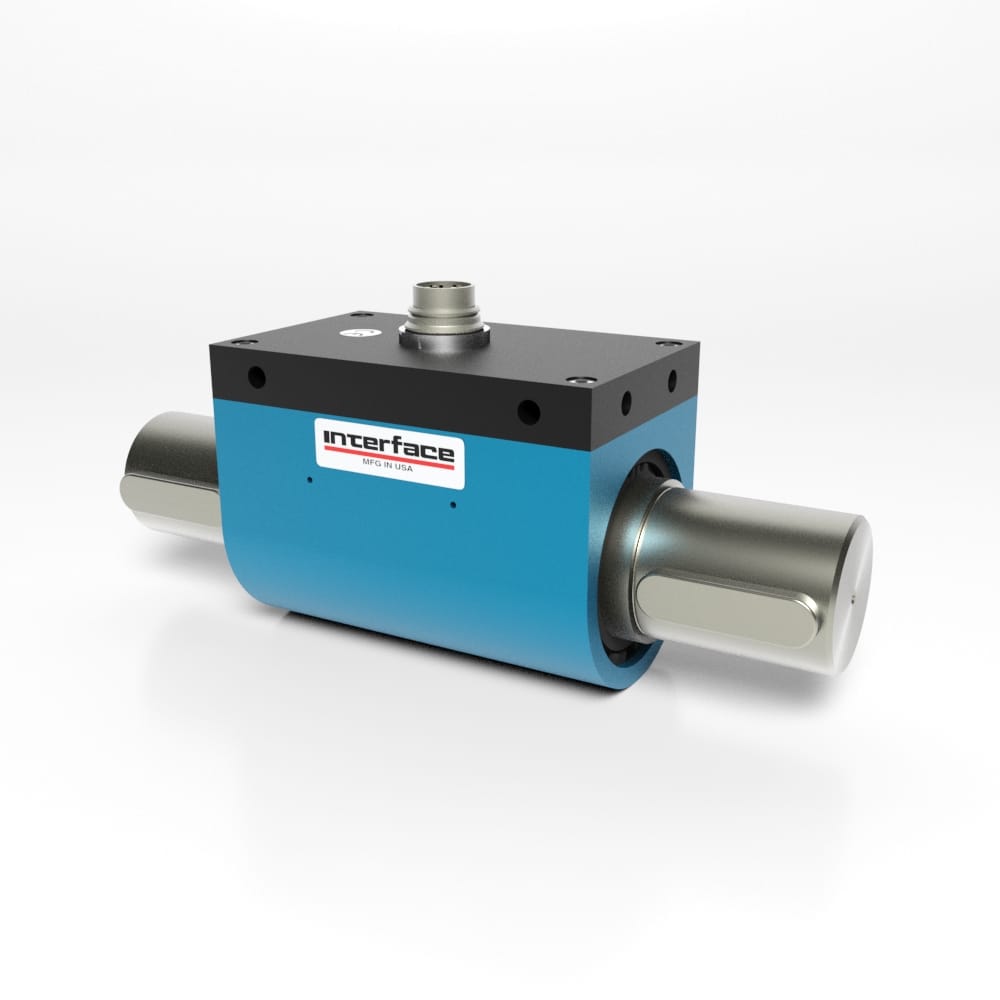

T14 Slip-Ring Shaft Style Rotary Torque Transducer
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
T14 Slip-Ring Shaft Style Rotary Torque Transducer
Shaft-type
8.85 lbf-in to 4.43K lbf-in
1 Nm to 500 Nm
Model T14 uses high-reliability slip-rings to transfer power and signal to and from the rotating strain-gaged shaft. Industry standard mV/V allows use with standard strain gage instrumentation.
Product Downloads
Model T14 uses high-reliability slip-rings to transfer power and signal to and from the rotating strain-gaged shaft. Industry standard mV/V allows use with standard strain gage instrumentation.
- Floating, Shaft Style
- Rotary (Dynamic)
- 2.90 lbs
- 2.20 × 7.08 × 2.76 in
- Features and Benefits
- Specifications
- Performance Parameters
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Performance Parameters
*1 = Female cable connector in scope of delivery at first delivery *2 = Unsupported shaft
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions-1 Nm - 10 Nm
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions-20 Nm - 500 Nm
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 12-PIN ELECTRICAL CONNECTION | ||
| PIN | FUNCTION | |
| A | - EXCITATION | - |
| B | + EXCITATION | - |
| C | + SIGNAL | - |
| D | - SUPPLY | - |
| E | EXCITATION ANGLE (GND) | 0V |
| F | EXCITATION ANGLE | 5V |
| G | SIGNAL ANGLE A | 5V TTL |
| H | SIGNAL ANGLE B | 5V TTL |
| J | SIGNAL ANGLE (GND) | 0V |
| K | CONTROL SIGNAL OR TEDS (OPTION) | - |
| L | N/C | - |
| M | SHIELDING | - |
Additional Information
| Dimensions | 2.20 × 7.08 × 2.76 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Performance Parameters
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Capacities from 1 Nm to 500 Nm (8.85 lbf-in to 4.4K lbf-in)
- Integrated speed and angle measurement
- Both shaft ends with keyway
- mV/V output
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Performance Parameters
*1 = Female cable connector in scope of delivery at first delivery *2 = Unsupported shaft
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions-1 Nm - 10 Nm
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions-20 Nm - 500 Nm
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 12-PIN ELECTRICAL CONNECTION | ||
| PIN | FUNCTION | |
| A | - EXCITATION | - |
| B | + EXCITATION | - |
| C | + SIGNAL | - |
| D | - SUPPLY | - |
| E | EXCITATION ANGLE (GND) | 0V |
| F | EXCITATION ANGLE | 5V |
| G | SIGNAL ANGLE A | 5V TTL |
| H | SIGNAL ANGLE B | 5V TTL |
| J | SIGNAL ANGLE (GND) | 0V |
| K | CONTROL SIGNAL OR TEDS (OPTION) | - |
| L | N/C | - |
| M | SHIELDING | - |
Additional Information
| Dimensions | 2.20 × 7.08 × 2.76 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model T14 Slip-Ring Shaft Style Rotary Torque Transducer, 500 Nm Capacity | T14-500-A3A | $4,570.00 |
| Model T14 Slip-Ring Shaft Style Rotary Torque Transducer, 200 Nm Capacity | T14-200-A3A | $4,570.00 |
| Model T14 Slip-Ring Shaft Style Rotary Torque Transducer, 100 Nm Capacity | T14-100-A3A | $4,275.00 |
| Model T14 Slip-Ring Shaft Style Rotary Torque Transducer, 50 Nm Capacity | T14-50-A3A | $4,275.00 |
| Model T14 Slip-Ring Shaft Style Rotary Torque Transducer, 20 Nm Capacity | T14-20-A3A | $4,275.00 |
| Model T14 Slip-Ring Shaft Style Rotary Torque Transducer, 10 Nm Capacity | T14-10-A3A | $4,275.00 |
| Model T14 Slip-Ring Shaft Style Rotary Torque Transducer, 5 Nm Capacity | T14-5-A3A | $4,275.00 |
| Model T14 Slip-Ring Shaft Style Rotary Torque Transducer, 2 Nm Capacity | T14-2-A3A | $4,275.00 |
| Model T14 Slip-Ring Shaft Style Rotary Torque Transducer, 1 Nm Capacity | T14-1-A3A | $4,275.00 |
×
![]()
