Features and Benefits
- Capacities from 1 Nm to 500 Nm (8.85 lbf-in to 4.4K lbf-in)
- Very Short Axial Length
- Compact Design
- High Accuracy 0.1% FS
- Keyed Shaft
- mV/V output
T16 Compact Slip-Ring Shaft Style Rotary Torque Transducer
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
T16 Compact Slip-Ring Shaft Style Rotary Torque Transducer
Shaft-type
8.85 lbf-in to 4.43K lbf-in
1 Nm to 500 Nm

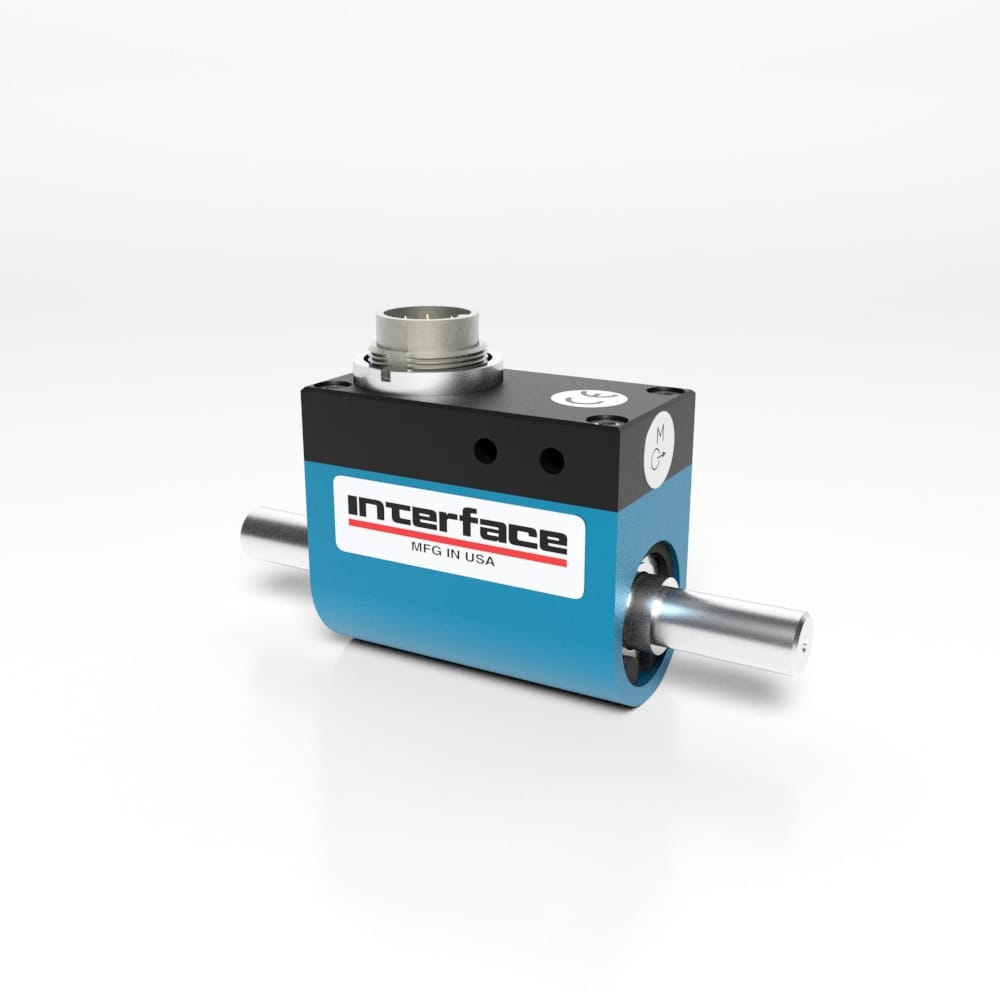

Model T16 has a compact design that uses high-reliability slip-rings to transfer power and signal to and from the rotating strain-gaged shaft. Industry standard mV/V allows use with standard strain gage instrumentation.
Product Downloads
Model T16 has a compact design that uses high-reliability slip-rings to transfer power and signal to and from the rotating strain-gaged shaft. Industry standard mV/V allows use with standard strain gage instrumentation.
- Compact, Contactless, Floating, Shaft Style
- Rotary (Dynamic)
- 0.00 lbs
- 0.90 × 3.30 × 1.50 in
- Features and Benefits
- Specifications
- Performance Parameters
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Performance Parameters
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions-1 Nm - 10 Nm
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 6-PIN ELECTRICAL CONNECTION | |
| PIN | FUNCTION |
| 1 | - EXCITATION |
| 2 | + EXCITATION |
| 3 | SHIELDING |
| 4 | + SIGNAL |
| 5 | - SIGNAL |
| 6 | CONTROL SIGNAL OR TEDS (OPTION) |
Additional Information
| Dimensions | 0.90 × 3.30 × 1.50 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Performance Parameters
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Capacities from 1 Nm to 500 Nm (8.85 lbf-in to 4.4K lbf-in)
- Very Short Axial Length
- Compact Design
- High Accuracy 0.1% FS
- Keyed Shaft
- mV/V output
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Performance Parameters
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions-1 Nm - 10 Nm
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 6-PIN ELECTRICAL CONNECTION | |
| PIN | FUNCTION |
| 1 | - EXCITATION |
| 2 | + EXCITATION |
| 3 | SHIELDING |
| 4 | + SIGNAL |
| 5 | - SIGNAL |
| 6 | CONTROL SIGNAL OR TEDS (OPTION) |
Additional Information
| Dimensions | 0.90 × 3.30 × 1.50 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 1Nm Capacity | T16-1Nm | $2,300.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 2Nm Capacity | T16-2Nm | $2,300.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 5Nm Capacity | T16-5Nm | $2,300.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 10Nm Capacity | T16-10Nm | $2,300.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 20Nm Capacity | T16-20Nm | $2,360.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 50Nm Capacity | T16-50Nm | $2,360.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 100Nm Capacity | T16-100Nm | $2,360.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 200Nm Capacity | T16-200Nm | $2,420.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 500Nm Capacity | T16-500Nm | $2,420.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 1Nm Capacity | T16-1-A1A | $2,300.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 10Nm Capacity | T16-10-A1A | $2,300.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 100Nm Capacity | T16-100-A1A | $2,360.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 2Nm Capacity | T16-2-A1A | $2,300.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 20Nm Capacity | T16-20-A1A | $2,360.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 200Nm Capacity | T16-200-A1A | $2,420.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 5Nm Capacity | T16-5-A1A | $2,300.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 50Nm Capacity | T16-50-A1A | $2,360.00 |
| Model T16 Compact Slip Ring Shaft Style Rotary Torque Transducer, 500Nm Capacity | T16-500-A1A | $2,420.00 |
×
![]()
