2816 2-Axis Axial Torsion Load Cell
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
2816 2-Axis Axial Torsion Load Cell
Force & Torque Flange Mount
Force: 3.3K to 15K lbf
Torque: 2K to 7.5K lbf-lb
Force: 14.6 to 66.7 kN
Torque: 226 to 847 Nm

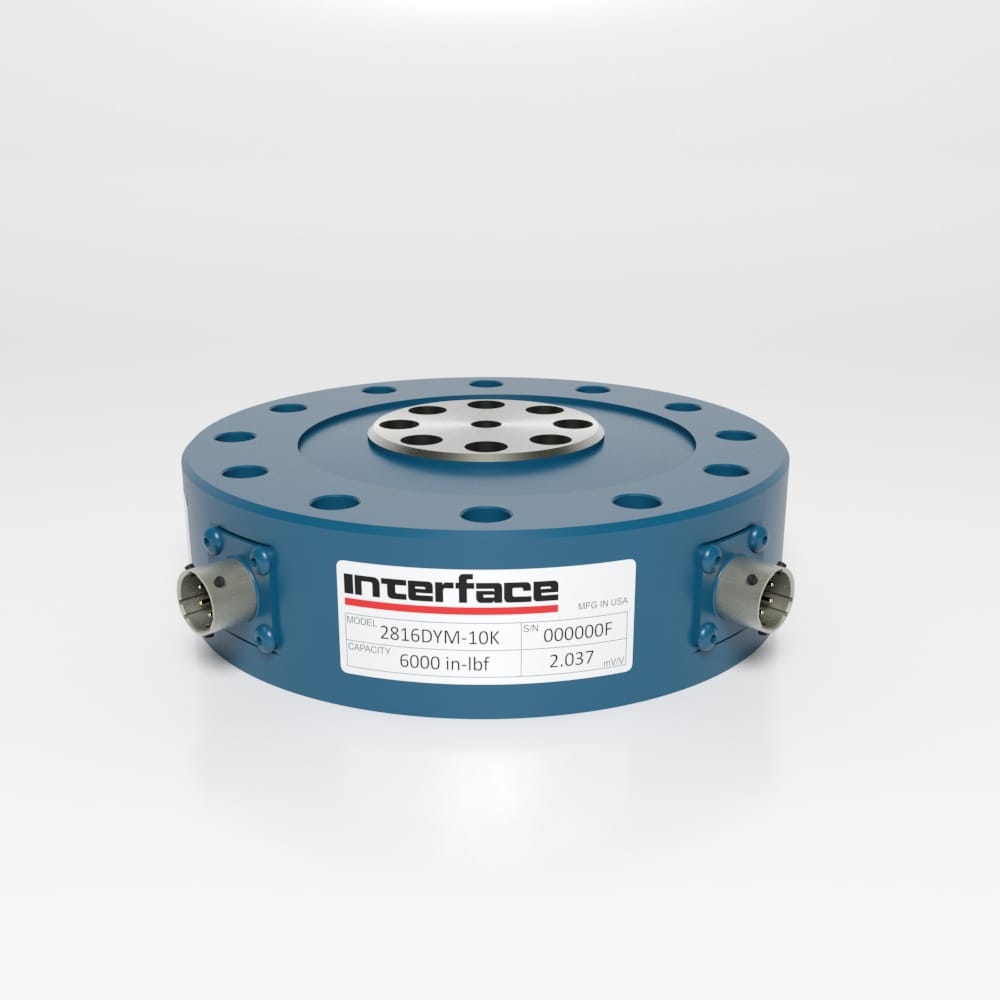

The 2816 Axial-Torsion load cell measure both force and torsion in the same load cell. Either channel is capable of being used independently. This product is similar to Model 1216, but with a lower profile and capable of much higher forces and torques.
Product Downloads
The 2816 Axial-Torsion load cell measure both force and torsion in the same load cell. Either channel is capable of being used independently. This product is similar to Model 1216, but with a lower profile and capable of much higher forces and torques.
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Dimensions
Dimensions
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Connector Pin Diagram
| CONNECTOR PINOUT | |
| PIN | FUNCTION |
| A | + EXCITATION |
| B | + SIGNAL |
| C | - SIGNAL |
| D | - EXCITATION |
| E | N/C |
| F | N/C |
| TENSION UPSCALE | |
| CLOCKWISE UPSCALE | |
Additional Information
| Dimensions | - × - × 1.75 in |
|---|
