AT103 2-Axis Axial Torsion Load Cell

Force & Torque

Get Your Free Quote

Force: 2.25K to 4.5K lbf
Torque: 88.5 to 177 lbf-in
Force: 10 to 20 kN
Torque: 10 to 20 Nm

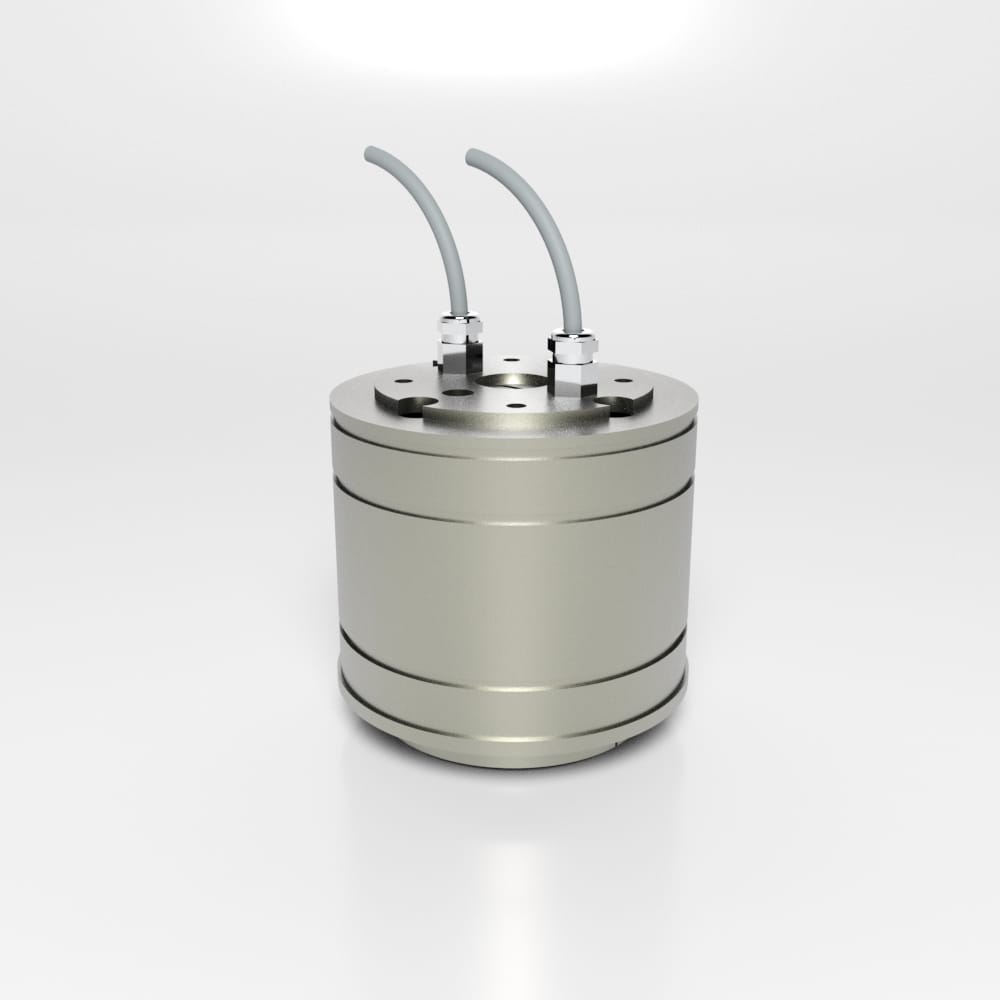

Model AT103 is an axial torsion transducer for measuring both torque and force in a single sensor. Typical applications include rheometry test machines for rubber testing.

Product Downloads

Model AT103 is an axial torsion transducer for measuring both torque and force in a single sensor. Typical applications include rheometry test machines for rubber testing.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: AT103-10KN Categories: , , , , , Tag:

Features and Benefits

  • Capacities: Force (kN) / Torque (Nm) – 10/10, 20/20
  • Compact design
  • Bottom cable exit

Specifications

Specifications


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

FORCE/TORQUE [kN/Nm] ELECTRICAL CONNECTION
COLOR FUNCTION
ORANGE - EXCITATION
BROWN + EXCITATION
RED + SIGNAL
BLACK - SIGNAL
SHEILD SHIELDING

For more information visit Electrical Wiring Diagrams

Additional Information

Dimensions 380.008 × 380.008 × 3.70 in

Product Video

Features and Benefits

  • Capacities: Force (kN) / Torque (Nm) – 10/10, 20/20
  • Compact design
  • Bottom cable exit

Specifications

Specifications


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

FORCE/TORQUE [kN/Nm] ELECTRICAL CONNECTION
COLOR FUNCTION
ORANGE - EXCITATION
BROWN + EXCITATION
RED + SIGNAL
BLACK - SIGNAL
SHEILD SHIELDING

For more information visit Electrical Wiring Diagrams

Additional Information

Dimensions 380.008 × 380.008 × 3.70 in

Product Video
