Features and Benefits
- Capacities from 20 Nm to 5K Nm (177 lbf-in to 44K lbf-in)
- Monitor’s Pulley Torque
- ±5 VDC output (±10VDC Optional)
- Contactless
- 12-28VDC Power Supply

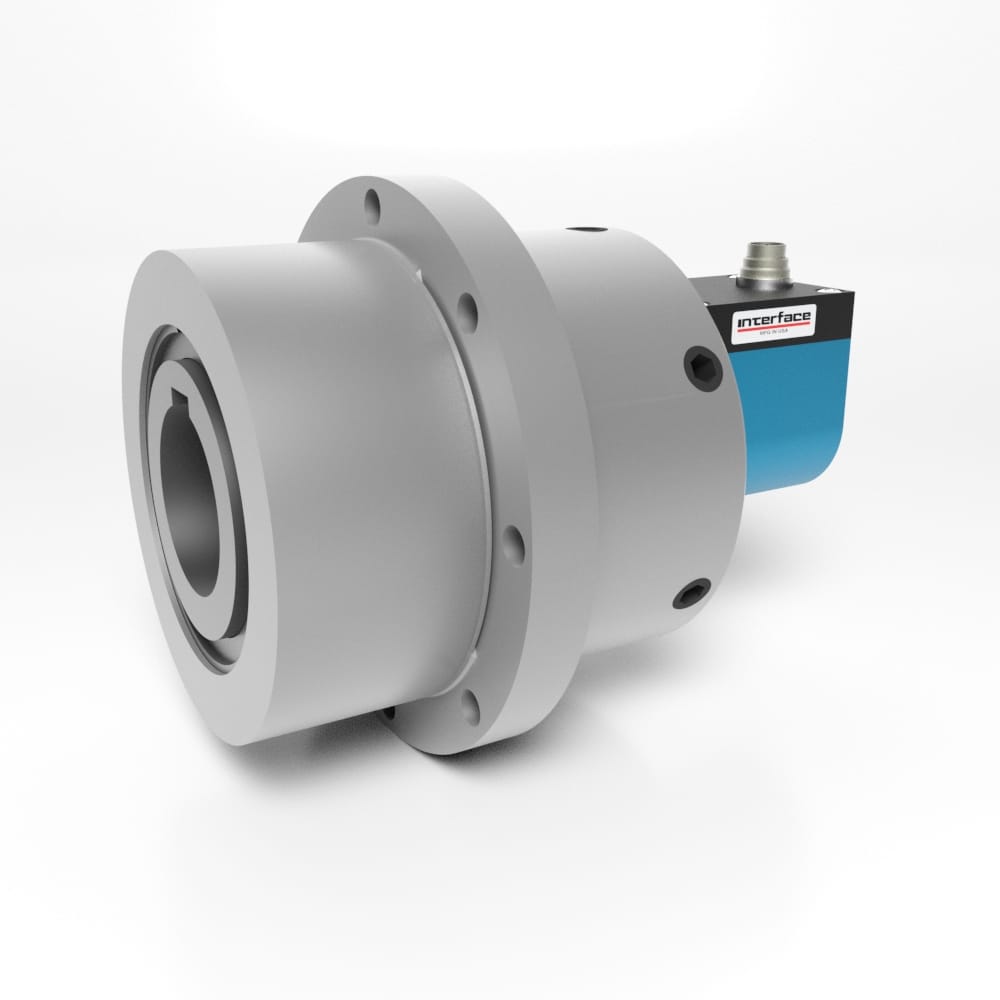

T22 Pulley Belt Style Rotary Torque Transducer
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
T22 Pulley Belt Style Rotary Torque Transducer
Pulley-type
177 lbf-in to 44.3K lbf-in
20 Nm to 5K Nm
Model T22 is used for monitoring pulley torque, belt or chain tension, or anywhere a torque measurement needs to be made that includes a large radial load component. The contactless design features 0.1% combined error, high-level ±5V or ±10V analog output, 16-bit resolution and 3khz bandwidth. A remotely activated, internal shunt calibration resistor provides a known 5V calibration signal. Speed and angle can be measured with the optional encoder.
Product Downloads
Model T22 is used for monitoring pulley torque, belt or chain tension, or anywhere a torque measurement needs to be made that includes a large radial load component. The contactless design features 0.1% combined error, high-level ±5V or ±10V analog output, 16-bit resolution and 3khz bandwidth. A remotely activated, internal shunt calibration resistor provides a known 5V calibration signal. Speed and angle can be measured with the optional encoder.
- Contactless, Floating
- Rotary (Dynamic)
- 0.00 lbs
- 3.48 × 6.63 × 3.48 in
- Features and Benefits
- Specifications
- Performance Parameters
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Performance Parameters
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 12-PIN ELECTRICAL CONNECTION | ||
| PIN | FUNCTION | |
| A | N/C | - |
| B | SIGNAL ANGLE B (OPTION) | 5V TTL |
| C | + SIGNAL | ±5V (±10V) |
| D | SIGNAL (GND) | 0V |
| E | SUPPLY (GND) | 0V |
| F | + SUPPLY | 12 - 28VDC |
| G | SIGNAL ANGLE A (OPTION) | 5V TTL |
| H | N/C | - |
| J | N/C | - |
| K | CONTROL SIGNAL | L<2.0V H>3.5V |
| L | N/C | - |
| M | SHIELD | - |
Additional Information
| Dimensions | 3.48 × 6.63 × 3.48 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Performance Parameters
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Capacities from 20 Nm to 5K Nm (177 lbf-in to 44K lbf-in)
- Monitor’s Pulley Torque
- ±5 VDC output (±10VDC Optional)
- Contactless
- 12-28VDC Power Supply
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Performance Parameters
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 12-PIN ELECTRICAL CONNECTION | ||
| PIN | FUNCTION | |
| A | N/C | - |
| B | SIGNAL ANGLE B (OPTION) | 5V TTL |
| C | + SIGNAL | ±5V (±10V) |
| D | SIGNAL (GND) | 0V |
| E | SUPPLY (GND) | 0V |
| F | + SUPPLY | 12 - 28VDC |
| G | SIGNAL ANGLE A (OPTION) | 5V TTL |
| H | N/C | - |
| J | N/C | - |
| K | CONTROL SIGNAL | L<2.0V H>3.5V |
| L | N/C | - |
| M | SHIELD | - |
Additional Information
| Dimensions | 3.48 × 6.63 × 3.48 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model T22 Pulley Belt Style Rotary Torque Transducer, 20Nm Capacity, +/-5VDC Output with Speed/Angle Option | T22-20Nm | $8,850.00 |
| Model T22 Pulley Belt Style Rotary Torque Transducer, 50Nm Capacity, +/-5VDC Output with Speed/Angle Option | T22-50Nm | $8,850.00 |
| Model T22 Pulley Belt Style Rotary Torque Transducer, 100Nm Capacity, +/-5VDC Output with Speed/Angle Option | T22-100Nm | $8,850.00 |
| Model T22 Pulley Belt Style Rotary Torque Transducer, 200Nm Capacity, +/-5VDC Output with Speed/Angle Option | T22-200Nm | $8,850.00 |
| Model T22 Pulley Belt Style Rotary Torque Transducer, 500Nm Capacity, +/-5VDC Output with Speed/Angle Option | T22-500Nm | $15,620.00 |
| Model T22 Pulley Belt Style Rotary Torque Transducer, 1K Capacity, +/-5VDC Output with Speed/Angle Option | T22-1K Nm | $17,720.00 |
| Model T22 Pulley Belt Style Rotary Torque Transducer, 2K Capacity, +/-5VDC Output with No Speed/Angle Option | T22-2K Nm | $17,720.00 |
| Model T22 Pulley Belt Style Rotary Torque Transducer, 5K Capacity, +/-5VDC Output with No Speed/Angle Option | T22-5K Nm | $17,720.00 |
| Model T22 Pulley Belt Style Rotary Torque Transducer, 100Nm Capacity, +/-5VDC Output with No Speed/Angle Option | T22-100-A1A-XXX | $8,850.00 |
| Model T22 Pulley Belt Style Rotary Torque Transducer, 200Nm Capacity, +/-5VDC Output with No Speed/Angle Option | T22-200-A1A-XXX | $8,850.00 |
| Model T22 Pulley Belt Style Rotary Torque Transducer, 20Nm Capacity, +/-5VDC Output with No Speed/Angle Option | T22-20-A1A-XXX | $8,850.00 |
| Model T22 Pulley Belt Style Rotary Torque Transducer, 50Nm Capacity, +/-5VDC Output with No Speed/Angle Option | T22-50-A1A-XXX | $8,850.00 |
| Model T22 Pulley Belt Style Rotary Torque Transducer, 500Nm Capacity, +/-5VDC Output with No Speed/Angle Option | T22-500-A1A-XXX | $15,620.00 |
| Model T22 Pulley Belt Style Rotary Torque Transducer, 1K Capacity, +/-5VDC Output with No Speed/Angle Option | T22-1K A1A-XXX | $17,720.00 |
| Model T22 Pulley Belt Style Rotary Torque Transducer, 2K Capacity, +/-5VDC Output with No Speed/Angle Option | T22-2K-A1A-XXX | $17,720.00 |
| Model T22 Pulley Belt Style Rotary Torque Transducer, 5K Capacity, +/-5VDC Output with No Speed/Angle Option | T22-5K-A1A-XXX | $17,720.00 |
×
![]()
