Features and Benefits
- Ranges from 12 to 120 MT (26.5K and 265K lbf)
- Environmentally sealed to IP67
- Simple installation and operation
- Shackle and load pin fully certified
WTSSHK-B Wireless Crosby™ Bow Load Shackle
Featured in these Case Studies
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
WTSSHK-B Wireless Crosby™ Bow Load Shackle
Wireless Load Shackle
26.5K and 265K lbf
12 to 120 MT

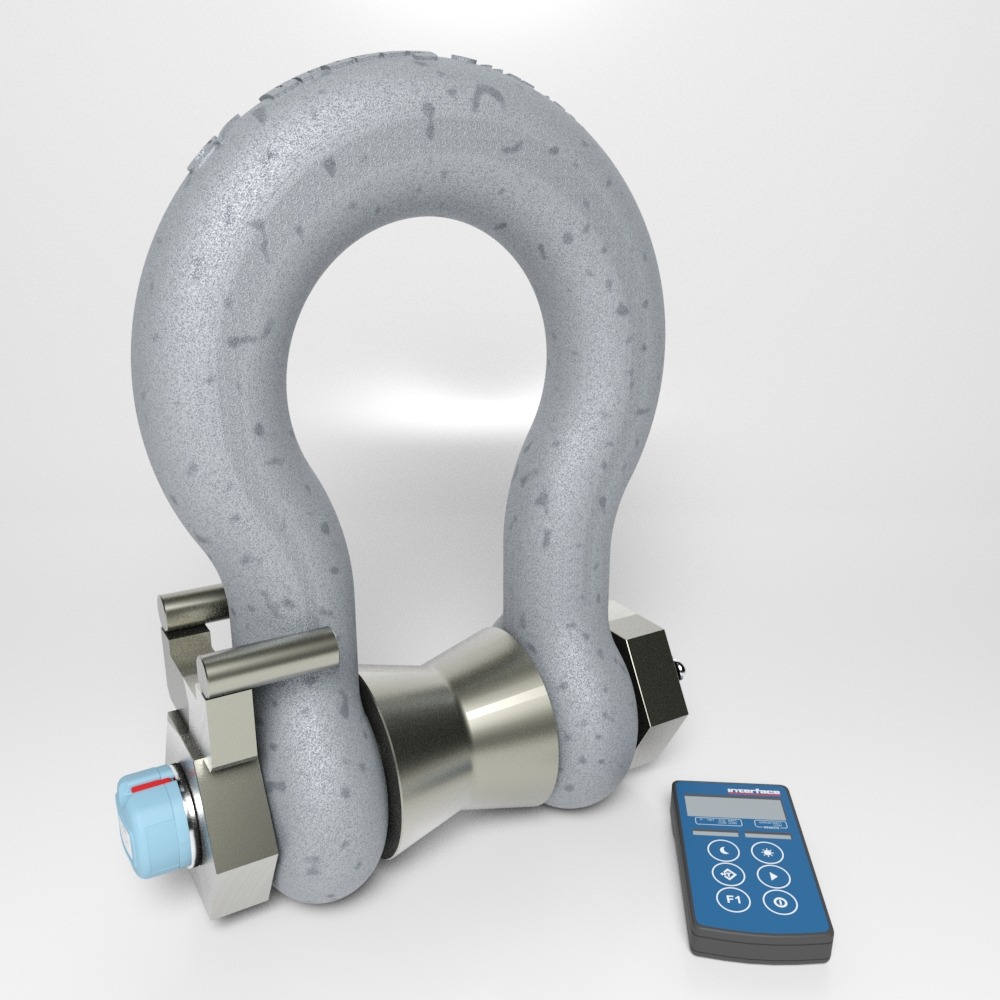

WTSSHK-B Wireless Crosby™ Bow Load Shackle of telemetry load shackles are manufactured using the Crosby™ G2130 (12 to 15 MT / 26.5K and 33.1K lbf) and G2140 (40 to 120 MT / 88.2K to 265K lbf) shackles. Suitable for use in a wide range of industrial and marine weighing applications, these load shackles are robust, reliable and easy to install.
The unique telemetry housing is manufactured from tough high performance polyamide resin making it strong yet light, resulting in a better balanced load shackle when compared to others available on the market. Two clips enable you to open the housing to access and change the two AAA batteries, while the internal electronics underneath remain completely sealed. This includes the antenna to ensure maximum protection from damage. The built in radio telemetry electronics operates on the 2.4GHz license free frequency.
The WTSSHK-B can be supplied as standard with a handheld battery powered display which can toggle between MT or lbs, or alternatively, for multi-shackle applications. A single display can address up to 12 shackles for individual monitoring, or for summation/ weighing applications.
Interface can also supply more complex telemetry systems. For further information on what we can offer, please contact our technical department with details of your application requirements.
Product Downloads
- Data Sheet
- WTS Brochure
- Manual
- WTSSHK-B 12MT STP File
- WTSSHK-B 17MT STP File
- WTSSHK-B 25MT STP File
- WTSSHK-B 40MT STP File
- WTSSHK-B 55MT STP File
- WTSSHK-B 80MT STP File
- WTSSHK-B 120MT STP File
- WTSSHK-B 12MT Drawing
- WTSSHK-B 17MT Drawing
- WTSSHK-B 25MT Drawing
- WTSSHK-B 40MT Drawing
- WTSSHK-B 55MT Drawing
- WTSSHK-B 80MT Drawing
- WTSSHK-B 120 MT Drawing
- Weighing Solutions Brochure
- Lifting Solutions Brochure
WTSSHK-B Wireless Crosby™ Bow Load Shackle of telemetry load shackles are manufactured using the Crosby™ G2130 (12 to 15 MT / 26.5K and 33.1K lbf) and G2140 (40 to 120 MT / 88.2K to 265K lbf) shackles. Suitable for use in a wide range of industrial and marine weighing applications, these load shackles are robust, reliable and easy to install.
The unique telemetry housing is manufactured from tough high performance polyamide resin making it strong yet light, resulting in a better balanced load shackle when compared to others available on the market. Two clips enable you to open the housing to access and change the two AAA batteries, while the internal electronics underneath remain completely sealed. This includes the antenna to ensure maximum protection from damage. The built in radio telemetry electronics operates on the 2.4GHz license free frequency.
The WTSSHK-B can be supplied as standard with a handheld battery powered display which can toggle between MT or lbs, or alternatively, for multi-shackle applications. A single display can address up to 12 shackles for individual monitoring, or for summation/ weighing applications.
Interface can also supply more complex telemetry systems. For further information on what we can offer, please contact our technical department with details of your application requirements.
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Additional Information
| Dimensions | 3.00 × 5.70 × 8.30 in |
|---|
Product Video
Features and Benefits
- Ranges from 12 to 120 MT (26.5K and 265K lbf)
- Environmentally sealed to IP67
- Simple installation and operation
- Shackle and load pin fully certified
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Additional Information
| Dimensions | 3.00 × 5.70 × 8.30 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model CB-ISHKB-12MT Centralizing Bobbin for the WTSSHK-B Wireless Crosby™ Bow Load Shackle 12 Metric Ton Capacity | CB-ISHKB-12MT | $75.00 |
| Model CB-ISHKB-17MT Centralizing Bobbin for the WTSSHK-B Wireless Crosby™ Bow Load Shackle 17 Metric Ton Capacity | CB-ISHKB-17MT | $85.00 |
| Model CB-ISHKB-25MT Centralizing Bobbin for the WTSSHK-B Wireless Crosby™ Bow Load Shackle 25 Metric Ton Capacity | CB-ISHKB-25MT | $125.00 |
| Model CB-ISHKB-40MT Centralizing Bobbin for the WTSSHK-B Wireless Crosby™ Bow Load Shackle 40 Metric Ton Capacity | CB-ISHKB-40MT | $125.00 |
| Model CB-ISHKB-55MT Centralizing Bobbin for the WTSSHK-B Wireless Crosby™ Bow Load Shackle 55 Metric Ton Capacity | CB-ISHKB-55MT | $125.00 |
| Model CB-ISHKB-85MT Centralizing Bobbin for the WTSSHK-B Wireless Crosby™ Bow Load Shackle 85 Metric Ton Capacity | CB-ISHKB-85MT | $235.00 |
| Model WTSSHK-B Wireless Crosby™ Bow Load Shackle 120 MT Capacity | WTSSHK-B-120MT | $5,610.00 |
| Model WTSSHK-B Wireless Crosby™ Bow Load Shackle 12 MT Capacity | WTSSHK-B-12MT | $1,560.00 |
| Model WTSSHK-B Wireless Crosby™ Bow Load Shackle 25 MT Capacity | WTSSHK-B-25MT | $1,935.00 |
| Model WTSSHK-B Wireless Crosby™ Bow Load Shackle 85 MT Capacity | WTSSHK-B-85MT | $4,330.00 |
| Model WTSSHK-B Wireless Crosby Bow Load Shackle 17 MT Capacity | WTSSHK-B-17MT | $1,700.00 |
| Model WTSSHK-B Wireless Crosby Bow Load Shackle 40 MT Capacity | WTSSHK-B-40MT | $2,695.00 |
| Model WTSSHK-B Wireless Crosby Bow Load Shackle 55 MT Capacity | WTSSHK-B-55MT | $2,695.00 |
×
![]()
